Intellinet 503365 User Manual

Soho network ip camera
Hide thumbs Also See for 503365:
Table of Contents

Advertisement

Quick Links

Download this manual

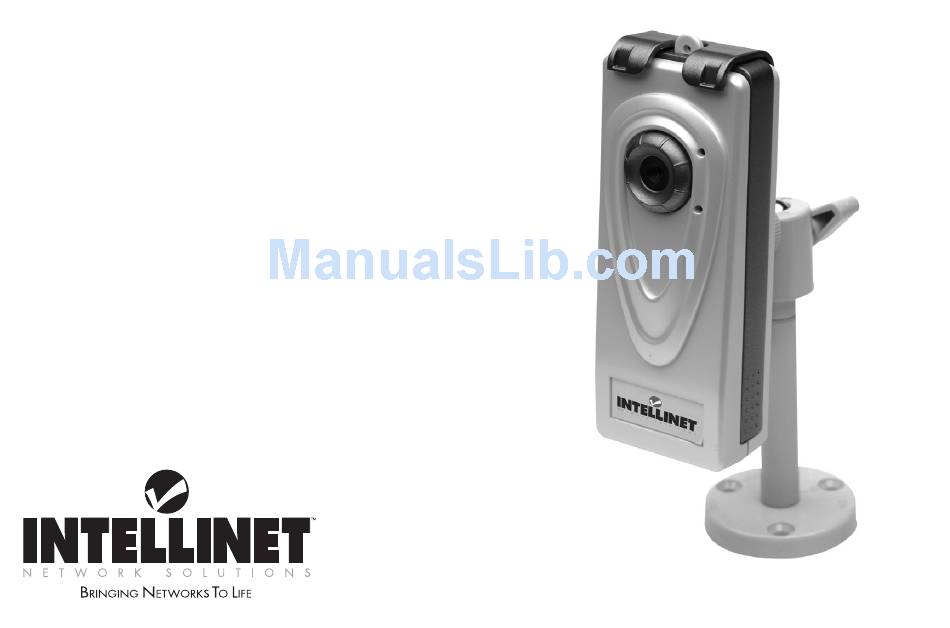

SOHO NETWORK
IP CAMERA

USER MANUAL

MODEL 503365
INT-503365-UM-0407-02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 503365 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Intellinet 503365

Summary of Contents for Intellinet 503365

  • Page 1: User Manual

    SOHO NETWORK IP CAMERA USER MANUAL MODEL 503365 INT-503365-UM-0407-02...

  • Page 2: Table Of Contents

    CONTENTS section page 1. Introduction ......... 1 View 4 Cameras Simultaneously ..43 2. Package Contents ....... 2 Viewer Utility Setting ....... 44 3. System Requirements ......2 7.8.1 Setting ......... 45 4. Hardware Installation ......3 7.8.2 Recording ........47 LED and Focusing ......3 7.8.3 Status ..........

  • Page 3: Introduction

    1. INTRODUCTION Thank you for choosing the INTELLINET NETWORK SOLUTIONS SOHO Network IP Camera. This Camera sends live video through the Internet to a web browser or camera viewer anywhere in the world! This compact, self-contained unit lets you keep an eye on your home, your kids, and your workplace —...

  • Page 4: Package Contents

    2. PACKAGE CONTENTS • One SOHO Network IP Camera • CD with software & user manual • Camera mounting bracket & stand • Power adapter • Network cable (3 ft./900 mm) If Any Of The Above Items Are Missing, Please Contact Your Supplier. 3.

  • Page 5: Hardware Installation

    4. HARDWARE INSTALLATION 4.1 LED AND FOCUSING The SOHO Network IP Camera head and its focus ring allow you to modify the aim and focus of the Camera. To adjust the Camera’s focus, rotate the dark focus ring. There are two LEDs indicating the Camera status. Monitoring: When someone is viewing the Camera, the green LED will light.

  • Page 6: Camera Ports

    4.2 CAMERA PORTS The Camera features two ports and a Reset button. Power: The Power port is where you will connect the power adapter. LAN: The LAN port is where you will connect the Ethernet network cable. Reset: The Reset button is what you will press if you need to reset the Camera to factory default settings.

  • Page 7: Installation Procedure

    INSTALLATION PROCEDURE 1. Unpack the SOHO Network IP Camera package and verify that all the items listed in the Chapter 2 are provided. 2. Connect the Camera to your network by attaching the network cable from the switch/router to the LAN port of the Camera. 3.
  • Page 8 2. The Install Wizard will show four selections. Select the program you want to install or click “Exit” to install the program later. The following installation steps are part of “Install Administrator Utility & Camera Viewer”. B&W Screen Captures SOFTWARE INSTALLATION...
  • Page 9 3. The system will start the installation procedures automatically. Click “Next” to continue installation. SOFTWARE INSTALLATION...
  • Page 10 4. If you wish to install the software program in an alternate location, click “Change”; otherwise click “Next” to move on to the next step. B&W Screen Captures SOFTWARE INSTALLATION...
  • Page 11 5. Click “Install” to start installing the program. SOFTWARE INSTALLATION...
  • Page 12 6. The system will install the program automatically. B&W Screen Captures SOFTWARE INSTALLATION...
  • Page 13 7 . Click “Finish” to complete the software installation. SOFTWARE INSTALLATION...
  • Page 14 8. When the installation is completed. The system will auto run the ”Administrator Utility“. On the Network IP Camera first page, the Cameras found in the network are listed in the left window. Choose the one you want to configure and click “Setting Wizard” to proceed. “N” means the Camera is new and not configured.
  • Page 15 9. Please enter the default password “1234” and click “OK” to log in to the IP setup page. SOFTWARE INSTALLATION...
  • Page 16 10. The SOHO Network IP Camera operates through the network (TCP/IP Protocol). The IP address setting must be correct, or you will not be able to access the Camera. The wizard program will detect the IP address status of your network automatically and suggest a free IP address for the Camera.
  • Page 17 11. This wizard will pop up a window to ask you if you want to run the “Camera Viewer” and see the video of the Camera immediately. Select “OK” to run “Camera Viewer”. SOFTWARE INSTALLATION...
  • Page 18 12. The “Camera Viewer” will show the video automatically. Congratulations, you can now use the Camera through the network to view the video. B&W Screen Captures SOFTWARE INSTALLATION...

  • Page 19: Using The Administrator Utility

    6. USING THE ADMINISTRATOR UTILITY The Administrator Utility allows users to search and setup the Cameras located within the Intranet or on the Internet. From the utility, users can view all the information of the selected Camera; furthermore, it provides a setting wizard to add the Camera to the network easily and promptly.
  • Page 20 Once the utility is started, it will search all the Cameras within the network. To view additional settings, please refer to the description in the following sections. USING THE ADMINISTRATOR UTILITY...

  • Page 21: General Setting

    6.1 GENERAL SETTING USING THE ADMINISTRATOR UTILITY...

  • Page 22: Camera Information

    Auto Discover Clicking this button will search for the Camera within the network automatically. Camera List The list shows the Camera name and the setup status of the Camera. means the Camera is in the default setting. means the Camera is configured before. INTERNET Clicking the “Add”...

  • Page 23: Detail Setting

    6.2 DETAIL SETTING When you click the “Detail Setting”, a screen will pop up for you to enter the “Administrator Name” and “Password”. The default value is as follows: Name: “admin” Password: “1234” If the name and password you enter are correct, you can start to setup the Camera. USING THE ADMINISTRATOR UTILITY...
  • Page 24 NETWORK SETTING Network IP Camera Name The default camera name is “IPCamera_MJPEG”. It is recommended to change to a meaningful name for the Camera. IP Address Enter an unused IP Address within the IP address range used on your LAN. If the IP Address of your LAN is from the 192.168.2.1 to 192.168.2.254, you can set an unused IP Address from the range for the Camera, for example: 192.168.2.250.
  • Page 25 USING THE ADMINISTRATOR UTILITY...
  • Page 26 E-MAIL SETTING E-mail Account This Camera supports “Snap Shot” function. You can take a still image and send the picture by E-Mail. Enter the E-Mail Account for receiving the picture. SMTP Server Enter the SMTP Server for the E-Mail account. USING THE ADMINISTRATOR UTILITY...
  • Page 27 RESOLUTION Resolution Select the desired video resolution format. Larger resolution requires more bandwidth. 640 x 480 is “VGA” format. 320 x 240 is “CIF” format. USING THE ADMINISTRATOR UTILITY...

  • Page 28: Advanced Setting

    ADVANCED SETTING UPnP When the UPnP function is enabled, the Camera can be detected by UPnP compliant systems such as Windows XP. The Camera will be displayed in the Neighborhood of Windows XP, so you can directly click the Camera to view the video through a web browser.
  • Page 29 USING THE ADMINISTRATOR UTILITY...
  • Page 30 PASSWORD Current Password Enter the current password of the Camera. New Password Enter the new password you want to use for the Camera. New Password Retype the new password to confirm the setting. USING THE ADMINISTRATOR UTILITY...
  • Page 31 RESOLUTION Firmware Version Displays current firmware version. Firmware Update Click “Firmware Update” to update new firmware for the Camera. This may take a few minutes. Reset to Default If you want to reset the Camera, click this button. The default settings of the Camera are as follows. Camera Name: “IPCamera_MJPEG”, IP Address: “192.168.2.3”, Subnet Mask: 255.255.255.0, Administrator Name: “Admin”, Password: “1234”, Video Port: “4321”, Web Port: “80”...

  • Page 32: Setting Wizard

    6.3 SETTING WIZARD When you click the “Setting Wizard”, a screen will pop up for you to enter the “Administrator Name” and “Password”. The default value is as follows: Name: “Admin” Password: “1234” If the name and password you enter are correct, you can start to setup the Camera. USING THE ADMINISTRATOR UTILITY...
  • Page 33 USING THE ADMINISTRATOR UTILITY...
  • Page 34 NETWORK SETTING Network IP Camera Name The default camera name is “IPCamera_MJPEG”. It is recommended to change to a meaningful name for the Camera. IP Address The wizard will auto setup an available IP Address to the Camera. For example: if the IP address of the network is 192.168.2.x, the wizard will search an unused IP Address from 192.168.2.0 to 192.168.2.250 and assign the Camera an available IP Address.
  • Page 35 When you finish the Camera setting, you can click “OK” to run the “Camera Viewer” immediately or click “Cancel” to run the “Camera Viewer” later. USING THE ADMINISTRATOR UTILITY...

  • Page 36: Using The Camera Viewer

    7. USING THE CAMERA VIEWER The Camera Viewer Utility allows users to view video from up to four cameras. It also allows users to manual/schedule record video and playback the recording file. The status of camera viewing such as frame rate, video received, and etc. are also recorded in time. There are three ways to run the Camera Viewer Utility: 1.

  • Page 37: Panel Introduction

    7.1 PANEL INTRODUCTION In the beginning when you start the Camera Viewer, you would see a Control Panel and a four division Viewer window. USING THE CAMERA VIEWER...

  • Page 38: Camera Buttons

    7.2 CAMERA BUTTONS Clicking one of the four camera buttons will connect you to the Camera that you want to view and configure. If you want to remove the Camera from the viewer, please right click the icon and select “Cancel Camera x”.

  • Page 39: Camera Status

    7.3 CAMERA STATUS There is a status bar showing different color to indicate the status of each SOHO Network IP Camera. CAMERA STATUS Yellow No camera set to connect. Blue Camera is connected and playing the live video. Pink Camera is not connected. Camera is recording.

  • Page 40: Control Buttons

    7.4 CONTROL BUTTONS Snapshot Pause Close Camera Viewer Minimize Window Stop Record Forward Play USING THE CAMERA VIEWER...
  • Page 41 CONTROL BUTTONS Play The “Play” button is an intelligent play user-interface. In the normal display mode with the SOHO Network IP Camera disconnected, clicking on “Play” will connect the viewer to the Camera. In the playback mode, clicking on “Play” will play the video in the normal speed. Stop The “Stop”...

  • Page 42: Video Recording

    7.5 VIDEO RECORDING This utility allows you to record the video in AVI format files. There are two ways of video recording – Manual Recording and Schedule Recording. USING THE CAMERA VIEWER...
  • Page 43 Manual Recording: You can manually record the video stream to an assigned video file. Click “Record”, and the “Record to Disk” window will pop up. Assign the path and file name and click “Save”, then the viewer utility will start to record the video stream. If you want to stop recording, click “Stop”. Note: Before manual recording, you need to click the Camera button to select the SOHO Network IP Camera that you want to record first and make sure that the viewer is successfully connected to the SOHO Network IP Camera.

  • Page 44: Change Resolution

    7.6 CHANGE RESOLUTION The SOHO Network IP Camera supports two levels of resolution, 640x480 (VGA) and 320x240 (CIF). You can change the resolution of each Camera by clicking the “Resolution” button. Note: Before changing the resolution of the Camera, you have to select the Camera by clicking the “Camera”...

  • Page 45: View 4 Cameras Simultaneously

    7.7 VIEW FOUR CAMERAS SIMULTANEOUSLY By clicking on the four-division button to view 4 cameras simultaneously in a four-division window. Four-division Button USING THE CAMERA VIEWER...

  • Page 46: Viewer Utility Setting

    7.8 VIEWER SETTING UTILITY Click “Setting” , in order for the setting window of the Network IP Camera to pop up. Note: When you want to change settings such as IP Address, Video Port, etc. in the “Setting” option, you must disconnect the Network IP Camera first by clicking “Stop”. Setting Button USING THE CAMERA VIEWER...

  • Page 47: Setting

    7.8.1 SETTING USING THE CAMERA VIEWER...
  • Page 48 7.8.1 SETTING Name It is not required to fill in the Camera name in order to connect camera. It is for users to identify the Camera. IP Address IP address/Domain name of the Camera. Video Port The number of service port used by the Camera. Model Select “MJPEG Camera”...

  • Page 49: Recording

    7.8.2 RECORDING You can setup a schedule for recording here. This utility will record the video stream in the as- signed file folder according to the schedule automatically. The recorded video files are AVI format. Note: 1. The utility will only start to record the video stream when this utility is running and is success- fully connected to the Network IP Camera at the beginning of the recording schedule.
  • Page 50 One-Time Schedule Weekly Schedule USING THE CAMERA VIEWER...
  • Page 51 7.8.2 RECORDING Cycle Recording Select this item to enable cycle recording. When the Cycle Recording is enabled and the storage usage has already reached the maximum reserved storage space, the utility will automatically delete the oldest recorded video file and use the space to store the newly recorded video stream.

  • Page 52: Status

    7.8.3 STATUS View the current status information of the connection session between the utility and the SOHO Network IP Camera. USING THE CAMERA VIEWER...
  • Page 53 7.8.3 STATUS Connected Displays “Yes” when the utility is connected to the Network IP Camera and displays “No” when the utility is not connected to the Network IP Camera. Stream Started At The beginning time of the current connection session between the utility and the Network IP Camera.

  • Page 54: General

    7.8.4 GENERAL Manage storage usage for the SOHO Network IP Camera here. USING THE CAMERA VIEWER...
  • Page 55 7.8.4 GENERAL Snap Shot Directory This lets you assign the directory where bitmap files will be stored when you click “Snapshot” to take pictures. The default folder is where the software program is installed, for example: “C:\Program Files\Network IP Camera”. Record Directory This lets you assign the directory where the recorded video files will be stored. The default folder is where the software program is installed, for example: “C:\Program Files\Network IP Camera”.

  • Page 56: Playback

    7.9 PLAYBACK Click “Open File” and a “Load File” window will pop up. Select the file that you want to play. USING THE CAMERA VIEWER...
  • Page 57 The viewer will start to play the selected video file. USING THE CAMERA VIEWER...
  • Page 58 PLAYING CONTROL Play When the video playback is in Stop state, click “Play” and the viewer will play the video file from the beginning point. When the video playback is in Pause state, click “Play” and the viewer will play the video file from the current pause point.

  • Page 59: Rotate Video

    7.10 ROTATE VIDEO The "Rotate" function lets you rotate the video frame 90˚ counterclockwise each time you click the “Rotate” button . With this function, you can view the live video at normal, 90˚, 180˚ and 270˚ angles counterclockwise. Below is the video with 90˚ counterclockwise rotation. Rotate Button USING THE CAMERA VIEWER...

  • Page 60: Web Connection And Setup

    8. WEB CONNECTION AND SETUP You can use the Web browser to connect to the Camera for viewing or setting. Open the web browser and enter the IP Address of the Camera to establish a connection. The default IP Address of the Camera is “192.168.2.3”. When the welcome screen appears, enter the “User Name”...
  • Page 61 When the Camera is connected, the video image will be shown on the web screen directly. The menu options for the web control screen are as follows. Camera Setting – View live video and adjust the video format from the menu. Network Setting –...

  • Page 62: Camera Setting

    8.1 CAMERA SETTING Click “Open File” and a “Load File” window will pop up. Select the file that you want to play. WEB CONNECTION AND SETUP...
  • Page 63 8.1 CAMERA SETTING Digital Zoom Allows you to zoom in or zoom out. Click “x2” and the image size in the display area will be magnified twice the original size. In 640x480 resolution, only the central area of the screen will be magnified twice. Click “x1”and the image size in the display area will return to the original size.

  • Page 64: Network Setting

    8.2 NETWORK SETTING CHANGE ADMIN PASSWORD Current Password Enter current password. New Password Specify the new password you want to change to. Confirm Password Enter the new password again for confirmation. Apply When you finish the “Change Admin Password”, click “Apply”. E-MAIL SETTING E-mail Address Set up the E-Mail account as the receiver for snapshot pictures.
  • Page 65 IP INFORMATION IP Address Enter an unused IP Address within the IP address range used on your LAN. If the IP Address of your LAN is from the 192.168.2.0 to 192.168.2.250, you can set an unused IP Address within that range for the Camera, for example: 192.168.2.250. Subnet Mask The Subnet Mask field must match the subnet setting on your LAN.

  • Page 66: Ddns Service

    DDNS SERVICE Enable/Disable Enable or disable DDNS function of the Camera. Provider Several companies provide DDNS service. This camera supports the service provided by DynDNS. Domain Name The domain name given by DynDNS is “registername.dyndns.com”. Enter the domain name that you register the Camera with the DynDNS web site. Account Enter the login name for the DDNS service.

  • Page 67: Password Setting

    8.3 PASSWORD SETTING The “Password Setting” allows the addition of up to four user accounts to view video from Camera Viewer and Web Management. These users, unlike the Administrator, are not allowed to configure the Camera. USER 1/2/3/4 User Name Up to four sets of user names and passwords can be added. Enter the user name to be the login name to the Camera.

  • Page 68: Frequently Asked Questions

    9. FREQUENTLY ASKED QUESTIONS Q1: What is a Network IP Camera? A: A Network IP Camera is a standalone system connecting directly to an Ethernet or Fast Ethernet network. It is different from a conventional PC or Web Camera; the Network IP Camera is an all-in-one system with built-in CPU and web-based solution providing a low cost product that can transmit high quality video images for monitoring.
  • Page 69 Q4: What network cabling is required for the Network IP Camera? A: The Network IP Camera uses Category 5 UTP Twisted-pair cable allowing 10 Base-T and 100 Base-T networking. Q5: Can the Network IP Camera be setup as a PC-cam on the computer? A: No, the Network IP Camera operates only on Ethernet and Fast Ethernet networks. Q6: C an the Network IP Camera be connected to the network if it consists of only private IP Addresses? A: Yes, the Network IP Camera can be connected to a LAN with private IP Addresses. Q7: The focus on the Network IP Camera is bad, how can I correct it? A: Adjust the Network IP Camera focus manually.

  • Page 70: Technical Specifications

    10. TECHNICAL SPECIFICATIONS General • Video: Digital 24-bit Color • Includes Easy-to-Use Viewer & Recorder Utility; View Up to 4 Cameras Simultaneously • Provides Admin Utility & Web Browser Management • Manual/Schedule Record, Video Playback/Stop/Forward/Pause • Supports four additional user accounts for viewing camera •...
  • Page 71 LEDs • LED Indicators: Monitoring LED (Green), Ready LED (Amber) Hardware • CPU & DSP: RISC & JPEG • 2 MB Flash Memory • 16 MB SDRAM • Power Supply: 5 V DC , 1.0 A Image Sensor & Lens • Maximum resolution: 640 x 480 Pixels •...

  • Page 72: Router/Gateway Setup For Internet Viewing

    APPENDIx A ROUTER/GATEWAY SETUP FOR INTERNET VIEWING To view the SOHO Network IP Camera across the Internet, the Router/Gateway must be configured to pass incoming TCP/UDP connections from the remote PC to the Camera. The Router/Gateway should be set for port forwarding or virtual server for the connections. Please see the illustration below.
  • Page 73 PORT DEFINITION Setup 1 Web port. Configure the protocol to “TCP”. Setup 2 Video port. Configure the protocol to “TCP”. Setup 3 SOHO Network IP Camera and Administrator Utility communication. The protocol setting must be “UDP”. Setup 4 SOHO Network IP Camera and Camera Viewer Utility communication. The protocol setting must be “UDP”.

  • Page 74: Viewing Via Upnp In Windows Xp

    APPENDIx B VIEWING VIA UPNP IN WINDOWS XP When the UPnP function is enabled, the SOHO Network IP Camera can be detected by a UPnP compliant systems such as Windows XP. The camera will be displayed in the Neighborhood of Windows XP, so you can directly double click the Camera or right click the Camera and select “Invoke”...
  • Page 75 APPENDIX B...
  • Page 76 Enable UPnP in Windows XP SP2 If you can’t find the Camera in the Neighborhood of Windows XP SP2 or you have seen the following message when you double click the Camera, check to see if UPnP function is being blocked by the firewall. If this is the case, then please follow the steps below to enable it: APPENDIX B...
  • Page 77 1. Go to “Start\Settings\Network Connections”. 2. Right click “Local Area Connection” and select “Properties”. 3. In the “Local Area Connection Properties”, select “Advanced” option menu and click “Settings”. APPENDIX B...
  • Page 78 4. The “Windows Firewall” screen will pop up, select “Exceptions” option menu APPENDIX B...
  • Page 79 5. Enable “UPnP Framework” from the “Programs and Services list” and click “OK”. APPENDIX B...
  • Page 80 Are you completely satisfied with this product? Please contact your INTELLINET NETWORK SOLUTIONS ™ dealer with comments or questions. All products mentioned are trademarks or registered trademarks of their respective owners.
