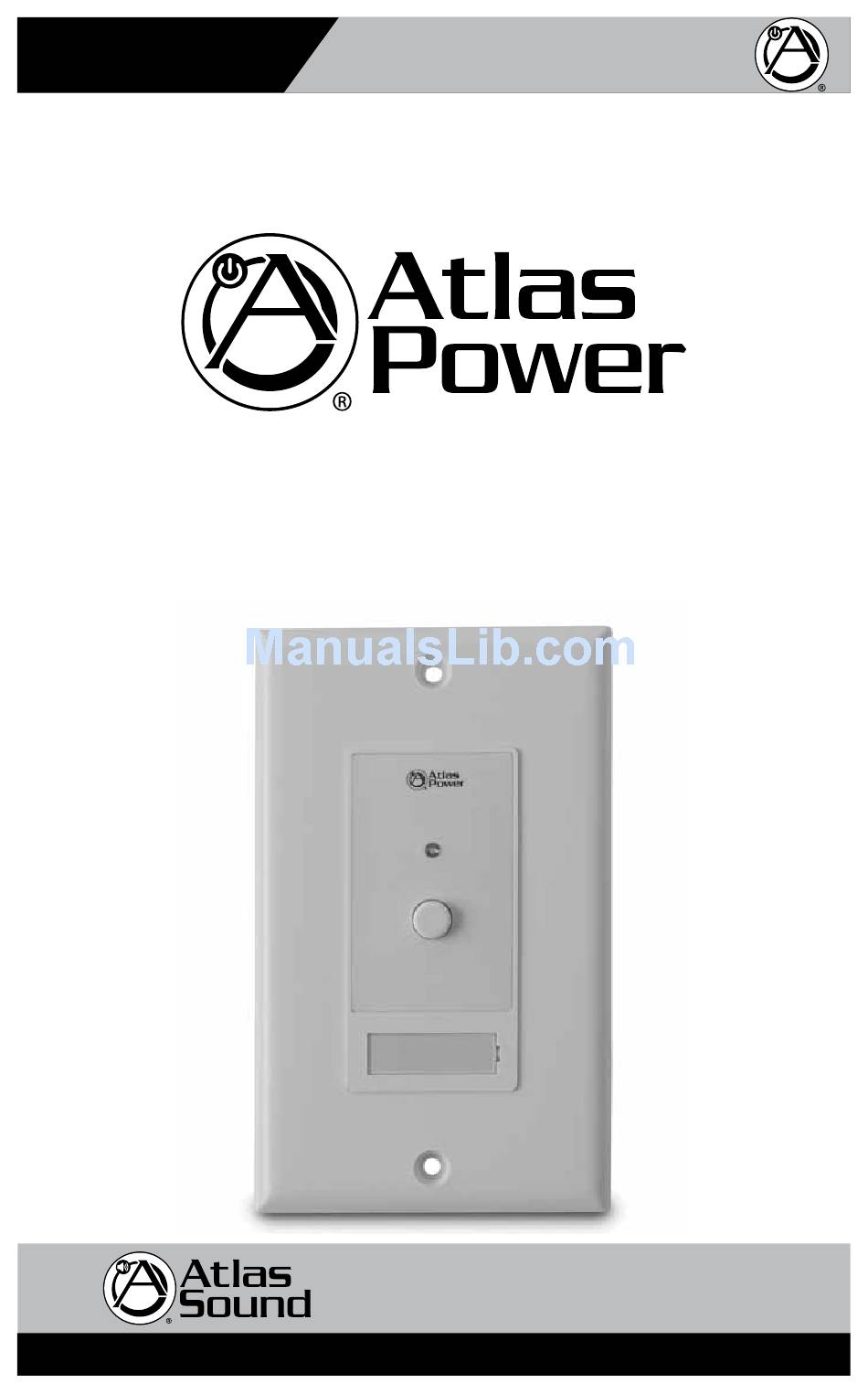

Atlas WPD-SWCC Owner's Manual

Wall plate switch, contact closure with system indicator

WPD-SWCC

Owner's Manual

Wall Plate Switch, Contact Closure

WPD-SWCC

Wall Plate Switch,

Contact Closure with

System Indicator

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

Telephone: 800.876.3333 • Fax: 800.765.3435

– 1 –

AtlasSound.com

Specifications are subject to change without notice.

Table of Contents

Need help?

Do you have a question about the WPD-SWCC and is the answer not in the manual?

Page 1 WPD-SWCC Owner’s Manual Wall Plate Switch, Contact Closure WPD-SWCC Wall Plate Switch, Contact Closure with System Indicator 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 – 1 – AtlasSound.com Specifications are subject to change without notice.
Page 2 Features/Specifications • White Decor Style Plate, ABS Material • Fits a Single Gang Electrical Outlet • Designed for Remote Activation of Atlas Power Products • System Status Indicator (Red) • 4-Conductor Interface Connection • Push Button Switch Type - Hard Latch Contact Closure • Label Guard (Allows for Clean Custom Function Identification)
Page 3 WPD-SWCC Owner’s Manual Wall Plate Switch, Contact Closure Description 1. System Status Indicator - Illuminates Red when status is ON. 2. Push Switch - Hard latching type. 3. Label Guard - Remove plastic cover to insert custom label. 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 – 3 – AtlasSound.com Specifications are subject to change without notice.
Page 4: Limited Warranty
WPD-SWCC Owner’s Manual Wall Plate Switch, Contact Closure Limited Warranty All products manufactured by Atlas Sound are warranted to the original dealer/installer, industrial or commercial purchaser to be free from defects in material and workmanship and to be in compliance with our published specifications, if any. This warranty shall extend from the date of purchase for...
