Atlas "Switch" Whispertouch DWS-8 Specifications

DWS-8 Series

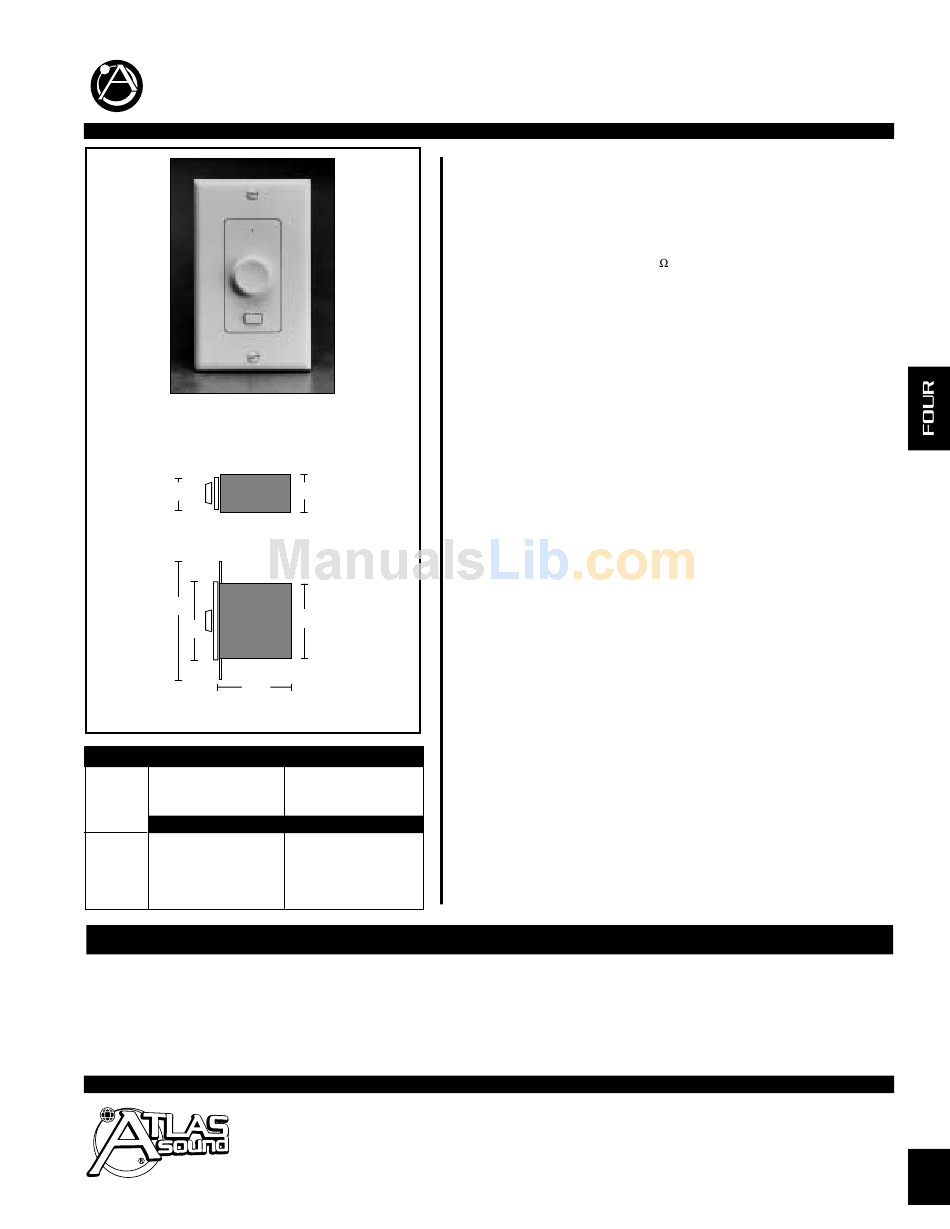

Shown with Decora-style subplate (Supplied)
1 5 ⁄ "
1 6
Top View
4 1 ⁄ "
8
2 5 ⁄ "
8
2 5 ⁄ "
8
Side View

IMPEDANCE JUMPER SETTINGS

MAX. QTY. 8-OHM
REQUIRED
AMPLIFIER LOUDSPEAKER PAIRS
OUTPUT
JUMPER SETTING
IMPEDANCE
@1X @2X @4X @8X @1X @2X @4X @8X
8-Ohm 1 2 4
4-Ohm 2 4 8 16
2-Ohm 4 8 16 32
1-Ohm 8 16 32 64
a
MODEL POWER INSERTION
SERIES* RATING IMP.
DWS-8 50 Watts 8 Ohm
* Suffix model with color: ivory (-I), white (-W)
***Carlon Model B120A or equivalent recommended.
1601 JACK MCKAY BLVD. / ENNIS, TEXAS 75119 U.S.A. / TELEPHONE: (800) 876-3333 / FAX (800) 765-3435
© 2001 Atlas Sound LP
"SWITCHED" WHISPERTOUCH
8-OHM STEREO VOLUME CONTROLS
1 11 ⁄ "
1 6
2 13 ⁄ "
1 6
MAX. QTY.4-OHM
LOUDSPEAKER PAIRS
JUMPER SETTING
a
8 0 1 2 4
1 2 4 8
2 4 8 16
4 8 16 32
FREQUENCY
LOSS RESPONSE STEPS
.5dB 20Hz - 6 @ 3dB
20kHz 3 @ 6dB
(-3dB, +0) 1 @ 9dB
1@ 28dB
72dB Total
(11 Steps Total, plus "off")
Decora® is a registered Trademark of Leviton Corp.
Specifications subject to change without notice
Printed in U.S.A.
®

FEATURES

• Two-Color LED and Pushbutton Switch Provide Visual Indication and
Convenient Access to the Active Sound System
• Pushbutton Switch Shuts Off with the System and Remains Off Until Reselected
• Provides Precision Level Control in 3dB Increments (Lowest 6 Steps)
• 50-Watt, 8-Ohm Rating Achieves Clear, Stereo Music Reproduction
• Impedance-Matching Capability of 2X, 4X & 8X Provides System Design Flexibility
• 1x Setting Allows Use As A Standard 8 Non-Impedance Matching Volume Control
• Low-Profile Styling is Offered with Decora-Style or Standard Plate in Ivory or White

APPLICATION

Top-of-the-line, 8-ohm WhisperTouch DWS Series offers superior styling, fine-tune
level control, and an on/off switch for local audio access control. They are the per-
fect choice for residential/custom installation and professional applications of all
kinds including: homes, medical, legal, and dental offices, studios, and high-profile
businesses that expect clear music reproduction and precise level control.

GENERAL DESCRIPTION

WhisperTouch 8-ohm, switched volume controls provide for clear, distortion-
free stereo music reproduction when one or multiple loudspeaker pairs are
powered by a single amplifier. Model DWS-8 is an 8-ohm device with a smart
on/off switch, LED status indicator, and a volume-control knob mounted to a
decora-style wall plate.
Frequency response is 20Hz - 20kHz (-3dB, +0). Attenuation is accomplished
in ten steps plus positive off. The first six steps are 3dB for fine tune control at
low listening levels, the next three steps are 6dB, followed by one 9dB step
and finally one 28dB step before "off".
The "switched" WhisperTouch series features an electronic on/off pushbutton
switch that provides access to the active audio system without going to the
main equipment location. It also turns itself off when the system shuts down,
and remains off until re-selected, thereby avoiding the problem of mass audio
distribution at previous system settings. The "switched" WhisperTouch volume
controls also feature a two-color LED that provides remote visual indication of
system availability. It appears "red" when the audio system is on, changing to
"green" when the volume control is activated.
Volume adjustments are made easily with the unique WhisperTouch low-pro-
file knob. Pleasant to the touch, this small knob measures
ects a mere 1 ⁄ " for unobtrusive yet functional operation. The control operates
2
smoothly with fine detents and make-before-break contacts for gradual and
uninterrupted transition of volume levels. High-quality units feature terminal
block conectors for easy hook-up and require a 12 VDC power supply (order
separately). Recommended models include PS-M12 which will power up to 3
units, or PS12-10 which will power up to 12 units. Assemblies measure 2
deep and mount into a 20 cu.in. E.O. Box such as Carlon Model B120A or
equivalent. Specify plate color: suffix (-I) for ivory or (-W) for white.

ARCHITECT AND ENGINEER SPECIFICATIONS

Attenuator for stereo, 8-ohm application shall be Atlas Sound WhisperTouch Model
_______. Attenuation shall be accomplished in ten steps with a positive off position.
The first six steps shall be 3dB, the next three steps shall be 6dB, followed by one
9dB step and one 28dB step for a total attenuation of 73dB. Insertion loss shall be
no greater than .5dB. Unit shall mount to a standard 20 cu. in. E.O. box. The wall
plate shall be decora-style, finished in ______ (ivory or white) with a matching
low-profile knob. 12 VDC power supply is required; specify Model __________
(PS12-10: powers up to 12 units, or PS-M12: powers up to 3 units ).
PLATE
TYPE STYLE
Stereo Decora**
Switched 1 5 ⁄ " x 2 5 ⁄ "
1 6 8
PS-M12 (200 mA) Powers up to 3 Units or
PS12-10 (1 Amp) Powers up to 12 Units
000801
15 ⁄ " Dia. and proj-
1 6
REQUIRES
(ORDER SEPARATELY)
12-18 Gauge Wire &
20 cu. in. E.O. Box (by others***)
PN 389525
DWS-8
⁄ "
3
4
WEIGHT
1 lb
(.45 Kg)
267
SL4-1571
