21-1855.fm Page 1 Friday, June 9, 2000 10:16 AM

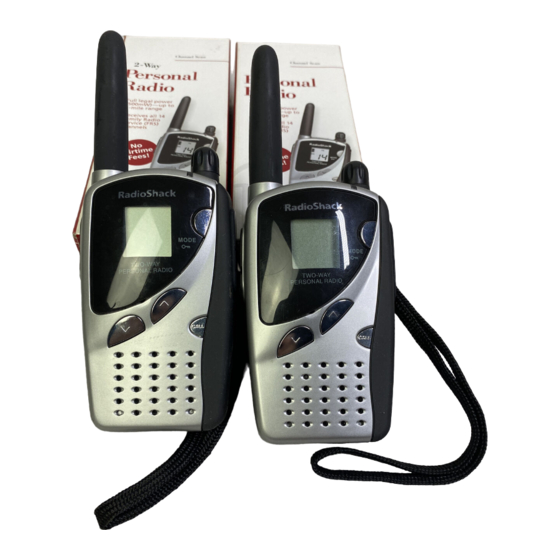

14 Channel Personal FRS 2-Way Radio
RadioShack welcomes you to the next generation of per-
sonal communication — the Family Radio Service (FRS).
FRS is a new license-free, two-way, short-range voice ra-
dio service that lets families and groups keep in touch with
each other on specific reserved channels.
Your RadioShack 14 Channel Personal FRS 2-Way Radio
is a lightweight, palm-sized radio that you can carry almost
everywhere and use to talk with another person who has a
FRS radio set to the same frequency as your radio.
Your radio has auto-squelch, which means you will not
hear anything on a channel unless someone is transmit-
ting nearby on the same channel. You can turn off auto-
squelch to hear weaker, distant transmissions.
Your radio has last channel memory retention. It automati-
cally resumes on the last channel you monitored when you
turn on the radio.
You can connect an optional speaker/microphone and
earphone (neither supplied, available at your local Ra-
dioShack store) to the radio.
Your radio's other features include:
14 Channels — provide clear communications for up to
two miles.
4 User-Selectable Call Signals — lets you select the
alert tone.
Channel Scan — can be used to find other FRS users.
OWNER'S MANUAL — Please read before using this equipment.

A QUICK LOOK AT YOUR RADIO

PTT
(Push To Talk)
MON
(Monitor)

INSTALLING BATTERIES

Your radio requires three AA alkaline or rechargeable bat-
teries for power. For the best performance and longest life,
we recommend RadioShack batteries.
Cautions:
• Use only fresh batteries of the required size and rec-
ommended type.
• Do not mix old and new batteries, different types of
batteries (alkaline or rechargeable), or rechargeable
batteries of different capacities.
Follow these steps to install batteries.
1. Rotate
VOL/OFF
radio, then slide off the battery compartment cover.
2. Slide
CHARGE OFF/ON
ment to
(for alkaline batteries) or
OFF
Ni-MH rechargeable batteries).
©
2000 Tandy Corporation.
All Rights Reserved.
RadioShack and RadioShack.com are trademarks used by Tandy Corporation.
VOL/OFF
fully counterclockwise to turn off the
inside the battery compart-
(for Ni-Cd or
ON
MODE
CALL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 210-1855 and is the answer not in the manual?

Questions and answers

Jack Jones
March 14, 2025

What is the range for vintage radio shack two-way radio

User image 67d4bcc0831ff
1 comments:
Mr. Anderson
March 14, 2025

The frequency range of the RadioShack 210-1855 two-way radio is 462.5625 – 467.7125 MHz. However, the document does not specify the communication range in terms of distance.

This answer is automatically generated

Subscribe to Our Youtube Channel

Summary of Contents for Radio Shack 210-1855

  • Page 1: A Quick Look At Your Radio

    OWNER’S MANUAL — Please read before using this equipment. A QUICK LOOK AT YOUR RADIO RadioShack welcomes you to the next generation of per- sonal communication — the Family Radio Service (FRS). FRS is a new license-free, two-way, short-range voice ra- dio service that lets families and groups keep in touch with each other on specific reserved channels.
  • Page 2 If you use rechargeable Ni-Cd or Ni-MH batteries, you can natural resources. recharge them in the radio using an optional AC or DC adapter (both available at your local RadioShack store). OPERATION The radio’s DC jack is only for charging Ni-Cd or Ni-MH 1.
  • Page 3: Care And Maintenance

    • moving your radio away from the receiver Using the Belt Clip • calling your local RadioShack store for help If you cannot eliminate the interference, the FCC requires To use the supplied belt clip, insert the clip into the socket that you stop using the radio.
  • Page 4: Specifications

    In the event of a product defect during the warranty period, take the product and the RadioShack sales receipt as proof of purchase date to any RadioShack store. RadioShack will, at its option, un- less otherwise provided by law: (a) correct the defect by product repair without charge for parts and labor;...
