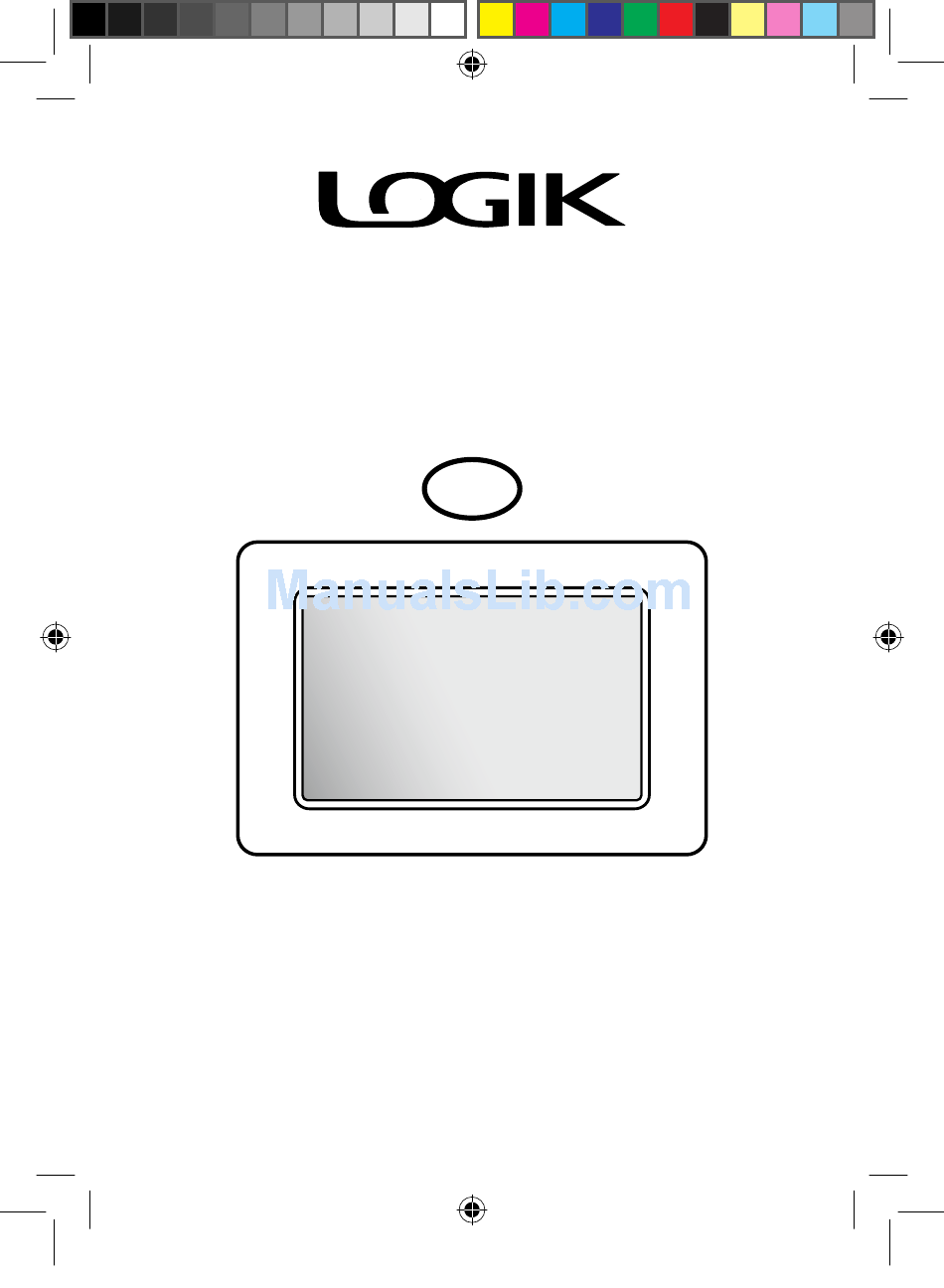

7" Digital Photo Frame with
Interchangeable Frames
PF-A720C/PF-A720CE
GB
User Manual
Thank you for purchasing this Digital Photo Frame. You can play
your favorite JPEG files directly from a memory card or a USB
thumb drive without a computer. With additional interchangeable
frame you can quickly change the frame to fit your mood or match
your room. Read the following instructions for more details.
PF-A720 F9_DSG_change frame-manu1
1
2008/7/17
上午 11:37:
Advertisement
Table of Contents
Related Manuals for Logik PF-A720C
Summary of Contents for Logik PF-A720C
- Page 1 7" Digital Photo Frame with Interchangeable Frames PF-A720C/PF-A720CE User Manual Thank you for purchasing this Digital Photo Frame. You can play your favorite JPEG files directly from a memory card or a USB thumb drive without a computer. With additional interchangeable frame you can quickly change the frame to fit your mood or match your room.
-
Page 2: Saf Et Y Wa R Ning S
Safety Warnings Some DOs and DON’Ts on the safe use of equipment This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured. ************** DO read the operating instructions before you attempt to use the equipment. -
Page 3: Table Of Contents
Table of contents Saf et y Wa r ning s ............... 2 Safety Information ................4 Package Content ............... 4 Product Overview ................5 Preparations ..................6 - Attaching the stand ................6 - Connecting to the power ................6 Changing the Frame ................ -
Page 4: Safety Information
Safety Information • Keep away from water or moisture and dusty areas. • Ambient Temperature is 0~40°C. Never store in hot and very cold areas. • Be carefully to keep it without dropping it or strong impact. • Do not try to open the case alone without technical support. •... -
Page 5: Product Overview
Product Overview DC IN 5V Name Description (Play/Pause)/SEL. button • To start/pause the sildeshow. • To confirm a setting or function. (Stop)/MODE button • To stop playback of slideshow. • To return to the main menu. (Rotate) button • To move up in the menu. •... -
Page 6: Preparations
Preparations Attaching the stand 1. Insert the round end of the stand into the receptacle. 2. Slide the stand to the direction as shown until it is locked tightly in position. N o t e: T h e p h o t o f r a m e c a n b e placed vertically or horizontally for both landscape and portrait display. -
Page 7: Inserting A Memory Card Or Usb Drive
Inserting a Memory Card or USB drive • This frame can only play JPEG format. If playing other formats, please convert the images to readable format for this unit in your computer. Warning: Do not attempt to connect MSD/MMC/MS/xD Slot and CF Type I Slot at the same time, or it will cause the main unit work improperly. -
Page 8: Viewing Photos And Slide Shows
Viewing Photos and Slide Shows • Displaying pictures bigger than 480 x 234 will take longer time for loading. 1. P r e s s L E F T/ R I G H T b u t t o n t o select “Photo”... -
Page 9: Setup Menu
Setup Menu 1. Press MODE button to enter the Setup Menu. 2. Press LEFT/RIGHT button to select “Setup” from the main menu, then press SEL. button. 3. Press UP/DOWN to select an item in OSD menu, and then press RIGHT/UP/ Photo Setup DOWN to select an item from the sub-... -
Page 10: Specifications
Specifications Display 7" Color TFT LCD Panel View Area 480 X 234 pixels, 16:9 ratio Button (6) Left, Right, Down / Brightness, Up / Rotate, Stop, Play/ Pause/Select Brightness Contrast 150:1 Changeble Frame Stand Design Detachable (for Portrait and Landscape) Memory Card Slot SD/ SDHC/ MMC/ MS/ MS Pro/ xD/ CF type I File Format... -
Page 11: Troubleshooting
Troubleshooting No power • Check to make sure the power plug is plugged into the power outlet. • Make sure there is power to the outlet. Unable to view photos on the Digital Photo Frame • Not all JPEG files are compatible. Please open the files in the computer and resave them as JPEG files and try to playback in the device. - Page 12 Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day.Visit www.partmaster.co.uk or call 0870 6001 338 (UK customers only) Calls charged at National Rate.
