- Page 1 NX WSI-box Installation and Operation Manual English...
- Page 2 WSI-box English...
- Page 3 English WSI-box Edition: April 2007...
-
Page 4: Part Specification

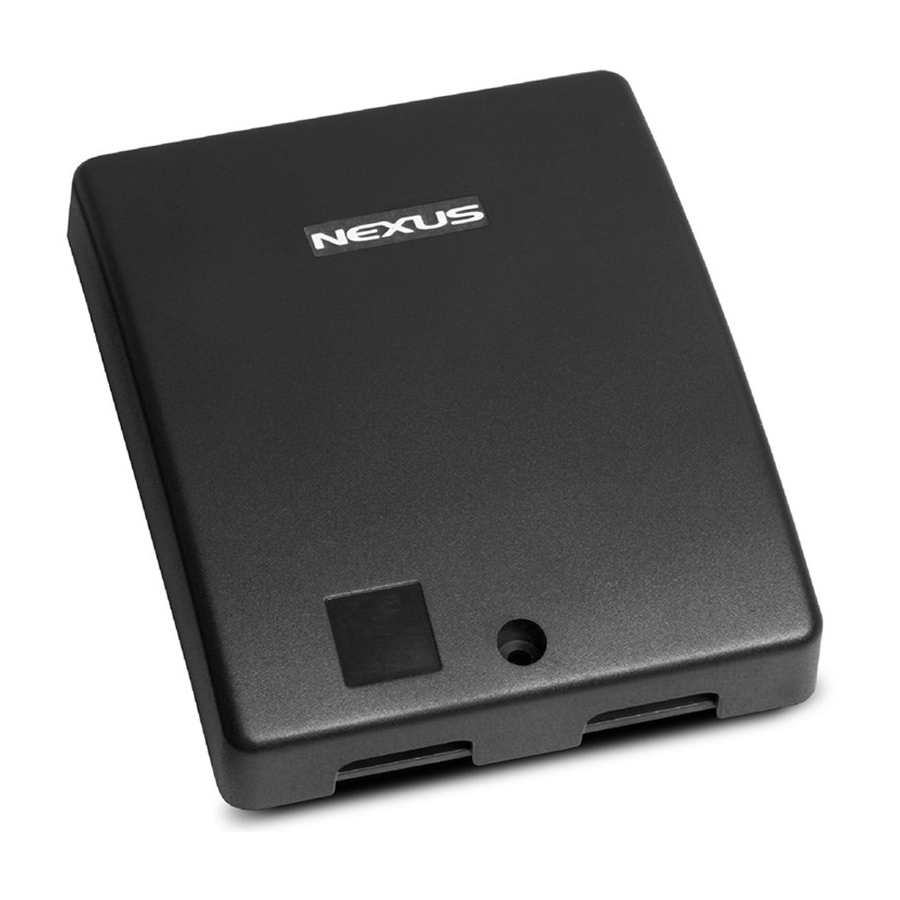

Part specification ___________________________________________________________ Items delivered with the Server Qty. Description Reference Nexus NX WSI-box Power cable, red, 3 m (9 ft ) Power cable, black, 3 m (9 ft WSI-box mounting screws Installation and operational manual Registering this product Once you have checked that you have all the listed parts, please take time to fill in the warranty document and return it to your national distributor. - Page 5 If you are doubtful about the installation, obtain the services of an experienced technician. IMPORTANT, location of the WSI-box Mount the WSI-box on a dry, flat and vertical surface below deck with a minimum distance of 500 mm (20") to a radio receiving unit...
- Page 6 Wind transducer to obtain maximum radio signal. Installing the WSI-box Remove the WSI-box cover from the base plate by removing the screw. Drill the 3 screw holes using a 2.8 mm (0.11") drill. Mount the WSI-box using the 3 mounting screws.
- Page 7 Nexus Network. Red wire to +12V from switch panel Black wire to WSI-box pin 4 (BUZZER). For connections, see next page Connecting instrument lighting The instrument lighting can be controlled from the boats general lighting switch.
- Page 8 WSI-box English Cross reference list for Log and depth transducer and Tri-ducer or Combi transducers Function Sep log and depth Tri-ducer or Combi +12V Battery 0V battery Black Black Light control Users choice Users choice Buzzer Black Black Not used...
-
Page 9: Maintenance And Fault Finding
At least once a year, check all your connections and apply additional silicon paste at each connection point. Fault finding Before you contact your Nexus dealer, and to assist your dealer to give you a better service, please check the following points and make a list of: •... -
Page 10: Specifications
WSI-box English Specifications Technical specifications Dimensions: WSI-box: 110 x 65 x 30 mm. Instrument cable: 8 m (26 ft). Power supply: 12V DC (10-16V). The instruments are polarity protected Power consumption at 12V: WSI-box: 0,2W. Temperature range: Storage:-30°to +80°C (-22°to +176°F) Operation: -10°... - Page 11 English WSI-box Waranty...
- Page 12 WSI-box English...
- Page 13 English WSI-box...
- Page 14 WSI-box English Copyright ©: Nexus Marine AB Copyright ©: Kuskvägen 4, 191 62 Sollentuna, Sweden Silva Sweden AB Tel: +46 -(0) 8 – 506 939 00. Fax: +46 -(0) 8 -506 939 01 Kuskvägen 4, 191 62 Sollentuna, Sweden www.nexusmarine.se Tel: +46 -(0) 8 - 623 43 00.
