Infinity Reference 5010cs Instructions page 3

I
NSTALLATION
FLUSH-MOUNT

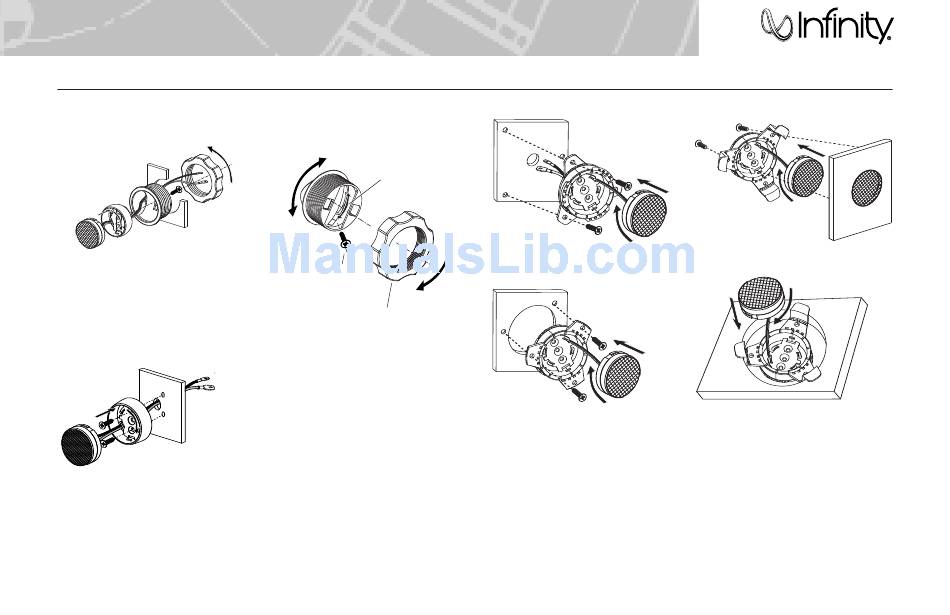

Figure 5A. Mounting the tweeter using the
I-Mount™ (patent no. 5,859,917) flush-mounting kit.
3
1
2
Note: Aim the tweeter at the listening position by
sliding the stud in the groove on the back of the
tweeter cup and rotating the entire assembly in
the mounting surface. Lock the tweeter in place,
using the small retaining screw.
SURFACE-MOUNT
(—) SMALL LUG
Figure 5B. Mounting the tweeter using the
I-Mount surface-mounting kit.
1 BLACK (—)
ATTACH BASE
WITH SCREWS, THEN:
RED (+)
2
3
reference series
TWEETER ANGLE
Figure 6.
3
ROTATE ENTIRE ASSEMBLY
TO AIM ANGLED TWEETER
TOWARD LISTENER.
1
SLIDE SCREW UP OR
DOWN TO ADJUST
TWEETER ANGLE.
2
TIGHTEN SCREW TO
LOCK ANGLE SETTINGS.
4
BLACK (—)
SECURELY TIGHTEN
THE LARGE HAND NUT.
BLACK
Figures 7A through 7D. The Starfish™ tweeter
RED (+)
mount is intended to be used when the tweeter
will be installed behind a factory grille (e.g.,
replacing the factory tweeter behind a door
RED
panel). The Starfish will allow you to mount the
(+) LARGE LUG component tweeter directly to the panel itself or
to the area behind the panel. The six mounting
tabs can be removed easily to create a number
of custom configurations. The tabs of the
Starfish can be screwed or glued to the
mounting surface for secure installation.
Note: Check screw clearance before installing.
Use glue if clearance is an issue.
Note: Not all possible mounting configurations
are shown.
Figure 7A. Behind grille panel.
Figure 7B. Mounted to surface behind
grille panel.
Figure 7C. Mounted to grille panel.
Figure 7D. In-dash location (may require gluing).
