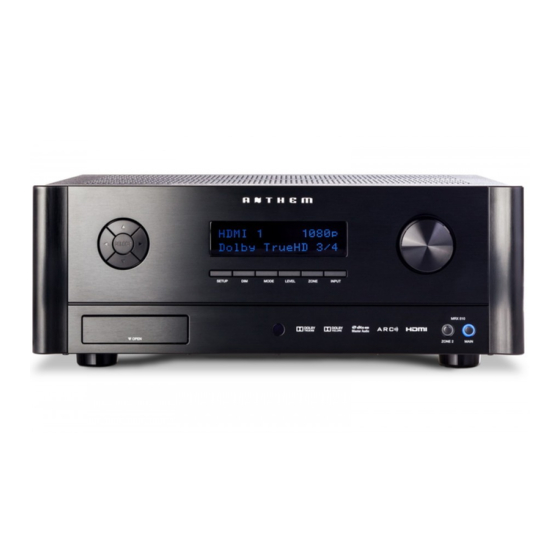

Anthem MRX 710 Operating Manual

Mrx series audio/video receiver
Hide thumbs Also See for MRX 710:
Table of Contents

Advertisement

Quick Links

MRX
710
510
310
/
/
Audio/Video Receiver
O P E R A T I N G M A N U A L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MRX 710 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Anthem MRX 710

Summary of Contents for Anthem MRX 710

  • Page 1 Audio/Video Receiver O P E R A T I N G M A N U A L...
  • Page 2 Anthem, AnthemLogic, ARC, and Paradigm are trademarks or registered trademarks of Paradigm Electronics Inc. © Paradigm Electronics Inc. All rights reserved. The information contained herein may not be reproduced in whole or in part without our express written permission. We reserve the right to change specifications and/or features without notice as design improvements are incorporated.
  • Page 4 Audio/Video Receiver O P E R A T I N G M A N U A L...
  • Page 5 I M P O R T A N T S A F E T Y I N S T R U C T I O N S CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.
  • Page 6 WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Avoid installing this unit where foreign objects may fall onto this unit and/or this unit may be exposed to liquid dripping or splashing. On the top of this unit, do not place: •...
  • Page 7 • Near sources of heat such as heaters. • Highly humid or poorly ventilated. • Dusty. • Subjected to mechanical vibrations. MRX 710 ZONE 2 MAIN • On wobbly, inclined, or otherwise unstable surfaces. • Near windows where there is a chance of exposure Behind 0.2 m (8 in) or more...
  • Page 8 Anthem and any related party assume no liability for the user’s failure to comply with any requirements.

  • Page 9: Table Of Contents

    Level Calibration SPECIFICATIONS Input Setup LIMITED WARRANTY Volumes / Rec Output THE BIG PICTURE: FRONT PANEL (MRX 710) Network / Remote Control THE BIG PICTURE: REAR PANEL (MRX 710) Display THE BIG PICTURE: REAR PANEL (MRX 310) 3.10 General Configuration 3.11 Save / Load Settings...

  • Page 10: Before Making Connections

    In case the unit needs to be transported in the future, keep the packing materials. Retain the invoice that you received from your authorized Anthem dealer at time of purchase – without it, service will not be provided under warranty.

  • Page 11: Front Panel

    FRONT PANEL MRX 710 shown, others are similar. For a larger diagram see inside back cover. MRX 710 ZONE 2 MAIN 1 – Navigation buttons 2 – Display 3 – Volume, level functions, and character selection 4 – Power / standby 5 –...
  • Page 12 1.4 REAR PANEL MRX 710 MRX 710 US model shown. EU model, CN model, and MRX 510 are similar. 1 – FM/AM antenna connections 2 – HDMI inputs (HDMI1 accepts up to 4K resolution) 3 – HDMI outputs with Audio Return Channel 4 –...
  • Page 13 2 – HDMI inputs (HDMI1 accepts up to 4K resolution) 3 – HDMI outputs with Audio Return Channel 4 – AC input 5 – Local area network connection for IP control and Anthem Room Correction 6 – USB jack for software updates 7 – Component video inputs 8 –...
  • Page 14 1.6 REMOTE CONTROL 1 – Main zone power on and standby 2 – Bass, Treble, Balance, Channel Level, Front panel dimmer 3 – Numeric keypad for tuner presets 4 – Input list BASS 5 – Tuner preset 6 – Setup menu TREB LEVEL 7 –...

  • Page 15: Speaker Positioning

    1.7 SPEAKER POSITIONING The illustrations below show typical 5.1 and 7.1-channel speaker placement. Bass response highly depends on room acoustics and experimentation with subwoofer placement is recommended. Anthem Room Correction can help with placement. Channel Channel...

  • Page 16: Connections

    C O N N E C T I O N S This section describes connections between system components. Configuration of input and output will be discussed later, in section 3. 2.1 VIDEO CONNECTIONS HDMI With this type of connection, video and audio are carried together digitally. Maximum video resolution is 4K (also known as UHD and 2160p) at 30 frames per second for HDMI outputs and HDMI input 1, and 1080p at 60 frames per second for the rest of the HDMI inputs.

  • Page 17: 2.2 Audio Connections

    2.2 AUDIO CONNECTIONS AUDIO INPUTS AND OUTPUTS Digital audio sources can be connected with a coaxial, optical, or HDMI cable. These carry 2-channel PCM, Dolby Digital, and DTS. The HDMI inputs also accept up to eight channels of PCM, Dolby Digital TrueHD, DTS-HD, and DTS-HD Master Audio. Audio on the HDMI outputs is 2-channel PCM as this is meant for the TV’s use.
  • Page 18 SPEAKERS Connect using speaker wire. US models also allow banana plugs. MRX 710 510: If you are only using 5.1 speakers in the main zone, the two remaining amp channels may be configured for use in Zone 2, or to bi-amp front L/R in the main zone.

  • Page 19: Antennas

    2.4 LOCAL AREA NETWORK This connection is required for configuring Anthem Room Correction and for using IP control. Connect your router using CAT5 cable or a wireless bridge. In the absence of a network or Ethernet router, ARC may also be used with direct CAT5 connection to personal computer although this requires configuring a static IP address.
  • Page 20 EXAMPLE 1 HDMI IN HDMI IN HDMI OUT HDMI OUT...

  • Page 21: Setup

    This may appear like a lot of work but most settings do not need to be changed from defaults. The important ones relate to your display and input connections, and distance from listening area to each speaker. Anthem Room Correction will set crossovers and channel levels. The rest is preference and the listening mode presets, for example, should be set after you have played various sources and determined which surround modes you like most.

  • Page 22: Hdmi Output Configuration

    3.1 HDMI OUTPUT CONFIGURATION Highlighting HDMI Output Configuration in the main menu then pressing Select displays this menu: HDMI Output Configuration HDMI 1 Color Depth Auto HDMI 2 Color Depth Auto Video Output Auto Video Scaling Processed On-Screen Info Display HDMI COLOR DEPTH With the default Auto setting, color depth is set to the highest capability reported by the display’s HDMI connection.

  • Page 23: Speaker Setup

    BACK AMP (MRX 710/510) This assigns how the sixth and seventh amplifier channels will be used. Main Back is the default and is meant for use with 7.1 speakers in the main zone.
  • Page 24 Using the navigation keys and volume knob each profile can be renamed, up to 8 characters long. When finished, press Select but note that the profile name is best set in Anthem Room Correction (Targets panel) because during file upload the name in the menu is overwritten by the one in ARC.

  • Page 25: Bass Managment

    3.3 BASS MANAGEMENT In this menu, information about your speakers is used so that bass does not become distorted. If using Anthem Room Correction, these items will be set during measurement, so you may skip this menu. If your subwoofer has a crossover, it should be bypassed – set its frequency control to the highest frequency.

  • Page 26: Listener Position

    3.4 LISTENER POSITION Through these settings, sound coming from all speakers is coordinated to reach the listening area at the same time. This way, proper imaging is achieved. The channel with the greatest distance setting will have no delay while channels with shorter distance settings will be delayed accordingly.

  • Page 27: Level Calibration

    Audio calibrations from home theater setup discs are not recommended – some use incorrect methods. If using Anthem Room Correction, these items will be set during measurement. A sound pressure level (SPL) meter with C-weighting is recommended if not using ARC, especially to set the subwoofer level.

  • Page 28: Input Setup

    Audio Input HDMI Zone 2 Input Analog 1 Process Analog Audio Input Speaker Profile Config 1 Anthem Room Correction Dolby Volume Dolby Volume Leveler Listening Mode for 2.0 Sources Last Used Listening Mode for 5.1 Sources Last Used Lip Sync...
  • Page 29 • Press Select to return to the menu VIDEO INPUT Select the connection to be used – HDMI1-7, Front HDMI (MRX 710/510), Component 1-2, Composite, None. AUDIO INPUT Select the connection to be used – HDMI, HDMI Audio Return 1-2, Coaxial 1-2, Optical 1-3, Analog 1-5, AM Radio, FM Radio, None.
  • Page 30 LISTENING MODE PRESETS A listening mode is processing that enhances source material by increasing the number of output channels. Each mode performs this its own way, providing its own type of sound. To find your preference, spend some time listening to various modes using various sources. To disable presets and make selections entirely on the fly, select “Last Used”.
  • Page 31 FOR 5.1-CHANNEL SOURCES (MRX 710/510) 7.1 speakers are needed in the main zone. Dolby Pro Logic IIx Movie is suitable for extracting back channels from any 5.1-channel source. Dolby Pro Logic IIx Music is similar but with increased emphasis on the surround channels.

  • Page 32: Volumes / Rec Output

    3.7 VOLUMES / REC OUTPUT Here you can set preferences as listed. Volumes / REC Output Mute Level Silent Main Max Volume 10 dB Zone 2 Max Volume 10 dB Main Power On Volume -35 dB Zone 2 Power On Volume -35 dB Mute Analog REC Out when selecting Never...

  • Page 33: Network / Remote Control

    NETWORK TYPE: The default is wired LAN, which will allow the easiest way to run Anthem Room Correction, described later, as long as the receiver is connected to an Ethernet router. The alternative is to change the setting to Direct Connect (generally not recommended),...
  • Page 34 IP CONFIGURATION Settings in this submenu should only be changed if your network administrator gives the direction or if using Direct Connect to run ARC. IP Configuration Mode Auto 192.168.1.3 Subnet Mask 255.255.255.0 Gateway 192.168.1.1 MODE Static IP settings take effect once this is changed to Manual. For ARC, enter the IP, Subnet Mask, and Gateway values shown above (note that the receiver’s IP address is not the same as the computer’s).
  • Page 35 TCP AND UDP PORT Change these only if there is a conflict with another application that uses 14999. REAR AND FRONT IR This allows you to disable each of the receiver’s infra-red inputs, which can be useful when the receiver is connected to an IR repeater and is receiving too many signals. Note that the moment that you disable the front IR input, you will not be able to control the receiver the traditional way from the remote control –...

  • Page 36: Display

    3.9 DISPLAY The front panel display’s brightness is set here. Display Brightness Medium Wake Up Brightness Up 1 BRIGHTNESS: Set preferred default brightness. WAKE UP BRIGHTNESS: When a button is pressed the display can go to a brighter level for 5 seconds – select None, Up 1 brightness level, Medium, or High.

  • Page 37: General Configuration

    HDMI source without turning on the receiver. Select HDMI 1-7, Front HDMI (MRX 710/510), or Last Used. The standby LED on the front panel changes to red. Your TV may need setup to allow the sound to come from its...
  • Page 38 When Consumer Electronics Control is enabled it allows controlling one HDMI- connected component using another’s remote control, as long as CEC is also enabled After changing CEC settings or in the other components. Note that when component brands are mixed this control loading factory defaults it may be system may not be reliable.

  • Page 39: Save / Load Settings

    3.11 SAVE / LOAD SETTINGS Save / Load Settings Save User Settings Load User Settings Reset on-the-fly Settings Load Factory Defaults SAVE/LOAD USER SETTINGS After selecting Save User Settings and confirming, all menu settings will be stored. If you change settings later and want to recall the saved settings, select Load User Settings and confirm.

  • Page 40: System Information

    3.12 SYSTEM INFORMATION System Information Update Via USB Release Version 1.0.5 Main Micro Version 1.0.5 DSP Version 0.2.2 HDMI Version 0.2.1 ARC Name ARC Upload Time MAC Address 7C:B7:7B:00:00:0A LAN Status Disconnected UPDATE VIA USB AND VERSION NUMBERING: The operational characteristics of the receiver are controlled by software installed through the USB port on the rear panel.

  • Page 41: Anthem Room Correction

    A N T H E M R O O M C O R R E C T I O N ARC corrects the effects of reflective surfaces and room boundaries on sound quality by measuring the response of each speaker relative to the listening area and equalizing it.

  • Page 42: Before Starting

    Example: 300001.cal. If you copy it to the same folder as setup.exe before running the installer, it will be installed as well. The installation will put several files into an Anthem folder on your computer and create shortcuts in your Start Menu and on Desktop.

  • Page 43: Microphone Stand Assembly

    To use Quick Measure, select Manual • Run Anthem Room Correction from the Start Menu or through its Desktop shortcut. mode instead of Automatic The program will guide you through the remaining steps and at the end will load the when starting ARC.

  • Page 44: Manual Mode And Targets

    For advice in getting the most out of your system based on your measurements, we welcome you to send your .arc2 file (not screenshots as they cannot be changed) to Anthem Technical Support. WHAT NOT TO DO Upon seeing results for the first time you may be tempted to immediately change the targets.

  • Page 45: Advanced Subwoofer Targets

    If you did change settings such that a large portion of the bass is being boosted, as would be shown by a wide range of the green corrected curve having higher level than the red measured curve, chances are that your equipment will be stressed more than the sound will improve.

  • Page 46: Printing A Report

    ARC version to work correctly. If a newer version is posted and you would like to use it, check your current version: • Run Anthem Room Correction. • Click on About. The version number will be displayed. Proceed only if your version is not the latest.

  • Page 47: Operation

    O P E R A T I O N 5.1 POWER ON / OFF AND VOLUME Main and Zone 2 have separate power controls. During power-on and power-off a mechanical click is produced from the unit – this is normal. Volume comes on according to setup menu setting.

  • Page 48: Input Selection

    5.3 INPUT SELECTION The number of active inputs varies according to how the Input Setup menu was programmed. To scroll through the next/previous active inputs press the right/left buttons, and to make a selection press SELECT. Front Panel Remote SELECT INPUT Alternatively, press the INPUT button for an on-screen list of inputs.

  • Page 49: Level Trim

    LFE level without affecting redirected bass from other channels. Subwoofer adjustment changes the redirected bass together with LFE. LEVEL LEVEL Note that this adjustment is not meant for system calibration – this is handled in the setup menu and by Anthem Room Correction.

  • Page 50: Bass / Treble / Balance

    5.6 BASS / TREBLE / BALANCE To change tone, press Bass or Treble on the remote control then up/down. Note that Bass does not affect the subwoofer output – this is handled by the Level adjustment. BASS TREB To change balance press BAL on the remote then up to move the image to the right, or down to move the image to the left.

  • Page 51: Dolby Volume And Dynamic Range Control

    5.9 DOLBY VOLUME AND DYNAMIC RANGE CONTROL Refer to the Input Setup section for a description of Dolby Volume. To change on/off status press DYN on the remote control then up/down. To change Leveler amount press DYN a second time when Dolby Volume is on then adjust. When Dolby Volume is off another dynamic range control becomes available after DYN is pressed a second time.

  • Page 52: Specifications

    Weight: MRX 710 ..... . . 30.8 lb (14.0 kg), MRX 510 ..... . . 30.2 lb (13.7 kg),...

  • Page 53: Limited Warranty

    Anthem shall have no obligation to correct any defect that is not reproducible by Anthem. If inspection by Anthem discloses that the repair required is not covered by this warranty, regular repair charges shall apply.

  • Page 54: The Big Picture: Front Panel (Mrx 710)

    T H E B I G P I C T U R E F R O N T P A N E L ( M R X 7 1 0 )

  • Page 55: The Big Picture: Rear Panel (Mrx 710)

    T H E B I G P I C T U R E R E A R P A N E L ( M R X 7 1 0 )

  • Page 56: The Big Picture: Rear Panel (Mrx 310)

    T H E B I G P I C T U R E R E A R P A N E L ( M R X 3 1 0 )
  • Page 57 N O T E S...
  • Page 58 N O T E S...
  • Page 59 N O T E S...
  • Page 60 DESIGNED IN NORTH AMERICA +1 905-564-1994 9:00 am - 5:30 pm M-F (ET) www.anthemAV.com 2MAN0092 En 2013-10-23...
