Summary of Contents for Green Star GSE-5300
-

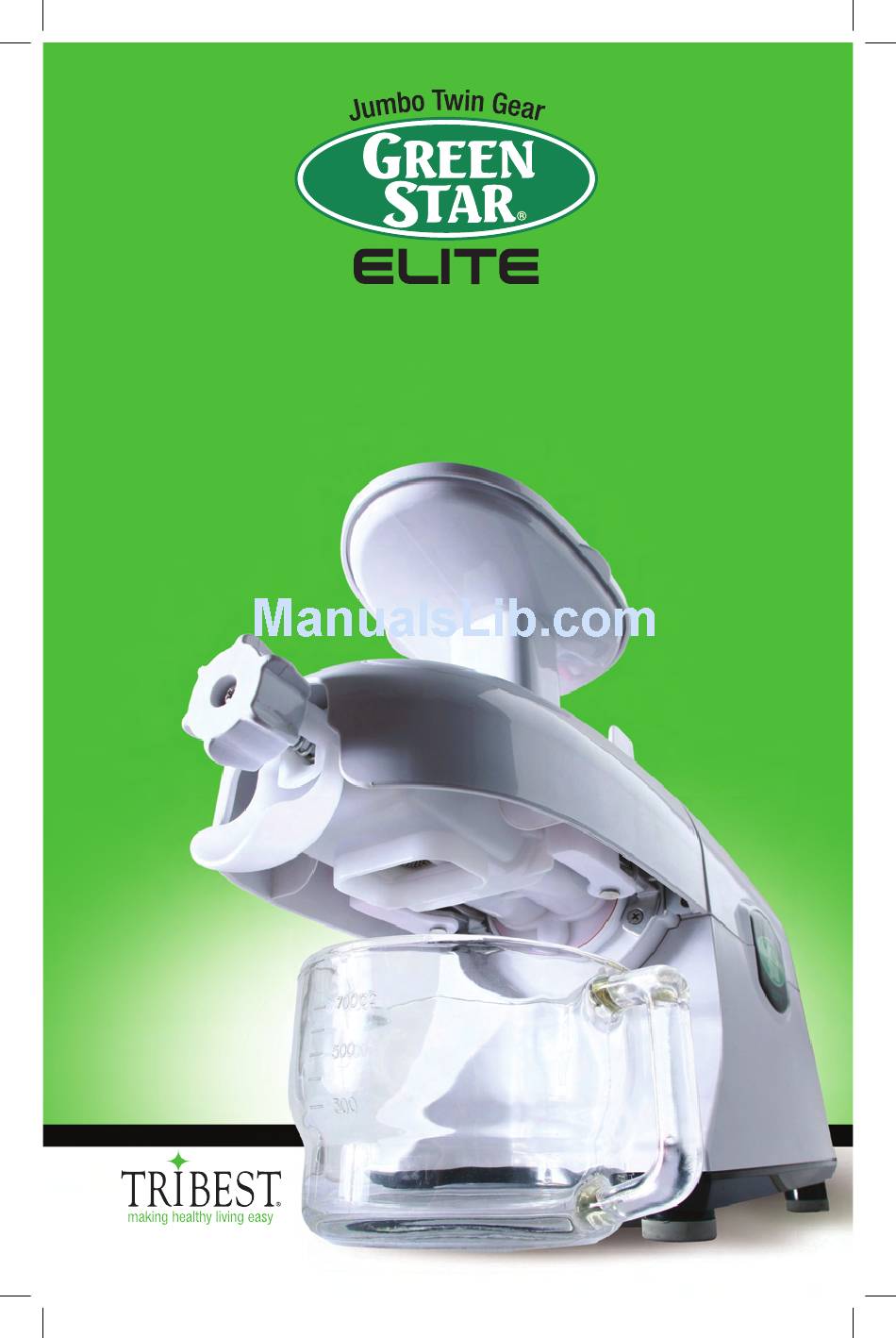

Page 1: Juice Extractor
GSE-5000 & 5300 Juice Extractor OPERATION MANUAL SAVE THIS MANUAL KEEP IT HANDY FOR QUICK REFERENCE AND PROPER CARE... -
Page 2: Welcome
Elite’s Jumbo Twin Gears extracts more juice and provides greater performance than other Twin Gear juicers. The new twin gears are coupled with other design improvements that make Green Star Elite easier to set up, easier to use, and easier to clean than ever before. -
Page 3: Table Of Contents
Table of Contents • Welcome........................2 • Important Safeguard ....................4 • Important Safety Precautions ..................5 • Green Star Elite Juice Extractor Parts................6 A. Juicer Diagram B. Standard Parts • Setting Up Your Green Star Elite..................8 A. Assembly B. Disassembly C. Using the Screens D. -
Page 4: Important Safeguard
(such as housing, twin gears, screen). Opening the motor base will void your warranty. 12. Do not operate your Green Star Elite and have it serviced by a certified technician for examination and possible repair to prevent electrical shock or injury if: •... -
Page 5: Important Safety Precautions
Don’t • Do not lift your Green Star Elite Juice Extractor with wet hands because it is heavy and it may accidentally slip from your grip. • Do not assemble or disassemble while the power cord is plugged in. -
Page 6: Green Star Elite Juice Extractor Parts
Green Star Elite Juice Extractor Parts Juicer Diagram Safety Tray Lid Latches Power Switch Safety Tray Power Indicator Safety Hood Light Handle Twin Gear: Drive Gear Twin Gear: Free Wheel Gear Juicing Knob Pulp Outlet Power Cord Juice Outlet Drive Shaft... -
Page 7: Standard Parts
Standard Parts Make sure to unpack your Green Star Elite and make sure that all parts are there. If any parts are missing, please call your nearest authorized service center immediately. It’s a good idea to disassemble and assemble the machine a few times to familiarize yourself with the machine before juicing. -
Page 8: Setting Up Your Green Star Elite
Setting Up Your Green Star Elite A. Assembly IMPORTANT: Make sure your Green Star Elite is unplugged from the electrical outlet before assembly. 1. Slide the Twin Gear 4. Slide the Outlet Casing Housing onto the main body over the screen. -
Page 9: Disassembly
B. Disassembly IMPORTANT: Make sure your juicer is switched off before disassembly 8. Remove the Twin Gear 1. Unplug the Power Cord Housing by holding the feed- from your electrical outlet, ing chute and sliding it away and then remove the power from the main body. -
Page 10: Using The Screens
Setting Up Your Green Star Elite C. Using the Screens A few screens are provided to increase the versatility of your Green Star Elite. 1. Fine Screen: The fine screen is used to make vegetable and fruit juices with as little pulp as possible in the juice. This screen is suit- able for most types of vegetable and fruit juices, including carrots and other root vegetables;... -
Page 11: Using The Plungers
F. Using the Drip Tray Simply slide the narrow end of the drip tray between the two feet of the Green Star Elite and place the juice pitcher on top of the drip tray to prevent messy drips from staining... -
Page 12: Using Your Green Star Elite
Using Your Green Star Elite A. Making Juices 1. Assemble your Green Star Elite with the Fine Screen or Coarse Screen and the Juicing Knob. 2. Place the Drip Tray on the counter underneath the juice outlet and put the Juice Pitcher on top of the drip tray. - Page 13 Fibrous Celery Preparation: Separate into individual stalks and cut if necessary. Stalks Juicing Knob: Tighten the knob completely. Juicing Procedure: Feed the stalks into the feeding chute, one stalk at a time, with the leafy side up. Press down with the wooden or plastic plunger.
-
Page 14: Homogenizing: Making Pâtés And Basic Food Processing
These instructions utilize the full food processing power of Green Star Elite. The processed food will be ejected in a cylindrical shape through the pulp outlet on the front of the machine. -
Page 15: Making Pasta (Gse-5300 Model)
D. Making Pasta (GSE-5300 Model) How to assemble the pasta maker set onto your machine. Instructions: 1. Attach the Twin Gear Housing to the juicer body. 2. Remove the juice Twin Gears from the machine and insert the Pasta Screw onto the motor drive shaft (left side as you are looking at the front of the body.) -
Page 16: Cleaning And Maintenance
Cleaning Green Star Elite 1. Switch off your Green Star Elite and unplug it from the electrical outlet. Detach the power cord from the rear of the machine. 2. Disassemble the machine according to the instructions on page 9 and immerse the juicing components in warm water. - Page 17 Cleaning and Maintenance Stains: Colored stains on parts are signs of a well-used juicer and may be difficult to remove. Many people leave the colored stains as a ‘badge of honor.’ But if you would like to try to remove the color stains, try using a 25%-50% white vinegar/water solution and soak the parts overnight and then scrub with the cleaning brush.
-
Page 18: Troubleshooting
MOVEMENTS: A great deal of pressure is built up in the juicing chamber while in operation. In order to alleviate some of this pressure, Green Star Elite is designed to wiggle and flex while juicing to prevent damage to other parts of the machine. This flexing is normal and will not cause damage to your machine. -
Page 19: Warranty
Warranty (Please read carefully) We warrant to you, the end-user customer who has properly registered after purchasing the Green Star Elite Juice Extractor (hereinafter referred to as “GSE”) for a valuable consideration, that the plastic parts, motor and the Twin Gears of this GSE will be free from defects in materials and workmanship for a period of five (5) years from the date of purchase. -
Page 20: When You Need Service
(RMA) number to send your unit to the service center. Returns will NOT be accepted with out an RMA number clearly written on the box. • Pack your Green Star securely in the original shipping box. Make sure all affected parts are enclosed. -
Page 21: Warranty Registration Card
Please initial here if you would not like us to send you important product updates and announcements: If you have comments or suggestions about our product, please write to: Green Star Customer Relations, P.O. Box 4089, Cerritos, CA 90703... - Page 22 Serial #: 4. Dealer Information Dealer Name Dealer Address Phone OPTIONAL SURVEY • How did you learn of Green Star? (Please check only one.) c Received as a gift c Magazine advertisement c Newspaper advertisement c TV advertisement c Radio advertisement...
-
Page 23: Notes
Notes... -
Page 24: Recipe Index
Recipe Index • JUICES AND DRINKS....................23 Citrus Blend Apple Lemonade Wheatgrass Delight Ambrosia Nectar Watermelon Quench Mellow Melon Punch Snappy Apple Dr. Walker’s Choice (#61) Green Tang Oriental Express • RYE BREAD STICKS AND MOCHI (RICE CAKE).............27 • PÂTÉ AND CROQUETTE.....................28 Cashew Curry Croquettes Pecan Pleasers •... - Page 25 Juice and Drinks MACHINE SETUP FOR ALL JUICES AND DRINK RECIPES: 1. Assemble your Green Star Elite for juicing with the Fine Screen and the Juicing Knob. 2. Put glass Juice Pitcher under the Juice Outlet. 3. Put container under the Pulp Outlet to catch pulp.
- Page 26 Juice and Drinks AMBROSIA NECTAR 2 BUNCHES GRAPES 3 APPLES (FUJI, GRANNY SMITH, OR PIPPIN - cut into 6 pieces) 1 KIWI (peeled and cut into 2 pieces) 1 SLICE HONEYDEW (cut into cubes) 1 SLICE PINEAPPLE (cut into cubes) 1 WHOLE LEMON (peeled and cut into 4 pieces) 1/2 CUP CRANBERRIES 1.
- Page 27 Juice and Drinks MELLOW MELON PUNCH 1/4 CANTALOUPE (cut into cubes) 1/4 HONEY DEW (cut into cubes) 2 SLICES WATERMELON (cut into cubes) Juice all together and enjoy SNAPPY APPLE 7 APPLES (FUJI, GRANNY SMITH, YELLOW DELICIOUS - cut into 4 to 6 pieces) 1/2 JALAPEÑO PEPPER 1/4 LIME 1 KIWI (peeled and cut into 2 pieces)
- Page 28 Juice and Drinks GREEN TANG 2 PINEAPPLE WEDGES (cut into smaller pieces) 1 SPRIG MINT 3 HANDFULS WHEATGRASS 1/4 LEMON 1 SLICE GINGER FOR FLAVOR 1. Juice wheatgrass 2. Juice mint 3. Juice lemon 4. Juice pineapple cubes Note: A Pineapple wedge is a 1” round slice of whole pineapple cut into quarters (4 pieces).
- Page 29 Breadsticks and Mochi (Rice Cake) MACHINE SETUP: 1. Assemble your Green Star Elite with the Breadstick Screen and the Breadstick Knob. 2. Put a plate under the Breadstick Knob. RYE BREADSTICKS 2 CUPS RYE (soaked overnight) 1/2 CUP SUNFLOWER SEEDS (soaked overnight)
- Page 30 Paté and Croquettes MACHINE SETUP: 1. Assemble your Green Star Elite using the Homogenizing (Open) Screen and the Juicing Knob 2. Place a bowl under the Juice Outlet CASHEW-CURRY CROQUETTES 2 CUPS CASHEWS 1 CUPS SPROUTED WHEAT (soak for 12 hours and let small tips emerge by sprouting)
- Page 31 MACHINE SETUP: A. To Juice Carrots, Lemon, And Apple 1. Assemble your Green Star Elite with the Fine Screen and the Juicing Knob securely fastened. 2. Place the juice pitcher underneath the juice outlet, and a bowl under the pulp outlet.
- Page 32 Desserts MACHINE SETUP: 1. Assemble your Green Star Elite with the Homogenizing (Open) Screen and securely fasten the Juicing Knob. 2. Place a bowl under the Juice Outlet CASHEW POPPY 1 CUP SPROUTED WHEAT BERRIES (soak for 12 hours until small sprout tips emerge)
-
Page 33: Product Information
Product Information Product Information PRODUCT STANDARD PRODUCT STANDARD ITEM ITEM VEGETABLE JUICER VEGETABLE JUICER MODEL MODEL GREEN STAR GREEN STAR ELITE ELITE ® ® USA Models : 120Vac, 60Hz, 200W USA Models : 120Vac, 60Hz, 200W ELECTRICITY RATING ELECTRICITY RATING...
