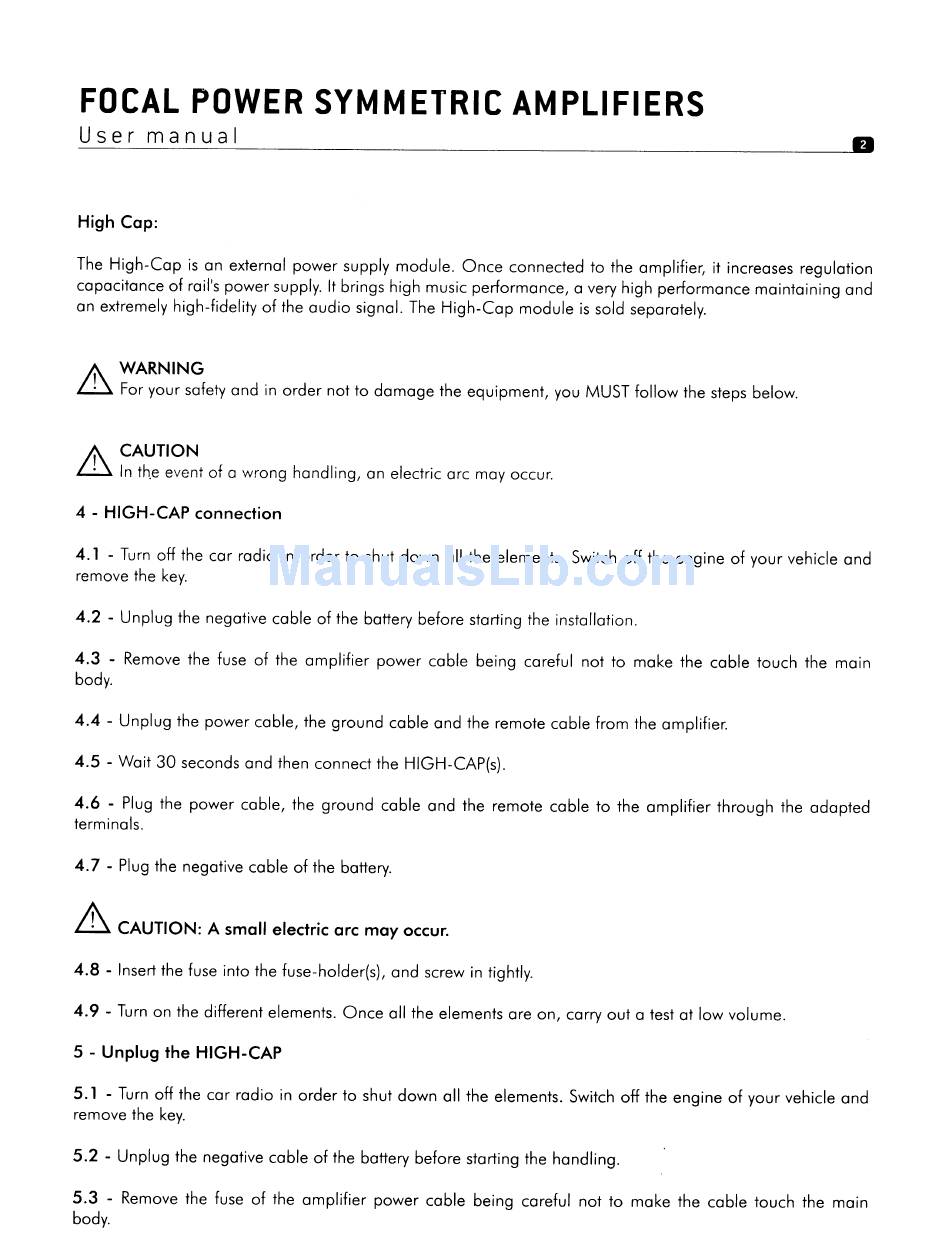

High Cap:
II
The High-Cap is an external power supply module. Once connected to the amplifier, it increases regulation
capacitance of rail's power supply. It brings high music performance, a very high performance maintaining and
an extremely high-fidelity
of
the audio signal. The High-Cap module is sold separately.
'" WARNING
~
For your safety and in order not to damage the equipment, you MUST follow the steps below.
'" CAUTION
~
In the event of a wrong handling, an electric arc may occur.
4 - HIGH-CAP connection
4.1 - Turn off the car radio in order to shut down all the elements. Switch off the engine of your vehicle and
remove the key.
4.2 - Unplug the negative cable of the battery before starting the installation.
4.3 - Remove the fuse of the amplifier power cable being careful not to make the cable touch the main
body.
4.4 - Unplug the power cable, the ground cable and the remote cable from the amplifier.
4.5 - Wait 30 seconds and then connect the HIGH-CAP(s).
4.6 - Plug the power cable, the ground cable and the remote cable to the amplifier through the adapted
terminals.
4.7 - Plug the negative cable of the battery.
..&.
CAUTION: A small electric arc may occur.
4.8 - Insert the fuse into the fuse-holder(s), and screw in tightly.
4.9 - Turn on the different elements. Once all the elements are on, carry out a test at low volume.
5 - Unplug the HIGH-CAP
5.1 - Turn off the car radio in order to shut down all the elements. Switch off the engine of your vehicle and
remove the key.
5.2 - Unplug the negative cable of the battery before starting the handling.
5.3 - Remove the fuse of the amplifier power cable being careful not to make the cable touch the main
body.
