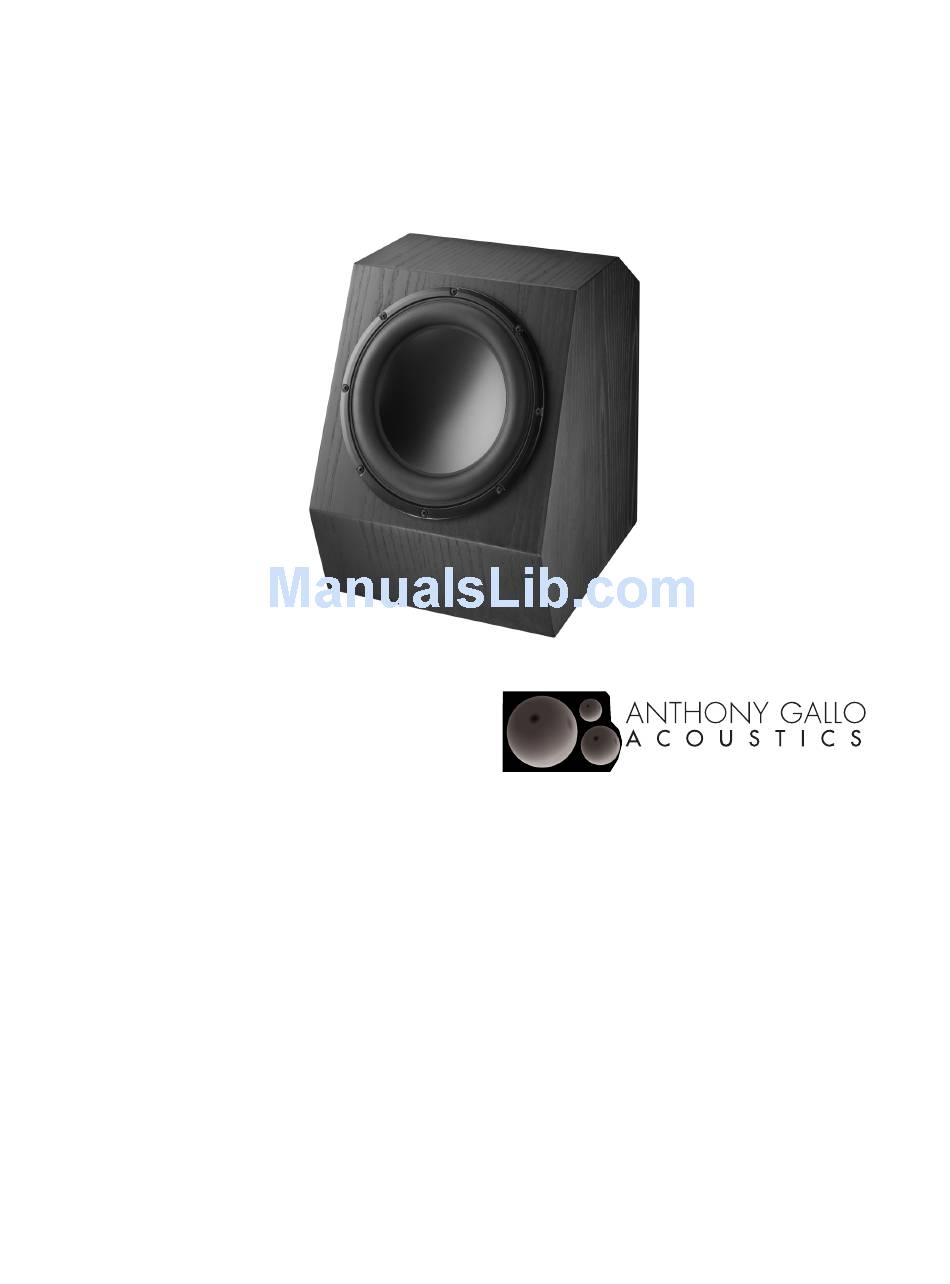

- Page 1 Classico CLS-10 / 12 Subwoofer Owner’s Manual www.roundsound.com Anthony Gallo Acoustics, 20841 Prairie Street, Chatsworth, CA 91311 USA Phone (818) 341-4488 • Fax (818) 341-2188...
- Page 2 WARNING WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.
-
Page 3: Table Of Contents
Contents Introduction Welcome to the Anthony Gallo Acoustics family! .......1 Important Safety Instructions ............2-3 Proprietary AGA Technology ..............4 CLC-10 / 12 Subwoofer Highlight Features.........5 Installation Unpacking and Inspection..............6 Control Settings and Connecting Your Classico CLS10/12 .....7-12 Subwoofer Placement (and Potential Domestic Bliss) Another Important Note..............13... - Page 4 Copyright Information Copyright © 2012 Anthony Gallo Acoustics. All rights reserved. This material may not be reproduced or copied, in whole or in part, without the written permission of Anthony Gallo Acoustics.
-
Page 5: Introduction
AGA subwoofer delivers. This manual is for the Classico CLS-10 / 12 subwoofer. The full Classico line includes two compact bookshelf systems, (CL-1 and CL-2); two floor-standing models, (CL-3 and CL-4); a dedicated center channel (CL-C);... -
Page 6: Important Safety Instructions
Important Safety Precautions Important Safety Instructions Read and Retain These Instructions: All the safety instructions should be read before the product is operated. Keep them for later reference. Follow These Instructions: All operating and use instructions should be followed. Water and Moisture: Do not use this product near water: for example, near a bathtub, wash bowl, kitchen sink, laundry tub, wet basement, swimming pool, and the like. - Page 7 Servicing: Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. Damage Requiring Service: Unplug this product from wall outlet and refer servicing to qualified personnel under the following conditions: if liquid has been spilled onto the product;...
-
Page 8: Proprietary Aga Technology
Proprietary AGA Technology The Classico Series was designed from the outset to deliver the exceptional performance for which AGA has become famous, yet to present a more traditional look. This makes it easy to incorporate our Classico series in practically any environment. The unique technology used in these AGA products was specifically developed by Anthony Gallo and cannot be found in any other subwoofers. -
Page 9: Clc-10 / 12 Subwoofer Highlight Features
CLS-10 / 12 Subwoofer Highlight Features Internal Crossover Bypass: Lets you set the crossover for your satellite speakers in your preamplifier, surround sound receiver, or processor while bypassing the internal crossover in the CLS-10 / 12. This method, detailed further in the manual, is ideal if you’re using compact speakers in your system. There can also be benefit to this method even if you’re using larger speakers, as we’ll detail below. -
Page 10: Installation
Additional Items Required for Installation The following additional items may be required when installing your Classico CLS-10 / 12 and connecting it to your system: Connecting Wire: If you are connecting through Line level, you will need at least one appropriate- length, high-quality, RCA-type unbalanced audio cable. -
Page 11: Control Settings And Connecting Your Classico Cls10/12
Control Settings and Connecting Your Classico CLS-10 / 12 LEGEND 1. PHASE TOGGLE 2. BYPASS/CROSSOVER TOGGLE 3. LINE IN 4. LINE OUT CAUTION VORSICHT 5. LEVEL 6. ON/AUTO/OFF TOGGLE BASS BOOST TOGGLE CROSSOVER DIAL HIGH LEVEL IN 10. HIGH LEVEL OUT 11. - Page 12 CLS-10 / 12 Subwoofer Controls and Connections Level Control - This knob matches the subwoofer’s output to that of the main speakers. Clockwise rotation increases the subwoofer output, counter-clockwise decreases it. You should only need to set this control once, after you’ve installed the CLS-10 / 12 in its final position (re-check the level after break-in).
- Page 13 CLS-10 / 12 Subwoofer Controls and Connections Line-in/Line-out, Speaker-In/Speaker-Out (or Low-Level/High-Level Connections) Line Level Connections: These are the most commonly used inputs. If you have a contemporary surround sound receiver or processor, it will have outputs labeled “LFE” or “Subwoofer.” Often this is a single RCA jack.
- Page 14 CLS-10 / 12 Subwoofer Controls and Connections which can be far more demanding than the vast majority of musical recordings. As noted above, enter your receiver or surround processor setup menu and select Small for the speakers. Then enter the bass-management section of the menu and set the crossover to between 100 and 120Hz for the Nucleus®...
- Page 15 CLS-10 / 12 Subwoofer Controls and Connections The 100Hz filter mentioned above allows bass management at speaker level. The built-in filter subtracts bass below 100Hz from your satellite speakers and should be used if your receiver or amplifier lacks bass management and you don’t want to run the satellites full range. Running very small satellite speakers at high levels, full range, risks damaging them.
- Page 16 CLS-10 / 12 Subwoofer Controls and Connections the fuse blows again, disconnect the power cord from the AC wall supply and contact your local Gallo Acoustics dealer, or contact us directly. Dual Subwoofer Connections Connection Using High-Level (Speaker-Wire) Inputs: Instead of running Left and Right Channel speaker cables from your receiver or amplifier to both subwoofers, you can run the Left Channel to one sub- woofer and the Right Channel to the other.
-
Page 17: Subwoofer Placement (And Potential Domestic Bliss)
Subwoofer Placement (and Potential Domestic Bliss) Another Important Note: The following information and further placement and acoustic recommendations in this manual are based upon our desire for you to enjoy the best possible performance from your AGA audio system. Of course, we realize that there are other, possibly more important, considerations when it comes to placing your system components, not the least of which may be aesthetics and domestic tranquility. -
Page 18: General Subwoofwer Placement Recommendations
Subwoofer Placement (and Potential Domestic Bliss) General Subwoofer Placement Recommendations (Assuming a Rectangular Room): 1. Every boundary surface (wall, floor, etc.) directly next to which you put the sub results in more apparent bass in the room. Corner placement (three boundary surfaces) provides maximum apparent output from the sub. - Page 19 The Advantage of Using Multiple Subwoofers All Anthony Gallo Acoustics subwoofers were designed to be used singly or in multiples. With a single subwoofer, both left and right signals are combined (either at the subwoofer input or at the receiver/processor output).
- Page 20 Subwoofer Placement (and Potential Domestic Bliss) 2. Connect and place one subwoofer by moving your primary listening chair aside and placing the subwoofer exactly where you normally sit. (Follow directions for connection, as outlined above.) 3. At a moderately loud level, play music or a video soundtrack with extended bass that is repetitive or continuous.
- Page 21 Subwoofer Placement (and Potential Domestic Bliss) Stereo Review & Chesky Records: Gold Stereo and Surround Sound Set-Up Disc (ASIN: B000003GHE) Also, some THX™ DVDs include test tones and other setup aids. Operation Note: The Classico subwoofers are designed to be self cooling as the air that moves in and out of the BLAST port passes over the amplifier’s heat sinks.
-
Page 22: Cls-10/12 Specifications
CLS-10 / 12 Specifications CLS-10 Specifications Frequency Response: 19Hz – 200Hz +/-3dB Enclosure Type: BLAST Transmission Line using patented S2 bass loading Power: 300 watts RMS, 600 watts maximum output Amplifier Design: High efficiency Class D Line Level Crossover In/Out: Bypass switch Low Pass: 50Hz –... -
Page 23: Cls-10/12 Specifications
CLS-10 / 12 Specifications Warranty: 1 Year Parts and Labor (Extended to 2 Years Parts and Labor with registration through an Extended Service Agreement) Documentation is necessary for us to determine the purchase authenticity of all AGA products. AGA does not authorize any online reseller of any type to sell our products, except our own site, www.roundsound.com. -
Page 24: Warranty And Extended Service Agreement
Anthony Gallo Acoustics warrants this product to be free from defects in materials and workmanship under the specified terms stated above. Anthony Gallo Acoustics will, at its option, repair or replace this product and/or any parts proven to be defective in materials or manufacture. The original sales invoice must be presented along with the request for warranty repair by the original owner and the product must be registered with Anthony Gallo Acoustics in order to verify ownership. -
Page 25: Service
Service If your subwoofer requires repair: 1. In the United States, contact us at 1-800-459-4183 or e-mail techsupport@roundsound.com. If you purchased your Classico subwoofer from an Authorized Gallo Acoustics dealer outside the United States, please contact the dealer. It is necessary to have the original sales receipt available to confirm warranty eligibility.
