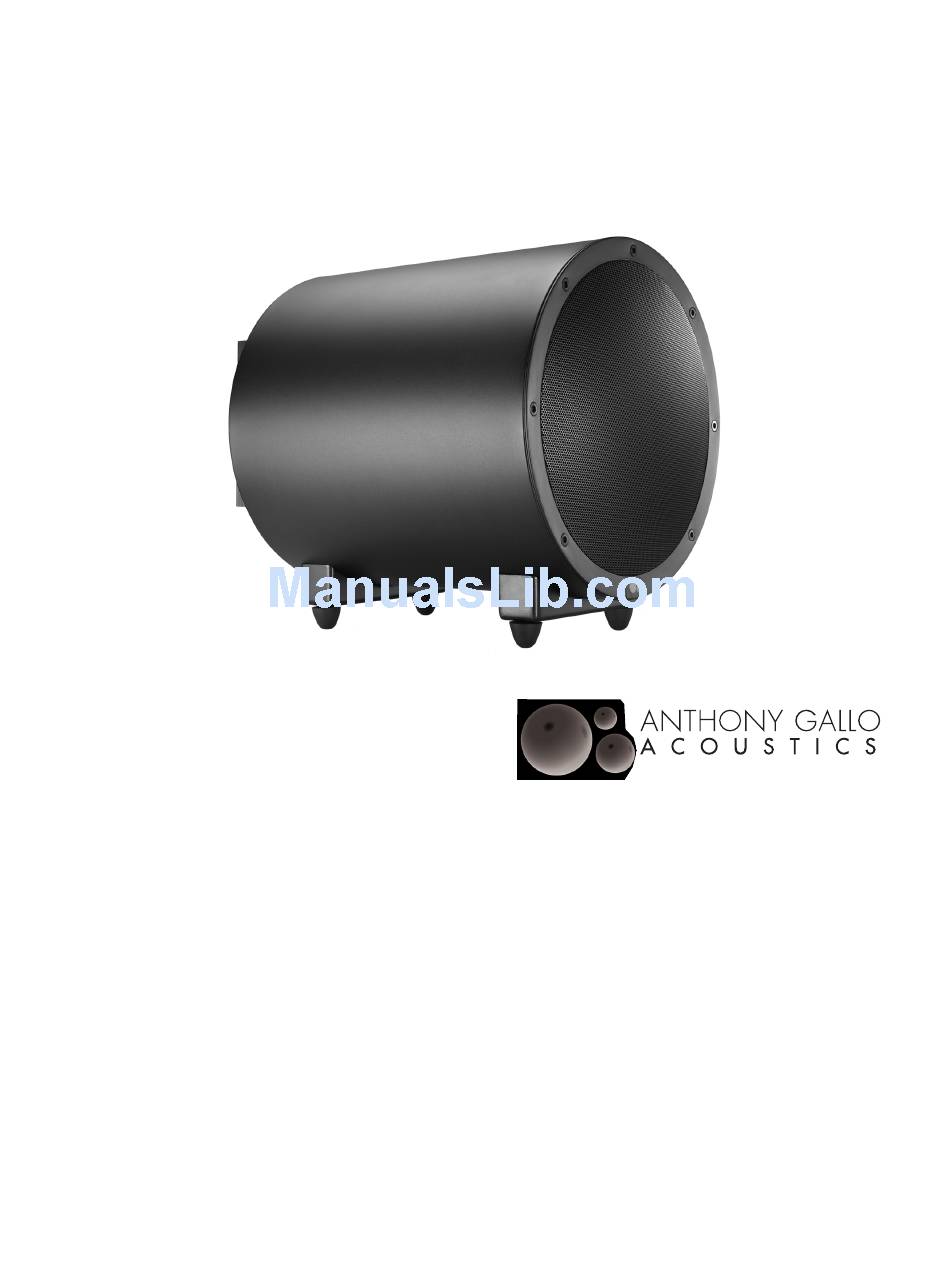

- Page 1 TR-1D/3D Subwoofer Owner’s Manual www.anthonygalloacoustics.com Anthony Gallo Acoustics, 20841 Prairie Street, Chatsworth, CA 91311 USA Phone (818) 341-4488 • Fax (818) 341-2188...
- Page 2 WARNING WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE. OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHOULD NOT BE PLACED ON THIS APPARATUS.
- Page 3 Copyright Information Copyright © 2012 Anthony Gallo Acoustics. All rights reserved. This material may not be reproduced or copied, in whole or in part, without the written permission of Anthony Gallo Acoustics.
-
Page 4: Table Of Contents
Important Safety Instructions ............2-3 Proprietary AGA Technology ..............4 TR-1D/3D Subwoofer Highlight Features..........5 Installation Unpacking and Inspection..............6 Control Settings and Connecting Your Classico TR-1D / 3D.....7-12 Subwoofer Placement (and Potential Domestic Bliss) Another Important Note..............13 General Subwoofwer Placement Recommendations.....14-16 CLS-10/12 Specifications TR-1D Specifications..............17... -
Page 5: Introduction
AGA subwoofer delivers. This manual is for the TR-1D / 3D subwoofers. These subwoofers mate well with most current or past Gallo Acoustics speaker systems as well as with many other brands of speakers. You can use them to create anything from a pure stereo system to various multi-channel, surround sound systems. -
Page 6: Important Safety Instructions
Important Safety Precautions Important Safety Instructions Read and Retain These Instructions: All the safety instructions should be read before the product is operated. Keep them for later reference. Follow These Instructions: All operating and use instructions should be followed. Water and Moisture: Do not use this product near water: for example, near a bathtub, wash bowl, kitchen sink, laundry tub, wet basement, swimming pool, and the like. - Page 7 Servicing: Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. Damage Requiring Service: Unplug this product from wall outlet and refer servicing to qualified personnel under the following conditions: if liquid has been spilled onto the product;...
-
Page 8: Proprietary Aga Technology
Gallo and cannot be found in any other subwoofers. This technology contributes to an enhanced level of bass output, precision bass reproduction, and dynamic range not found in other subwoofers anywhere near the TR-1D / 3D’s price. S2 Damping System in a Sealed Enclosure AGA’s patented S2 technology is a simple, yet powerful, approach to solving various problems inherent in the internal acoustics of any loudspeaker. -
Page 9: Tr-1D/3D Subwoofer Highlight Features
L/C/R or surround positions in a surround sound system. Bass EQ: Provides the ability to maximize the TR-1D / TR-3D’s performance in your room by giving you the option of adding 3 or 6dB more bass. Remember, more bass isn’t always the goal with a high-quality audio system. -
Page 10: Installation
Unpacking and Inspection Carefully inspect your new subwoofer immediately after unpacking. If you note any concerns or shipping damage, please contact your dealer. Do not plug in, install, or use your TR-1D / TR-3D if it appears damaged. Record the serial number found on the back of your AGA Subwoofer here: ________________________ Please go to http://www.roundsound.com/product-registration.php and use the serial number(s) above... -
Page 11: Control Settings And Connecting Your Classico Tr-1D / 3D
Control Settings and Connecting Your TR-1D / TR-3D LEGEND 1. CROSSOVER DIAL 2. BYPASS/CROSSOVER TOGGLE 3. PHASE TOGGLE 4. BASS BOOST TOGGLE 5. ON/AUTO/OFF TOGGLE 6. LEVEL CAUTION VORSICHT 7. LINE IN 8. LINE OUT 9. HIGH LEVEL IN 230V 115V 10. - Page 12 A low-pass filter does exactly what its name implies. It determines the frequency below which signal is passed. Set to 50Hz, the TR-1D / TR-3D will reproduce bass below 50Hz. Set to 180Hz, it will reproduce bass and lower midrange below 180Hz. Set this control based upon the frequency range capabilities of the other speakers in your system as outlined below.
- Page 13 (more detailed information is available on our website). Be sure to set the TR-1D / TR-3D’s crossover bypass switch to Bypass, which eliminates the internal crossover in the subwoofer and makes your electronics bass management settings the default mode.
- Page 14 Because a subwoofer, by definition, reproduces bass below the main speaker, set the TR-1D / 3D’s crossover frequency control to 55Hz in our example. Remember that a –3dB spec already includes 3dB of rolloff. Use such a figure merely as a starting place for the crossover control.
- Page 15 In such a hookup, connect the speaker wires from your amplifier/receivers’ speaker output connectors to the TR-1D / TR-3D High Level In binding posts, then connect another set of speaker wires from the subwoofer’s corresponding channel High Level Out terminals to the input terminals of the appropriate speaker.
- Page 16 Control Settings and Connecting Your TR-1D / TR-3D Fuse: This fuse protects the TR subwoofers from abnormal power conditions. It’s located under a small cover as part of the AC line cord socket. Use only a T2.5A 250V fuse when operating on 115V. Use only a T1.5A 250V fuse when operating on 230V.
-
Page 17: Subwoofer Placement (And Potential Domestic Bliss)
Subwoofer Placement (and Potential Domestic Bliss) Another Important Note: The following information and further placement and acoustic recommendations in this manual are based upon our desire for you to enjoy the best possible performance from your AGA audio system. Of course, we realize that there are other, possibly more important, considerations when it comes to placing your system components, not the least of which may be aesthetics and domestic tranquility. -
Page 18: General Subwoofwer Placement Recommendations
2. While the TR-1D / TR-3D has been designed to deliver an excellent listening experience by itself, research has shown the use of two subwoofers has the potential to enhance your system’s performance by providing smoother, more consistent, low-frequency in-room response. - Page 19 The Advantage of Using Multiple Subwoofers All Anthony Gallo Acoustics subwoofers were designed to be used singly or in multiples. With a single subwoofer, both left and right signals are combined (either at the subwoofer input or at the receiver/processor output).
- Page 20 Subwoofer Placement (and Potential Domestic Bliss) 3. At a moderately loud level, play music or a video soundtrack with extended bass that is repetitive or continuous. 4. Walk around your room and note where the bass sounds good and where it sounds boomy or very quiet.
-
Page 21: Tr-1D Specifications
TR-1D Specifications Operation Note: If the TR-1D / TR-3D is driven very hard, the amplifier can become quite warm. Should this occur, the amplifier will temporarily shut down in order to protect itself. This protection feature can be reset by simply waiting a few minutes and then cycling the power switch to Off and then Auto. -
Page 22: Tr-3D Specifications
TR-3D Specifications In Room Frequency Response: 18Hz to 180Hz +/- 3db Class D Digital Power Amp: 300 watts RMS, 600 watts maximum output Phase Switch: 0/180 degrees Active Low Pass Crossover: 50 to 180Hz continuously variable with LFE by-pass switch High Pass: 100Hz fixed, 1st order on high-level output Enclosure Type: hardened steel with patented S2 bass loading Woofer: 10”... -
Page 23: Warranty And Extended Service Agreement
Anthony Gallo Acoustics warrants this product to be free from defects in materials and workmanship under the specified terms stated above. Anthony Gallo Acoustics will, at its option, repair or replace this product and/or any parts proven to be defective in materials or manufacture. The original sales invoice must be presented along with the request for warranty repair by the original owner and the product must be registered with Anthony Gallo Acoustics in order to verify ownership. -
Page 24: Service
Locate your nearest authorized dealer and contact the dealer to arrange for service. 3. If you choose to, you can send your product to Anthony Gallo Acoustics Factory Service. Carefully pack the product in its original carton, obtain a Return Authorization as detailed below, and ship it to our service center.
