Exterior

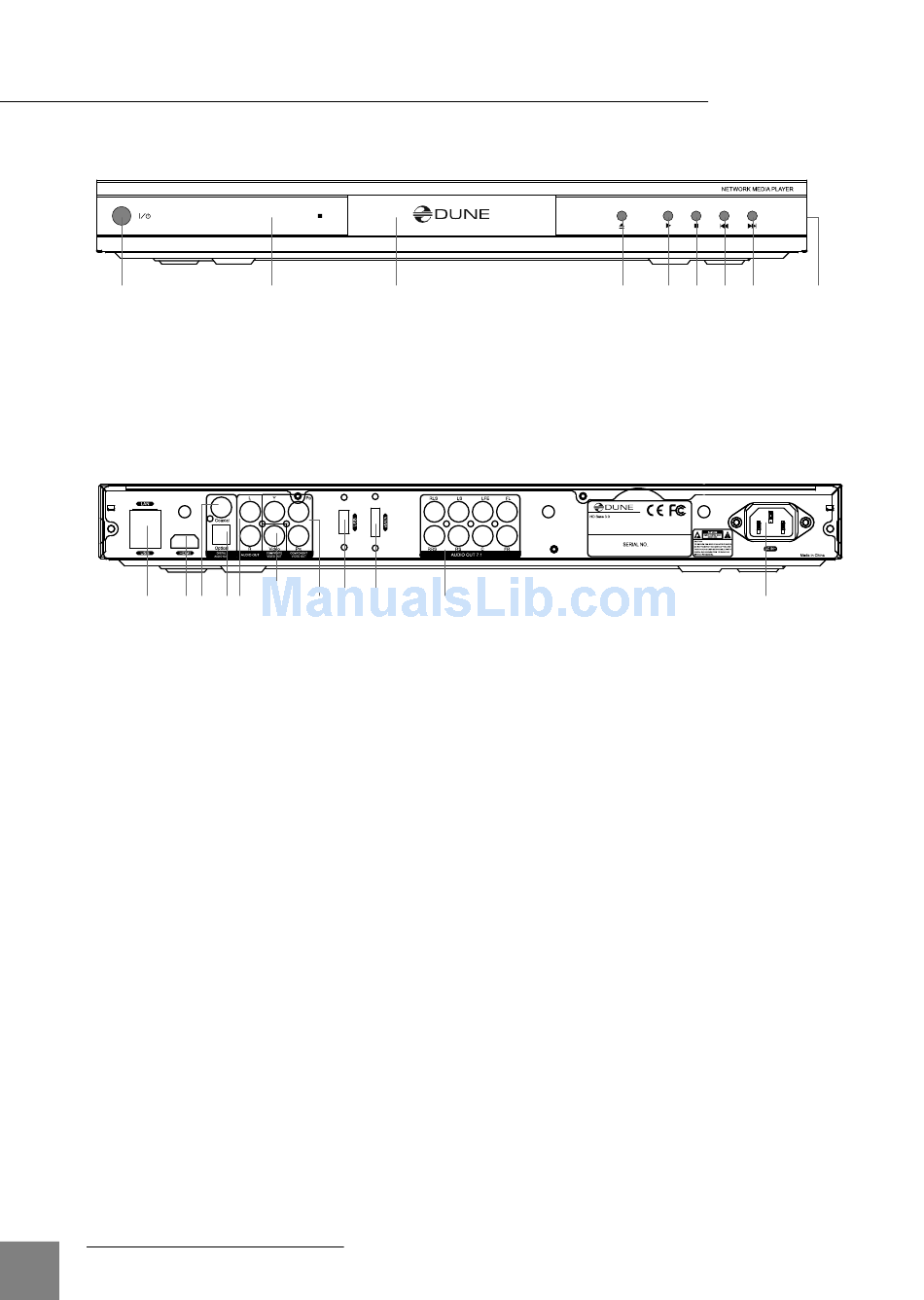

Front view

HD BASE 3.0
1
1. Power switch
2. Display
3. HDD rack

Rear view

1 2 3
1. LAN and USB 2.0 host
2. HDMI 1.3
3. Coaxial digital audio output
4. Optical digital audio output
5. Analog stereo (left/right) audio
output
Dune HD Base 3.0 user manual
8
2 3
4. EJECT
5. PLAY/PAUSE
6. STOP
4 5 6 7 8 9
7. PREV
8. NEXT
9. USB 2.0 host
NETWORK MEDIA PLAYER
10
6. Composite video output
7. Component (Y/Pb/Pr) video output
8. USB 2.0 host
9. eSATA host
10. Multichannel (7.1) analog audio output
11. AC power
