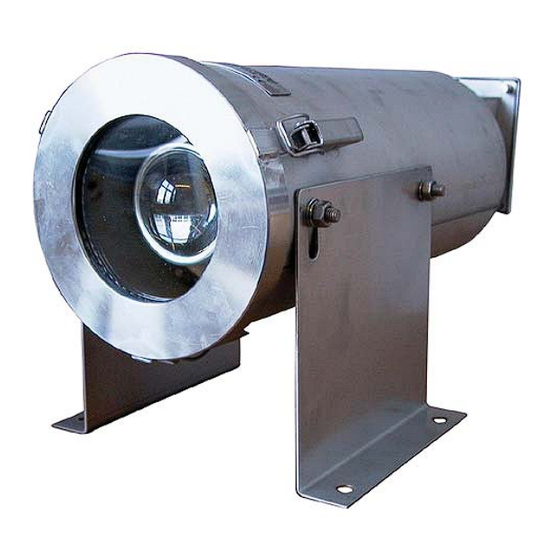

TEF 9964
USER MANUAL
IMPORTANT
Read this instruction carefully before installing the
product
996A106032
Advertisement
Table of Contents
Related Manuals for Tranberg TEF 9964
Summary of Contents for Tranberg TEF 9964

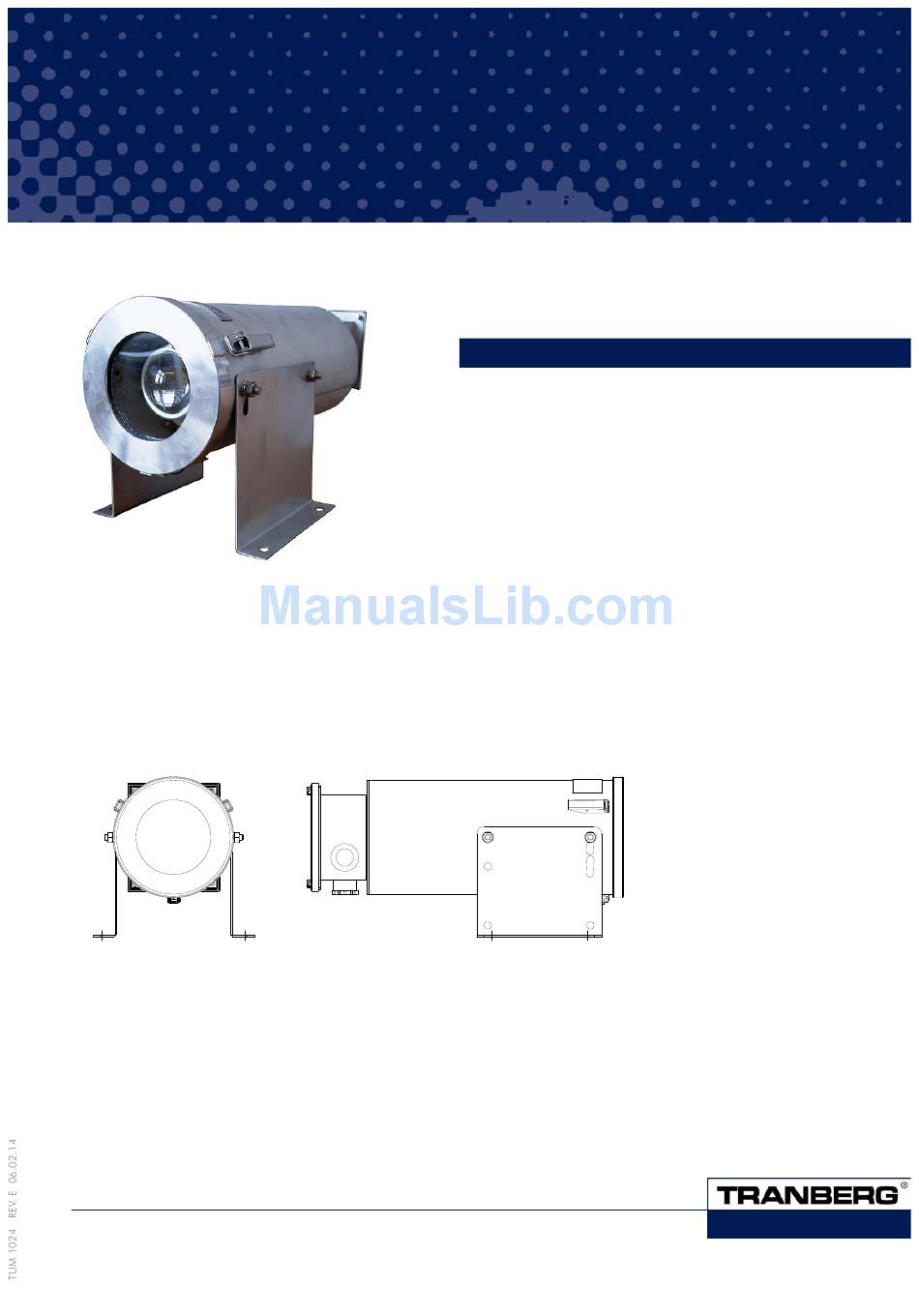

- Page 1 996A106032 Tranberg AS | P.O. Box 8033 | N-4068 Stavanger | Norway | Tel.: (47)51 57 89 00 | Fax.: (47)51 57 89 50 E-mail: info@tranberg.com | www.tranberg.com Tranberg Systems | Hjulmagervej 15C | 7100 Vejle | Denmark | Tel.: (45) 75 85 83 80...
-
Page 2: Tools Required
TEF 9964 XENON HELIDECK FLOODLIGHT INDUSTRY USER MANUAL INTRODUCTION TOOLS REQUIRED Thank you for purchasing this product! Regular tools required for installation: For installation, maintenance and assurance of a long life • 17 mm wrench –for assembling the fl oodlight. -
Page 3: Installation Instructions
TEF 9964 XENON HELIDECK FLOODLIGHT INDUSTRY USER MANUAL INSTALLATION INSTRUCTIONS The fl oodlight should be installed according to the calculated light distribution plan. The glass in front should Open the enclosure cover face the centre at the on rear. Replace cable... - Page 4 REPLACING XENON LIGHT BULB Warning ! High voltage components inside lamp. Make sure to disconnect power before opening. REMOVE FRONT RING Loosen clamps and remove front ring Holding clip Distance bracket SLIDE OUT LAMP INSERT New version: 2. REMOVE HOLDING CLIP AND/OR DISTANCE BRACKET Old version: Distance bracket...
- Page 5 4A. REMOVE LIGHT BULB, NEW VERSION 4B. REMOVE LIGHT BULB, OLD VERSION 4a-1: 4b-1: Disconnect the high voltage plug from the light bulb. Disassemble the refl ector unit. 3 x M4 screws Position lamp removal tool over locking ring as shown Disconnect the hight voltage plug.
