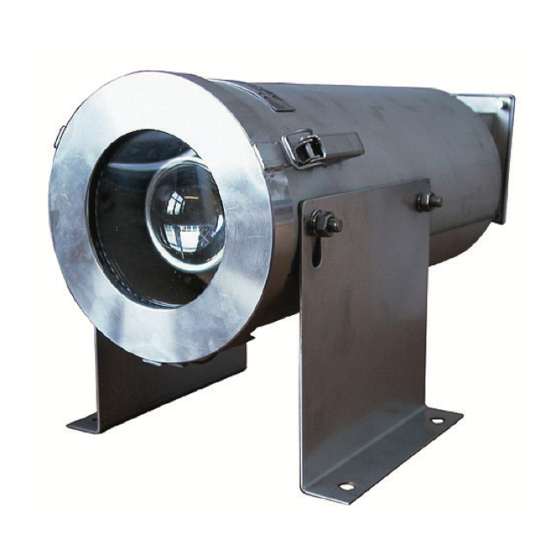

TEF 9964 XENON HELIDECK
FLOODLIGHT INDUSTRY
IMPORTANT
Read this instruction carefully before installing the
product
| F
+47 51 57 89 50
LIGHTING
SAFE AREA
USER MANUAL
Advertisement
Table of Contents
Related Manuals for Tranberg TEF 9964 Helideck
Summary of Contents for Tranberg TEF 9964 Helideck
- Page 1 SAFE AREA USER MANUAL Subject to change without prior notice TUM1024 REV. L 26.01.2022 IMPORTANT Read this instruction carefully before installing the product R. Stahl Tranberg AS info@stahl-tranberg.com stahl-tranberg.com Main office: Strandsvingen 6 N-4032 Stavanger Norway +47 51 57 89 00...
-
Page 2: Maintenance Instructions
TEF 9964 XENON HELIDECK FLOODLIGHT INDUSTRY USER MANUAL INTRODUCTION TOOLS REQUIRED Thank you for purchasing this product! Regular tools required for installation: For installation, maintenance and assurance of a long life • 17 mm wrench –for assembling the floodlight. of this product, please follow this manual. •... -
Page 3: Installation Instructions
TEF 9964 XENON HELIDECK FLOODLIGHT INDUSTRY USER MANUAL INSTALLATION INSTRUCTIONS The floodlight should be installed according to the calculated light distribution plan. The glass in front should Open the enclosure cover face the centre at the on rear. Replace cable helideck, unless stated gland gaskets as otherwise. - Page 4 TEF 9964 XENON HELIDECK FLOODLIGHT INDUSTRY USER MANUAL REPLACING XENON LIGHT BULB Warning ! High voltage components inside lamp. Make sure to disconnect power before opening. 1. REMOVE FRONT RING Loosen clamps and remove front ring Holding clip Distance bracket 3.
- Page 5 TEF 9964 XENON HELIDECK FLOODLIGHT INDUSTRY USER MANUAL 4A. REMOVE LIGHT BULB, NEW VERSION 4B. REMOVE LIGHT BULB, OLD VER- 4a-1: 4b-1: Disconnect the high voltage plug from the light bulb. Disassemble the reflector unit. 3 x M4 screws Position lamp removal tool over locking ring as shown Disconnect the hight voltage plug.
-
Page 6: Spare Parts
Complete Insert for TEF 9964 230/254V 3173 Complete Insert for TEF 9964 110V 3249 Complete Insert for TEF 9964 24V 4210 Tool for Replacing Xenon Lamp in TEF 9964 Helideck Floodlight 4676 TECHNICAL DATA Material: Acid proof stainless steel. Polycarbonate front glass. Input voltage:...
