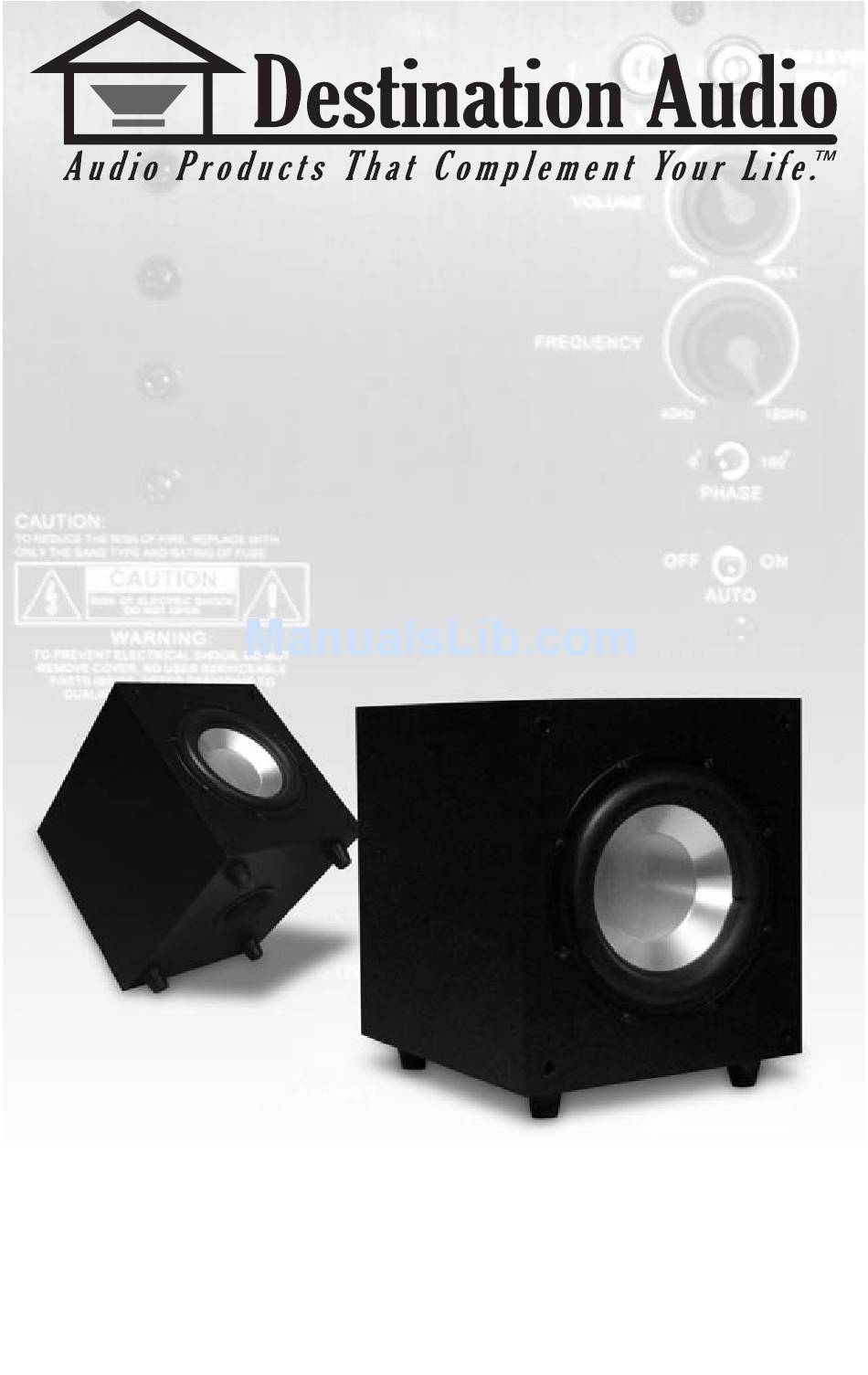

- Page 1 SF10 / SF12 POWERED SUBWOOFER I n s t a l l a t i o n & O p e r a t i o n M a n u a l...
-
Page 3: Important Safety Instructions
Introduction Congratulations on your purchase of an Destination Audio powered subwoofer! Your subwoofer is the result of many years of research and development dedicated to producing powerful, accurate bass in home audio systems. This manual contains operating procedures and specifications. We recommend you thoroughly read through the material contained in this manual before connecting your subwoofer. -
Page 4: Break-In Period
SF10 and SF12 Powered Subwoofer SF10 Subwoofer SF12 Subwoofer Break In Period Allow several hours of listening time to adequately break-in the subwoofer. As the subwoofer breaks-in, the driver suspensions will loosen. The result of break-in will be an increase in low frequency response, improved definition, and increased clarity and detail. - Page 5 Features A powered subwoofer is a must-have component for any home theater or audio system. The performance of your subwoofer can greatly affect the overall per- formance of your system. Without a powered subwoofer, the deep bass on your music CDs and special effects on DVDs may not be heard and/or felt. Think of a subwoofer as a vital component that adds excitement to your theater or music ex- perience.
- Page 6 Room Setup Suggestions In order to obtain the best possible sound from your subwoofer and speaker system, it is important to determine where the subwoofer and speakers will sound best in your listening room. Room reflections from the floor, ceiling and side walls influence the balance, imaging and overall sonic quality at the listening position.
- Page 7 Room Setup Suggestions (continued)
- Page 8 Subwoofer Amplifier Controls and Setup IMPORTANT NOTICE REGARDING BASS MANAGEMENT: It is important the signal being sent to the subwoofer be a non-boosted or “flat” signal. To be sure of this, check the settings on your receiver or processor to make sure any “bass boost”, “super bass” or “loudness”...
- Page 9 Subwoofer Amplifier Controls and Setup (continued) to auto, the amplifier automatically turns on when a signal is detected at the preamplifier or high level inputs and turns off when no signal has been detected for 15 minutes. 5. Phase Control: This control changes the phase of the subwoofer. Changing the phase will change the way the subwoofer and main speakers interact with each other at the crossover frequency.
- Page 10 Subwoofer Amplifier Controls and Setup (continued) SF10 Subwoofer Amplifier Diagram.
- Page 11 Subwoofer Amplifier Controls and Setup (continued) SF12 Subwoofer Amplifier Diagram.
-
Page 12: Specifications
Specifications Model SF10 SF12 Driver: 10” (254mm) Aluminum 12” (305mm) Aluminum Cone Subwoofer Cone Subwoofer Amplifier Type: Class D Class D Voltage: 110 and 220 110 and 220 150 Watts 250 Watts Power Handling: Crossover Frequencies: 40-150Hz (variable) 40-150Hz (variable) -
Page 13: Troubleshooting
Troubleshooting Situation: Probable Cause: Solution: Amplifier is not connected to Make certain the amplifier is plugged No sound from subwoofer(s) constant power outlet. into an unswitched A.C. power outlet. Amplifier is not receiving an Make certain there is an audio signal audio signal from receiver or from receiver or processor and audio processor... -
Page 14: Warranty
Warranty Your Destination Audio powered subwoofer is covered by a limited warranty against defects in materials and workmanship for a period of 5 (five) years on the cabinet and woofers, and one (1) year on the amplifier from the original date of purchase. - Page 16 382 Marshall Way, Layton, Utah • USA • 84041 Phone: (801) 660-2400 • Fax: (801) 543-3300 www.destinationaudio.com It is Destination Audio policy to continuously incorporate improvements into our products; all specifications are subject to change without notice. Copyright © 2011 Destination Audio. All Rights Reserved.
