Right View

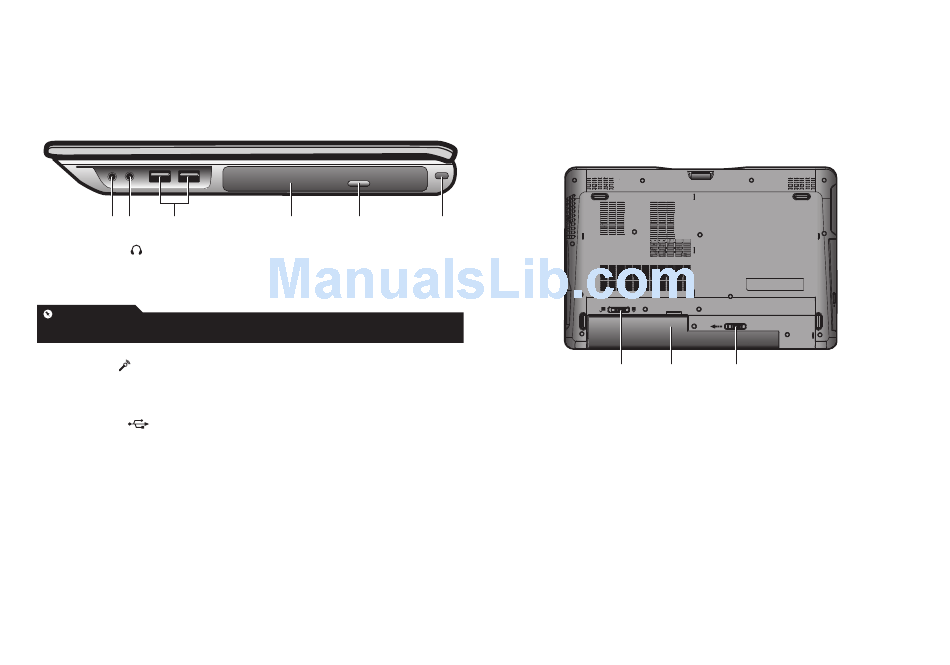

the following figure shows the right view of the notebook.
1 2 3
1. Audio Out
standard 3.5mm mini microphone jack which allows you to
connect stereo headphones and other audio output devices.
NOTE
the internal speakers will be automatically disabled when headphones are connected.
2. Audio In
standard 3.5mm mini microphone socket which allows you to
connect microphones or other audio input devices.
3. USB Ports
usB 2.0 port used to connect external usB devices such as
keyboards and mice.
4. DVD Drive
slimline dvd +/- RW drive used to read or write data from optical
discs.
5. Eject button
ejects the Cd/dvd disc.
6. Notebook Security Slot
used to attach kensington locks which secure your notebook to
your desk or large objects to prevent theft.
10
4 5 6

Bottom View

the following figure shows the bottom view of the notebook. ensure
the display is closed before turning over your notebook.
Battery Lock
1
1. Battery Lock
slide the battery lock into the unlock position to release the
battery pack for removal.
2. Battery Pack
the battery pack provides power to the notebook when the aC
adapter is not connected.
3. Battery Release Latch
slide and hold the latch in the unlock position to release the
battery pack for removal.
Battery release latch
2 3
