Summary of Contents for ATC Group SCM200

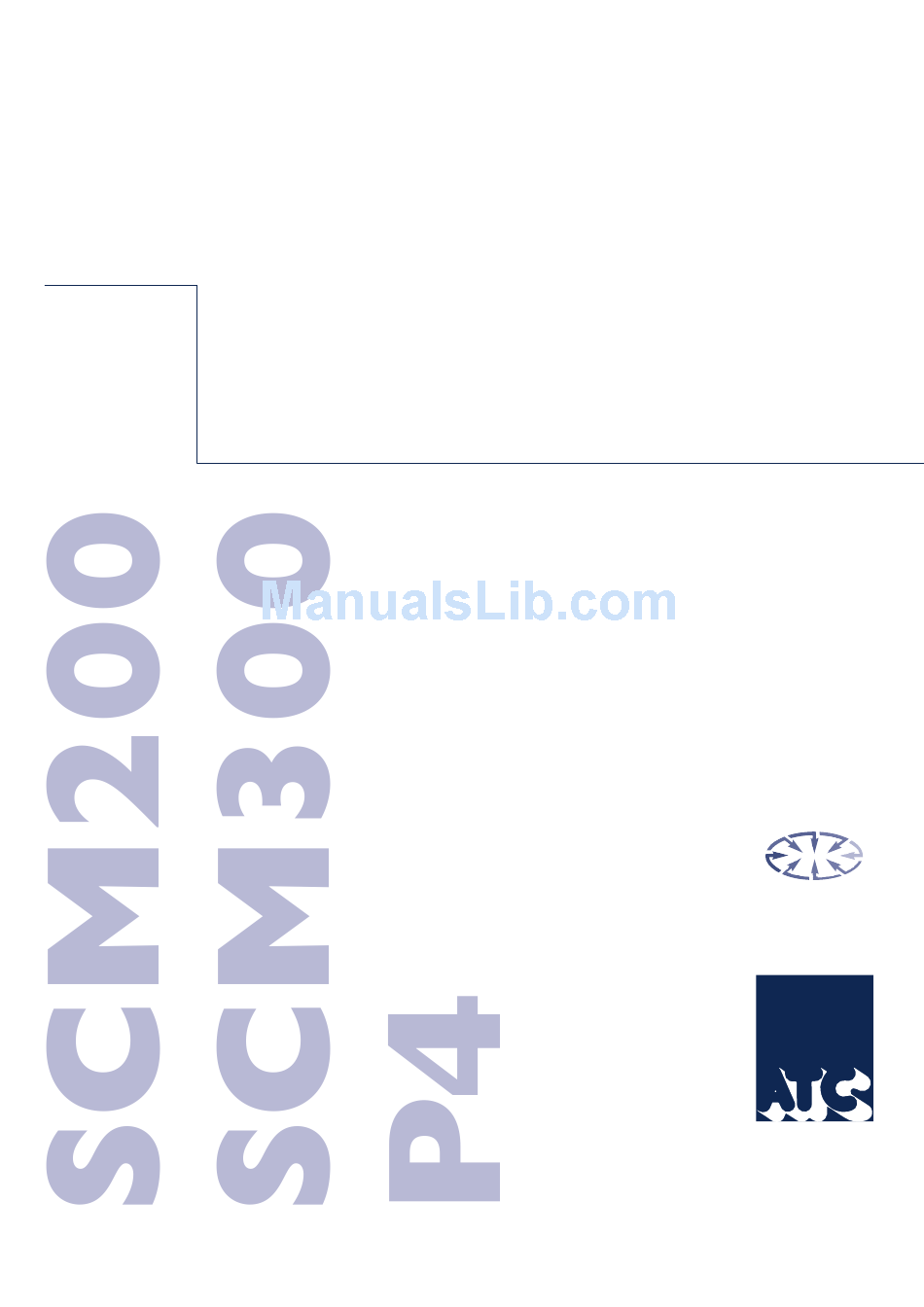

- Page 1 User Manual: SCM200ASL • SCM300ASL P4 POWER AMPLIFIER M U LT I C H A N N E L ® A C O U S T I C E N G I N E E R S...
- Page 2 SCM200/300ASL/P4 S a f e t y W a r n i n g s 1. Read instructions – all the safety and operating instructions should be read before the appliance is operated. 2. Retain these instructions – the safety and operating instructions should be retained for future reference.
- Page 3 SCM200/300ASL/P4 I n t r o d u c t i o n Welcome. In selecting ATC you have chosen an example of the finest audio engineering available. ATC was founded on a principle of engineering excellence, and that principle still defines our products today.
- Page 4 2 . U n p a c k i n g a n d H a n d l i n g The SCM200 and 300 are large, heavy items and should be handled with respect. Take particular care when opening the packing crates not to damage the monitors.
- Page 5 SCM200/300ASL/P4 I n s t a l l a t i o n c o n t ’ d 5 . S y s t e m C o n n e c t i o n s Diagram 1 - input connection pins...
- Page 6 SCM200/300ASL/P4 O p e r a t i o n 7 . C o n n e c t i n g The P4 rear panel carries the mains inlet and signal input socket, mains isolation 8 . S t a r t U p switch, a remote control interface and fuse holder.
- Page 7 9 . L i s t e n i n g The ear and brain tend to interpret distorted sound as loudness and thus underestimate the actual level of undistorted sound. The SCM200 and 300, like all ATC monitors, demonstrates very much lower levels of distortion than conventional systems of a similar size and it is therefore advisable to begin listening at an artificially low level and carefully increase the volume.
- Page 8 SCM200/300ASL/P4 S p e c i f i c a t i o n s SCM200ASL SCM300ASL Drivers: 25mm (1") 25mm (1") 75mm (3") 75mm (3") 2 x 314mm (12") 2 x 375mm (15") Amplitude Linearity ±2dB 60Hz - 12kHz...
- Page 9 ® A C O U S T I C E N G I N E E R S Loudspeaker Technology Ltd, Gypsy Lane, Aston Down, Stroud, Gloucestershire GL6 8HR United Kingdom Telephone 01285 760561 Fax 01285 760683 Email: info@atc.gb.net Website: www.atc.gb.net...
