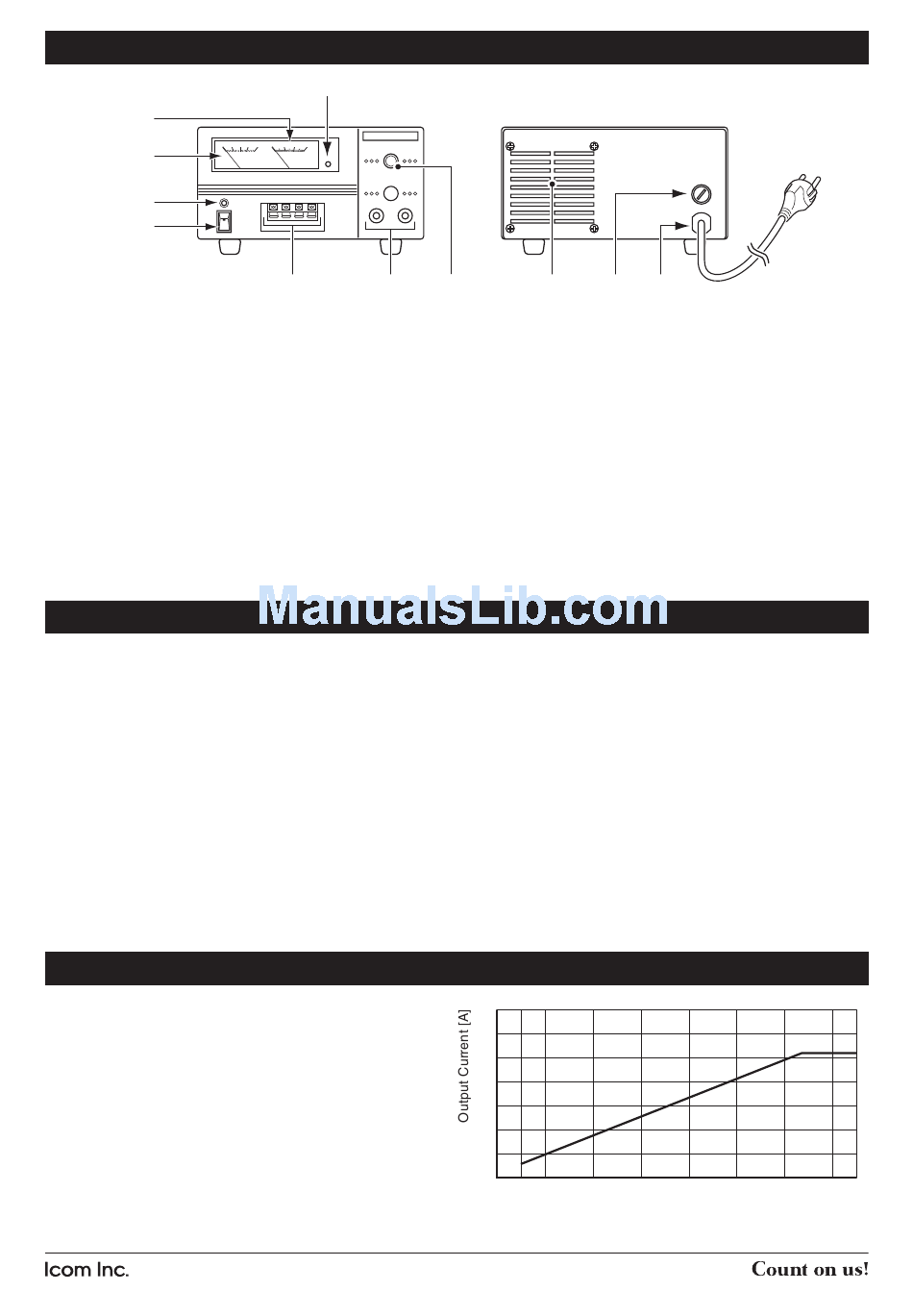

FRONT PANEL
q OVERLOAD INDICATOR
Lights red when the PS-300 is under the condition of over-
load or the + and _ lines are shorted.
w AMPERE METER
Shows the driving current.
e VOLTMETER
Shows the output voltage.
r POWER INDICATOR
Power indicator lights green when the PS-300 is turned
ON.
t POWER SWITCH
Turns the PS-300 power ON or OFF.
q Connect the AC power cable of the PS-300 to an AC out-
let.
w Turn the PS-300 ON, then adjust the suitable output volt-
age.
• " I " : ON (Power indicator lights green)
• "O" : OFF (Power indicator goes off)
e Turn the PS-300 OFF, and make sure the equipment's
power is also OFF.
r Connect the DC power cable to the PS-300 and the
equipment's DC power input.
t Turn the PS-300 ON.
y Turn the equipment ON.
u To turn OFF the system, turn the equipment power OFF,
then the PS-300 in sequence.
Current capacities of the PS-300 depend on their output
voltage as per the graph at right. (The graph shows typical
values for reference.)
1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan

PANEL DESCRIPTION

q
V A
+ – – +
– +
y u

CONNECTION AND OPERATION

CURRENT CAPACITY

i o !0
y DC OUTPUTS (Max. 3 A)
Connect DC power cables.
u DC OUTPUTS (Max. 30 A)
Connect DC power cables.
i CONTROLLER
Adjusts the DC output voltage within 1–15 V.
REAR PANEL
o COOLING FAN
!0 FUSE HOLDER
5 A fuse (F5AL250V) is installed.
!1 AC POWER CABLE
Connects to the AC outlet.

OVERLOAD AND SHORT CIRCUIT PROTECTOR

The PS-300 has overload and short circuit protection circuits.
When the PS-300 is under the condition of overload or the +
and _ lines are shorted, the PS-300 limits the output current
and the overload indicator lights red. In such a case, turn OFF
the PS-300, remove the source of the problem, wait several
seconds, then turn it ON again.
30
20
10
0 1 2 4
!1
6 8 10 12
Output Voltage [V]
