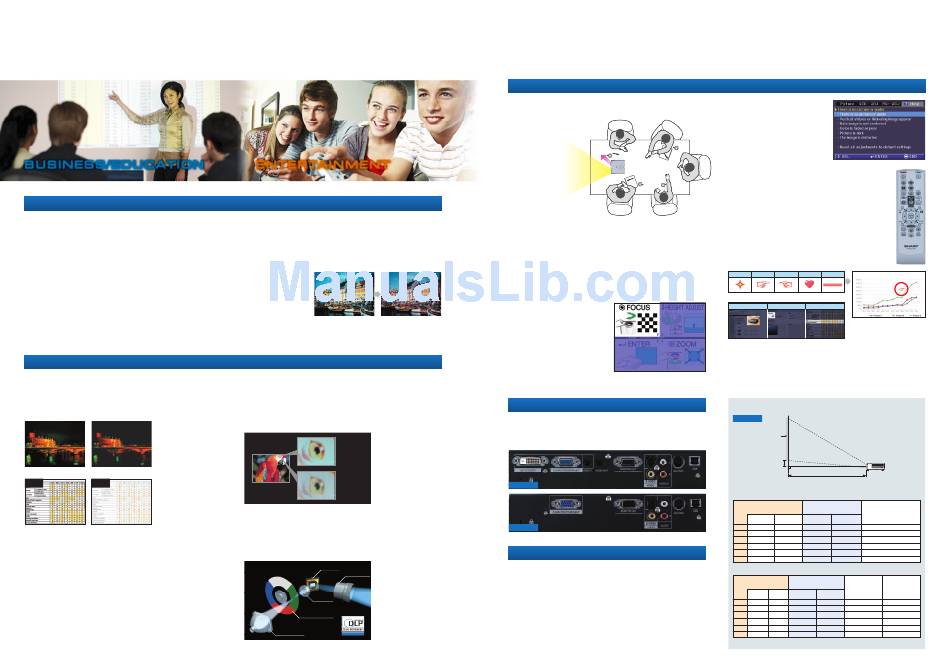

Sharp Notevision XR-32X Specification Sheet page 2

High-Quality Digital Projection from DVI Terminal
High-Brightness and High-Contrast Images
* XR-32X only
B U S I N E S S / E D U C A T I O N
Outstanding Performance and High-Quality Reliability
High Brightness of 2500 ANSI Lumens
Sharp's advanced optoelectronics technology maximizes light output, providing
crystal clear images in amazingly high brightness.
Low Fan Noise
The DLP ® high-speed colour wheel with non-contact Fluid Dynamic Bearings
together with ultra-quiet cooling fans reduce unpleasant noise, enabling quiet
operation at 29dB in Eco+Quiet mode. The fan noise is so quiet it causes no
disturbance even in meetings or school classes.
Filter-Free Design
The DLP ® sealed system prevents dust, dirt and smoke from entering core parts of the
optics to a much greater degree. The system also needs no filter and less maintenance,
resulting in lower cost of ownership and longer use.
Cutting Edge Technology Provides High-Quality Picture
2200:1 (XR-32X)/2000:1 (XR-32S) High-Contrast,
High-Quality Image
By utilizing the DLP optical system and Sharp's optical technology, the
®
projectors produce crisp details and sharper blacks in black parts thanks to a
2200:1 high contrast
Comparison of Dark Scenes
2200:1 400:1 ratio (XR-32X) (2000:1
for the XR-32S).
This system reproduces
crisp clear details not only
for scenery but even for
letters and graphs,
Comparison of Text and Graphics
2200:1 400:1 providing sharper blacks
in black parts.
XR-32X Models in the same class as these
generally provide a contrast ratio of 400:1.
DVI Terminal with DLP System for Full Digital Projection
®
(XR-32X only)
Full digital projection with the DVI input terminal and DLP system enables
®
virtually noise-free images from digital sources. The terminal also complies with
High-bandwidth Digital Content Protection (HDCP) to support digital video content
in high-definition.
IP Conversion Image Processing
Image Processing provides optimal video performance. The motion-adaptive
scan images produce smooth moving scenes and ensure smooth natural lines
and edges for 480I and 576I.
,
*
E N T E R TA I N M E N T
Long-Life High-Performance DLP Picture
®
With the DLP chip minimally absorbing high-output light, the projectors maintain
®
uniform colour reproduction capability for a long period of time. Also, the formation of
this device with finely structured mirrors provides stable performance and delivers
high-quality pictures for longer periods. In the XR-32X/32S, the chip contributes to a
long lifespan. In addition,
DLP ® projection
because there is no burn-in
or remaining afterimage,
the projectors are ideal for
still picture projection such
as for guidance board
After 4,100 hours
applications and projecting (The picture shows no significant deterioration
even after using the DLP ® chip 4,100 hours.)
CAD images.
* By RIT/Munsell Colour Science Laboratory Test
High-Resolution Seamless Images from DLP ® Chip
Using DLP ® chip, each pixel is individually composed of one of over a half a
million micromirrors to produce a high resolution, and the micromirrors lie at a
distance of merely one micron, providing a seamless finely detailed picture. Also,
high-speed on/off switching delivers smooth moving scenes.
High-Resolution Seamless Image Comparison
DLP
®
Aperture Ratio:
90%
(XR-32X/32S)
Aperture Ratio:
60%
3X Speed Colour Wheel
The projectors employ a colour wheel with a 3x speed engine, improving colour
break-up to an invisible level. Also, the non-contact Fluid Dynamic Bearings for
the high-speed rotating colour wheel axle have a longer lifespan.
DLP ® Chip
Projection Lens
Relay Lens
Colour Wheel (CW)
Projection Lamp
Plus A Variety of Convenient Functions for
Multimedia Entertainment, Business and Education
Intuitive Design and Functions to Support Presentation Convenience
Front Exhaust Engine
The new projector series has an exhaust engine on the front so that the viewers
can remain focused on the
screen without distractions
of noise and air which may
disturb viewers. Exhaust
air
Direct Power Off Switching
Direct Power Off lets users immediately unplug the projector and take it from the
location. In addition, it also helps control the power simultaneously for multiple
projectors by using the room's primary power switch with the auto restart function.
Quick Start
It takes only approx. 3 seconds to project the image.
Setup Guide for Interactive
Setup Guides
Operation
The Setup Guide provides intuitive OSD
images to show the next step
interactively for setup including focus,
zoom and height adjustment.
Setup guide is displayed after the projector is turned on.
Multiple Connections
Multiple Input Terminals
Projectors can be connected to DVD players, cable or satellite boxes, laptop and
desktop computers, HDTV tuners, VCRs and video game consoles.
XR-32X
XR-32S
Other Outstanding Features
• Condenser Lens Optics
Crisp detail, sharper black and ghost-less image.
• 4:3 and 16:9 Aspect Ratios and HDTV/DTV and DVD Compatible
• Image Shift Function
Images projected in 16 x 9 format can be vertically shifted for better viewing
in limited spaces.
• Theft Deterrent Functions: System Lock and Kensington
Security Standard Connector
• Key Lock Function
Interactive Help Menu
The Help Menu displays any problems
and assists the user in solving problems
with operation.
Presentation Assist Remote Control
A variety of functions can all be performed with the projector
remote control to aid your presentations including mouse control
and page up and down. In addition, the following functions have
been added for further performance.
Pointers: Five pointer icon shapes can be used to impressively
draw attention to your subject.
Spotlights: Three spotlight sizes, ranging from 1/25 to 1/9 or 1/8
the screen, provide visual effects to focus on the specified subject.
Pointer icons
Star Finger1 Finger2 Heart Underline
Spotlights
1/9 1/25 1/8
One-touch Advanced Picture Mode
Quickly and directly choose the appropriate settings for the picture mode and
lamp brightness to match the intended application.
 Correlation of the Projector to the screen
Side View
Screen
H
90° Lens centre
L
Screen Size and Projection Distance
NORMAL Mode (4:3)
Projection Distance from the
Picture size
bottom of the image
distance [L]
to the lens centre
Diag. Width (cm) Height (cm) Minimum Maximum
[H]
300" 240" (610) 180" (457) 36'10" (11.2m) — 7 9 / " (19cm)
16
200" 160" (406) 120" (305) 24'7" (7.5m) 28'4" (8.6m) 5 3 / " (13cm)
64
120" 96" (244) 72" (183) 14'9" (4.5m) 17'0" (5.2m) 3 1 / " (8cm)
32
100" 80" (203) 60" (152) 12'3" (3.7m) 14'2" (4.3m) 2 33 / " (6cm)
64
80" 64" (163) 48" (122) 9'10" (3.0m) 11'4" (3.5m) 2 1 / " (5cm)
64
40" 32" (81) 24" (61) 4'11" (1.5m) 5'8" (1.7m) 1 1 / " (3cm)
64
STRETCH Mode (16:9)
Projection Distance from the
Picture size Adjustable range of
bottom of the image
distance [L]
image position
to the lens centre
[S]
Diag. Width (cm) Height (cm) Minimum Maximum
[H]
±20
250" 218" (553) 123" (311) 33'6" (10.2m) 38'8" (11.8m) 27 19 / " (69cm) 27 / " (±52cm)
64 64
200" 174" (443) 98" (249) 26'9" (8.2m) 30'11" (9.4m) 21 53 / " (55cm) ±16 11 / " (±42cm)
64 32
±9
120" 105" (266) 59" (149) 16'1" (4.9m) 18'7" (5.7m) 13 3 / " (33cm) 13 / " (±25cm)
32 16
100" 87" (221) 49" (125) 13'5" (4.1m) 15'5" (4.7m) 10 59 / " (28cm) ±8 11 / " (±21cm)
64 64
±6
80" 70" (177) 39" (100) 10'9" (3.3m) 12'4" (3.8m) 8 47 / " (22cm) 17 / " (±17cm)
64 32
40" 35" (89) 20" (50) 5'4" (1.6m) 6'2" (1.9m) 4 23 / " (11cm) ±3 17 / " (±8cm)
64 64
* Allow a margin of error in the above values.
