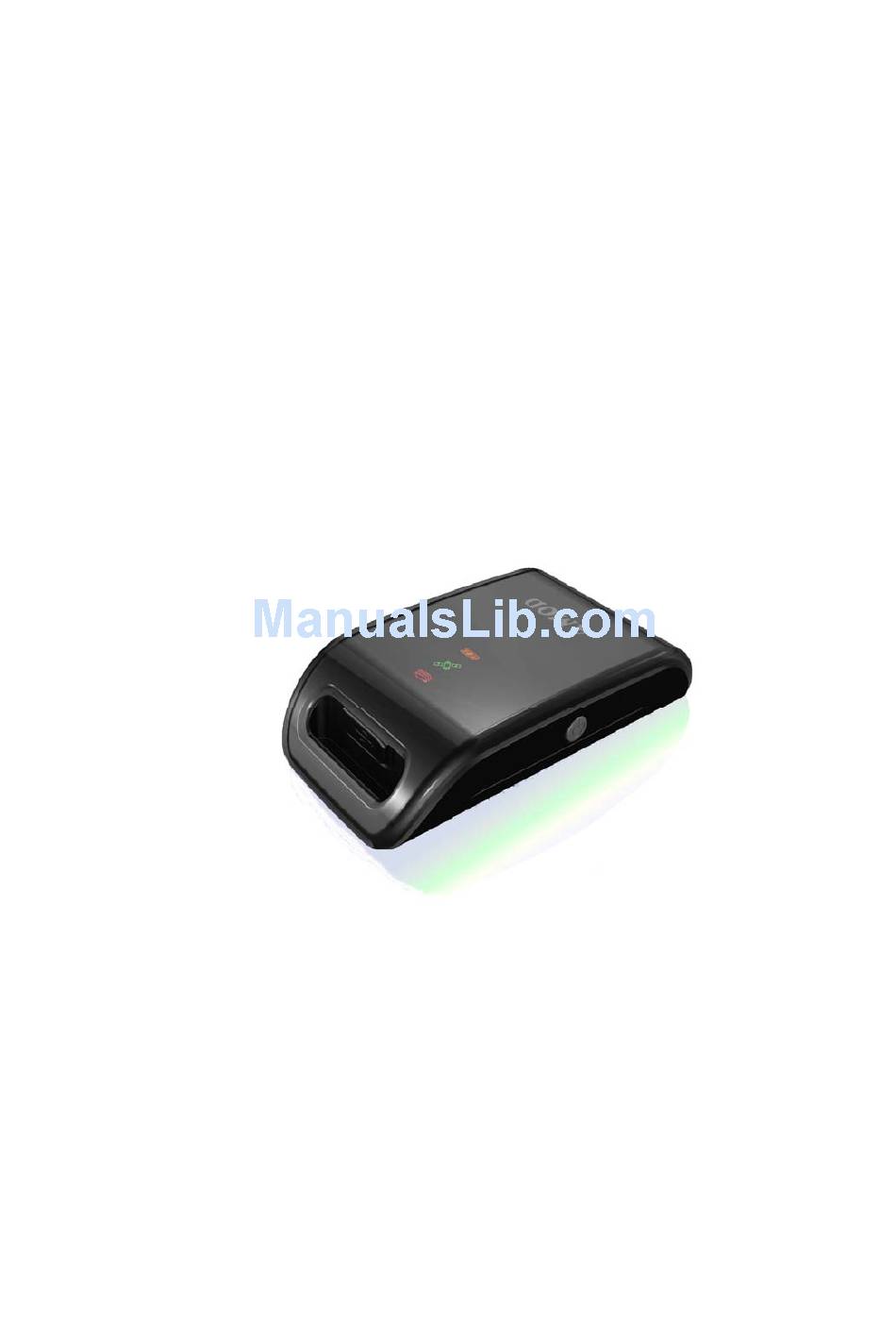

- Page 1 AMOD GPS Photo Tracker AGL3080 We Add More Fun to Photo Sharing! © Copyright AMOD Technology Co., Ltd. 8F, 46, Lane 10, Jihu Road, Neihu Taipei, Taiwan, 114, R. O. C. E-mail: sales@amod.com.tw...
-
Page 2: Table Of Contents
P A CK A GE CO NTE N TS ................. 21 CE RTI F I C AT IO NS ..................22 TR AD E M ARKS A N D C O PY RIGH TS ............. 22 February 2008 V2.0 AMOD Technology... -
Page 3: Overview
GPS location information. After that all you need to do is to click at the GPS-tagged picture and it will show its location on Google Map or other internet maps – let AGL 3080 tag... -
Page 4: In Case You Don't Know Yet - What Is Gps
LED’s will be lit once and then off, and the device is now turned off. Status LED’s There are three status LED’s on AGL3080 – Red (Storage Full), Green (GPS Status), and Amber (Battery GPS Status Storage Full Battery Power February 2008 V2.0 AMOD Technology... - Page 5 GPS Reset During normal operation, you can press the “MARK” button for about three to four (3 ~ 4) seconds to reset the GPS – the AGL3080 will re-start the GPS satellites searching without using satellite information already on-hand and stored internally. Because the set of GPS satellites data (the orbital and February 2008 V2.0 AMOD Technology...
-
Page 6: Set Up Mode
(a) The device would power off during setup mode if you do not press any button after 1 minute. (b) If system power is low, the battery led will be on and then device will be powered off. At this time, user February 2008 V2.0 AMOD Technology... -
Page 7: Install/Replace Battery
Using the Accompanying AMOD Photo Tracker Software to Tag Your Photo s You can install the AMOD Photo Tracker Software by clicking the Setup button (the setup file) in the included CD-ROM. You can specify which directory to install the Photo Tracker Software. An icon (short-cut) will also be created at the Desktop for easy access to the software tool. - Page 8 Import the GPS log from AGL3080 to PC Then you can import the GPS log by selecting the AMOD Photo Tracker Device. If you have previously imported the GPS log files, you can go to the directory to import them. Multiple log files can be selected simultaneously for import.
- Page 9 AGL3080 GPS Photo Tracker User Manual V2.0 Import photos Go to the directory where DSC photos are stored. Then select photos to be tagged – multiple picture files can be selected, for import. February 2008 V2.0 AMOD Technology...
- Page 10 (in hours) and adjust the information in the Input DSC Time field. Please note this change may also involve the adjustment of the date information in the Input DSC Time field. Adjust actual time February 2008 V2.0 AMOD Technology...
- Page 11 DSC time at all to avoid the complication/confusion this may cause. Display Pictures on Google Map The GPS tagged pictures can be shown on Google Map by clicking the “Show on Google Map” button. February 2008 V2.0 AMOD Technology...
- Page 12 Select and Display Multiple Photo Pictures Multiple pictures can be displayed on the Google Map simultaneously too. This can be done if they are selected simultaneously by clicking photo files while holding the Shift key. February 2008 V2.0 AMOD Technology...
- Page 13 To meet individual’s needs, AGL3080 Photo Tracker Software provides five different sizes (relative to the Google Map as background) of the photo pictures for user to select. The photo comes up with the default size on the display window. When clicking the magnifying button or shrink button, more sizes February 2008 V2.0 AMOD Technology...
- Page 14 AGL3080 GPS Photo Tracker User Manual V2.0 (Enlarged) (Shrinked) February 2008 V2.0 AMOD Technology...
- Page 15 When all are done, exit the AMOD Photo Tracker Software by right-clicking the top frame and select EXIT. [NOTE: We are not responsible for any alteration or deletion of pictures during the operation. Please always save a copy of the picture file as back up if needed.]...
- Page 16 GPSVisualizer (©2007 Adam Schneider, Schneider@pobox.com). The GPS tracks logged by AGL3080 can then be converted into various formats such as GPX, KML, etc. This makes AGL3080 a very powerful and handy tool, not limited only for GPS tagging of photos. February 2008 V2.0 AMOD Technology...
-
Page 17: Appendix - Status Led
360 hours Mode 4 GPS Led Flash Only RMC->5 sec 1,040,000 1440 hours Mode 5 Battery Low Led ON GGA/GSA/RMC/VTG->10 260,000 720 hours Mode 6 Battery Low Led Flash Only RMC->10 sec 1,040,000 2880 hours February 2008 V2.0 AMOD Technology... -
Page 18: Appendix - Preparations
3. Fasten the strip and the device can be carried conveniently Install Battery 1. Open the bottom cover to reveal battery compartment Please note the orientation of each battery is clearly marked. Incorrect battery placement may damage the device. February 2008 V2.0 AMOD Technology... - Page 19 AGL3080 GPS Photo Tracker User Manual V2.0 2. Insert Three (3) AAA Size Batteries 3. Close the Battery Cover Either regular or rechargeable batteries can be used. February 2008 V2.0 AMOD Technology...
-
Page 20: Trouble Shooting
AGL3080 was not used for a long time. The leakage in batteries drained the battery power. When not using the AGL3080, please take the batteries out and store them properly to maintain the battery’s power level. If the batteries are too old, replace with new ones. February 2008 V2.0 AMOD Technology... -
Page 21: Hardware Specification
95 % non-condensing Dimension 90 mm 45 mm 23 mm Weight ~ 50 g (not including battery) Package Conte nts Each box contains the following items: AGL3080 Hanging Strip & USB Cable CD-ROM (Manual, Software Tools) February 2008 V2.0 AMOD Technology... -
Page 22: Certifications
GPSVisualizer is registered and copyrighted by Adam Schneider, Schneider@pobox.com The AGL3080 and AMOD is registered trademark of AMOD Technologies Co., Ltd. AMOD Technology Co., Ltd. 8F, 46, Lane 10, Jihu Road, Neihu Taipei, Taiwan, 114, R. O. C. E-mail: sales@amod.com.tw February 2008 V2.0...
