AMOD ABG10868 User Manual

Mini-bluetooth gps receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Mini-Bluetooth GPS Receiver
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ABG10868 and is the answer not in the manual?

Questions and answers

Related Manuals for AMOD ABG10868

Summary of Contents for AMOD ABG10868

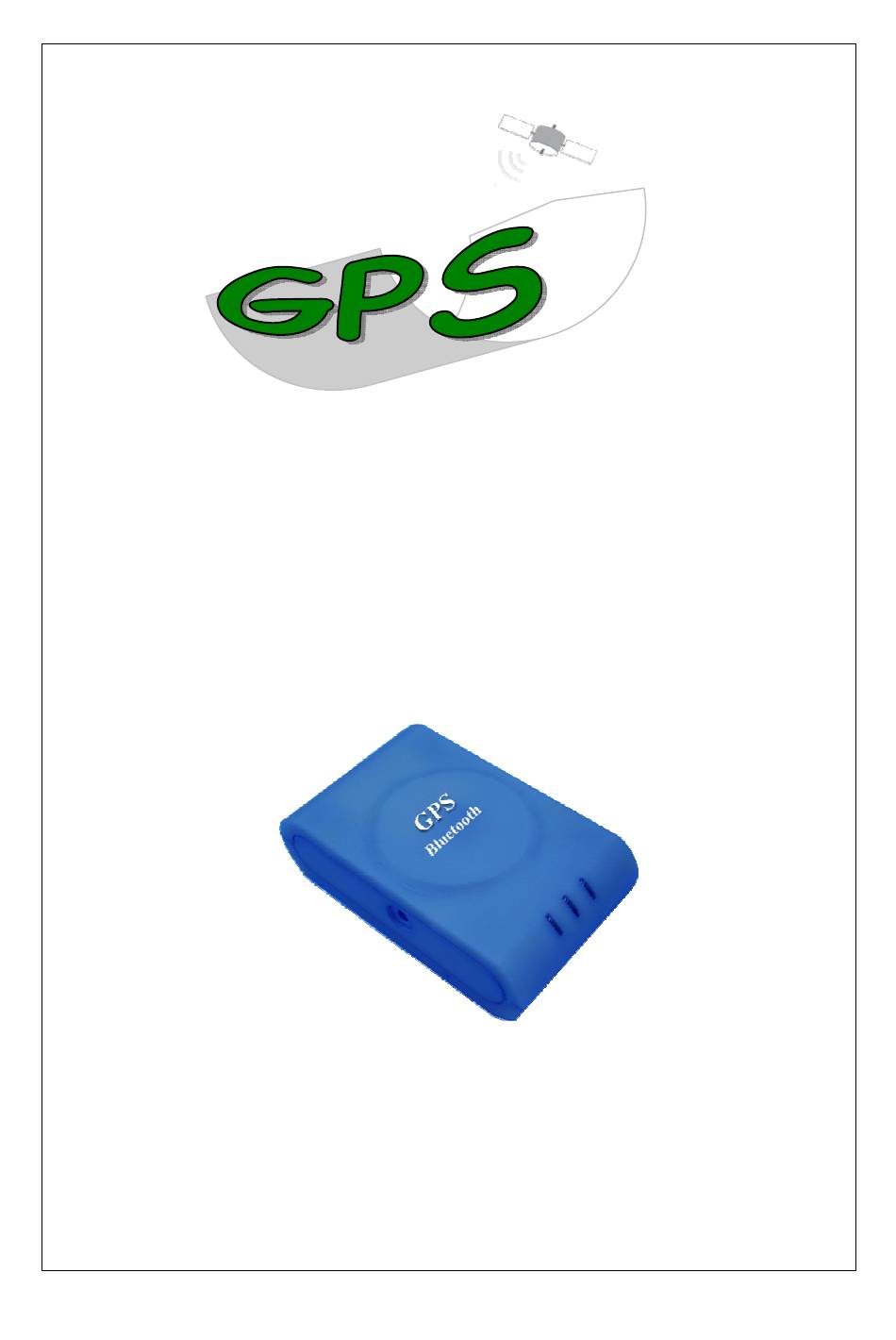

  • Page 1 Mini-Bluetooth GPS Receiver User Manual...
  • Page 2 Mini-Bluetooth GPS Receiver ©2005 AMOD All rights reserved. No parts of this work may be reproduced in any form or by any means – graphic, electronic, or mechanical, including photocopying, recording, taping, or information storage and retrieval systems – without the written permission of the publisher.
  • Page 3 FCC Notices This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

  • Page 4: Table Of Contents

    Basic Specifications TTFF Positioning accuracy Sensitivity Measurement data update time Power Limitations Output & Interface Physical Specification 3.10 Others 4. Operation of ABG10868 Device Description Mechanical Drawing LED Status Usage 4.4.1 Turn On AGB10868 4.4.2 Connection 4.4.2-1 Connect to PDA 4.4.2-2...

  • Page 5: Introduction

    8 seconds if the Bluetooth connection between the host and ABG10868 is lost. The red LED will be blinking to indicate the battery power level is low, on when charging the battery and off if the battery is fully charged.

  • Page 6: Packing List

    Packing List The package includes the following items. ABG10868 Bluetooth GPS receiver Car charger A/C Power Adapter (Optional) DC Car Charge Mini Bluetooth GPS Receiver A/C Power Adapter (Optional)

  • Page 7: Features

    2. Features The ABG10868, based on AMOD AGP1030 Bluetooth GPS receiver module with built-in rechargeable, removable lithium-ion battery has many smart and useful features. Without any wiring requirement, ABG10868 adds GPS positioning capability to any Bluetooth (SPP profile) enabled device.

  • Page 8: Technical Specification

    0.1 second every 8 seconds if the Bluetooth connection between the host and ABG10868 is lost or in standby mode Battery status: The red LED will be blinking to indicate the battery power level is low, on when charging the battery and off if the battery is fully charged.

  • Page 9: Measurement Data Update Time

    Acquisition sensitivity: -139dBm (average) or less in Normal mode 3.5 Measurement data update time: Measurement data update time: 1s 3.6 Power: Power source: Removable rechargeable lithium ion battery with 5V DC input charging circuit Operation time: 12 hours typical after full charge, continuous mode at 25℃ 3.7 Limitations: Altitude: <...

  • Page 10: Operation Of Abg10868

    Smart power saving feature (SPS): If the Bluetooth connection between the host and ABG10868 is lost, ABG10868 will turn off GPS automatically to save the energy. Bluetooth: Bluetooth chipset: RF: ST STLC2150 Baseband: ST STLC2415 Bluetooth frequency: 2.4 – 2.48GHz Bluetooth specification: V1.1 specification compliant...

  • Page 11: Led Status

    4.4.1 To turn on the ABG10868: When turn on the power of ABG10868, all the LED lights will blink one time. When there is a host Bluetooth device enables the connection between the Bluetooth and ABG10868, the blue LED will blink once every two seconds. When switch the power of the ABG10868 Bluetooth GPS receiver on, the GPS receiver will start to acquire the satellites.

  • Page 12: Connection

    4.4.2 Connection: 4.4.2-1 Connect to PDA: ABG10868 supports Bluetooth Serial Port Profile V1.1, works with any Bluetooth enabled device with Serial Port Profile. 3. Bluetooth is enabled 1. Click the Bluetooth icon at the right bottom of task bar 2. Turn Bluetooth On 5.
  • Page 13 7. Click Explore a Bluetooth 9. Once the PDA detect the device to detect Bluetooth Bluetooth GPS receiver. It device will show this new device in 8. Click the Next button the Wizard. Please select AGP1030BT-xxxxx 10. Select the Serial Port then 11.

  • Page 14: Verify The Connection

    12. Press the AGP1030BT-xxx 14. Once the connection is built, icon for 2 – 3 seconds, it will the AGP1030BT-xxx icon pop-up a menu will become green color 13. Select the Connect from the menu to build the connection 4.4.2.-2 Verify the connection Once you install the GPS View from the Installation CD, you can run the GPS View by click “GPS View”...

  • Page 15: Connect To Laptop With Bluetooth Device

    Press this button for 3 seconds will force GPS receiver do the Cold Start. 4.4.5 Smart Power Saving Feature The GPS circuitry of ABG10868 is turned off when the Bluetooth connection is lost. This intelligent power saving function could help ABG10868 conserve battery power.
  • Page 16 ABG10868 Mini Bluetooth GPS Receiver...
