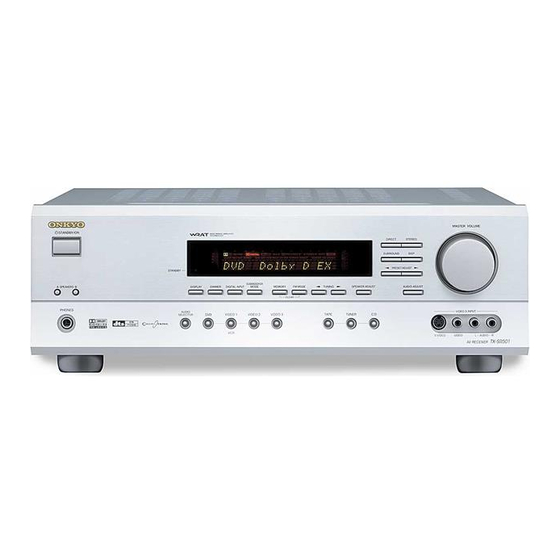

Introduction
• This Guide describes basic operation of this receiver and connected devices (CD, DVD etc.). For further information about the advanced
functions of this receiver, please refer to the main instruction manual.
• This Guide does not explain connection details for the unit's rear panel. Please refer to pages 10–23 of the main instruction manual for cor-
rect connection information. Otherwise, the entire A/V system may not work properly.
• For more information on the remote controller, refer to the main instruction manual.
Important notes
• If MUTING function is activated, the sound will be muted. Make sure MUTING is set to OFF.
• If the headphones are connected, no sound will be heard from the speakers. Do not connect headphones if you wish to listen to the
sound from the speakers.
COMPONENT VIDEO
ANTENNA
VIDEO 1 / 2 / 3
DVD IN
OUT
IN
Y
P
B
P
R
REMOTE
DIGITAL INPUT
CONTROL
OPTICAL
COAXIAL
2
1
IN
OUT
IN
L
L
SUBWOOFER
PRE OUT
R
R
CD
TAPE

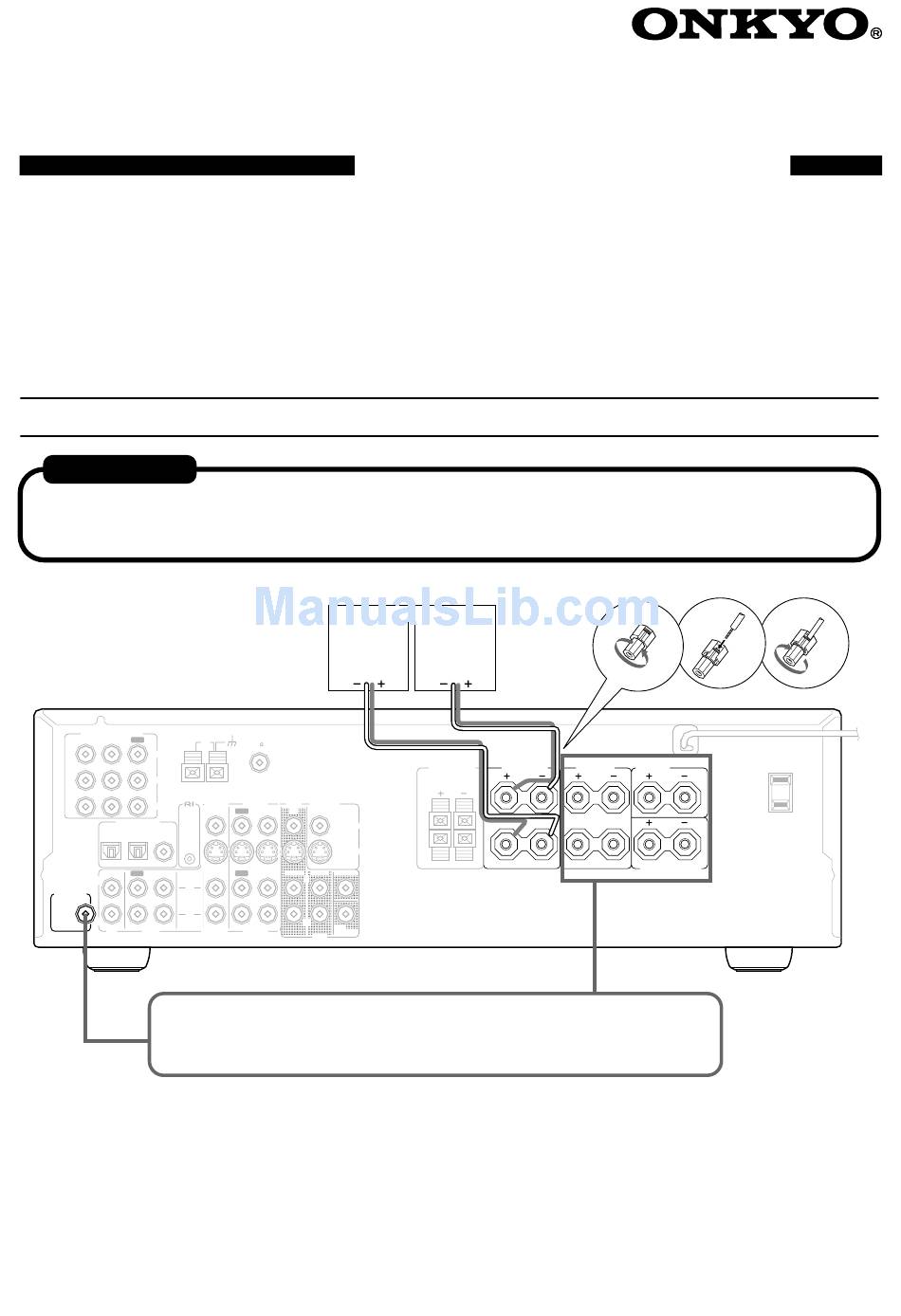

To enjoy surround sound, place the speakers properly as described in "Installing
