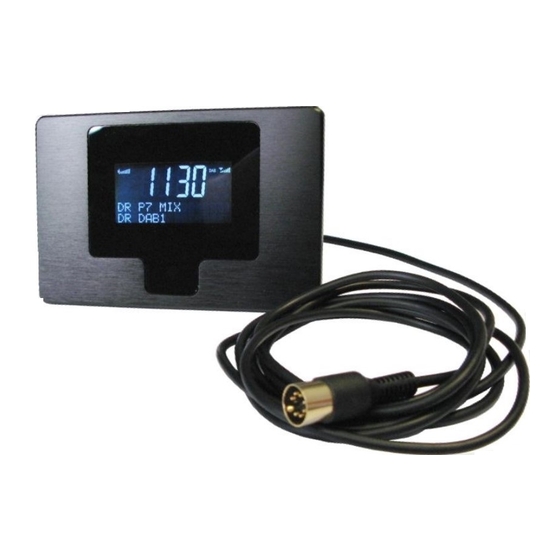

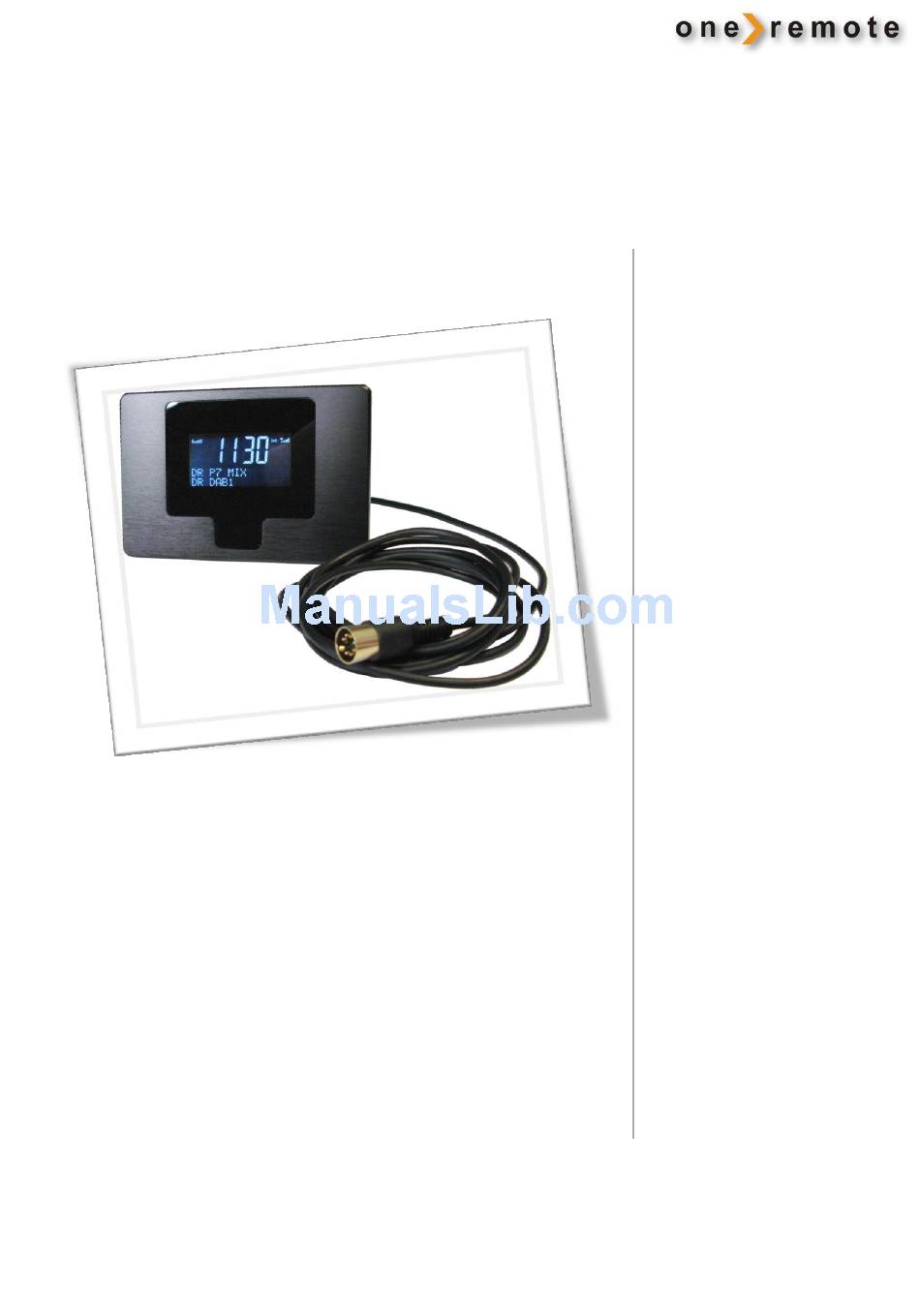

- Page 1 OneRemote DAB/ FM Tuner DabFM2 Type 30012646 Operable with B&O Remotes Only User Manual 30012646u2uk...
-
Page 2: Every Day Control
Everyday Control with Beo4, Beo5, Beo6 Everyday Control with Beolink 1000 Select Select Down Down Manual power on/ off Manual power on/ off DAB / FM DAB / FM Menu Menu 0 – 9 Select a pre-set station 0 – 9 Select a pre-set station Special Commands, used only by initial installation Special Commands, used only by initial installation Volume up... -
Page 3: Table Of Contents
List of Contents Every Day Control ....................page List of contents ......................page Getting started ......................page Direct or CableLink mode ..................page Factory settings ....................... page Installation ......................page Connection to B&O Equipment ................page Antenna connection ....................page Automatic power on and off .................. - Page 4 DabFM2 is equipped with a 7 pin DIN DataLink cable for connection to Bang & Olufsen equipment. Thus an adaptor cable is required for connection to equipment not having a DIN input socket. See below examples and the Option Programming section page 8.
-
Page 5: Getting Started
Getting Started This OneRemote DabFM2 tuner has been designed for operation in a Bang & Olufsen remote control system allowing full control with a Bang & Olufsen remote control terminal either directly or via connection to Bang & Olufsen equipment. -
Page 6: Installation
Connection to Bang & Olufsen Equipment This OneRemote DabFM2 tuner may be connected to any Bang & Olufsen BeoSound, BeoCenter, BeoMaster, BeoSystem or BeoVision TV and controlled with a Bang & Olufsen remote control terminal, but it may also be connected to equipment of any other brand and still be controlled with the Bang &... -
Page 7: Antenna Connection
Antenna Connection The OneRemote DabFM2 tuner may be connected to any antenna designed for FM and the DAB reception, if the supplied one is not sufficient. If the FM signal strength is not sufficient the reception will be noisy. If the DAB signal strength is not sufficient the reception is varying from disturbing ”bubbles”... -
Page 8: Option Programming
Option Programming Option programming is required only when installing the tuner. The programming is performed with a Bang & Olufsen remote control terminal by initiating a 5 button sequence within 8 seconds after powering up the tuner. When powering up the tuner the red control LED flashes for 8 seconds, and the programming has to be carried out before the control LED stops flashing. -
Page 9: Source & Option Selection
The following tables show the available input sockets on various Bang & Olufsen audio and video products, how to select them using a remote control terminal and what the corresponding option program of the One Remote DabFM2 tuner should be. -
Page 10: Beosound4, Beosound1
BeoSound 4 sockets. Use a OneRemote adaptor cable, type 39207438. If the MasterLink socket is MasterLink not used, the DabFM2 tuner might be connected and operated via a BeoLink Converter. See page 15 for details on connection of the BeoLink Converter 1611. - Page 11 Input Direct CableLink Source Selected Remarks Socket Option Option BeoSound Century Input Source Selected Direct CableLink Remarks Socket Option Option BeoSound 9000 Input Source Selected Direct CableLink Remarks Socket Option Option BeoSound 3000 BeoSound 3200 www.oneremote.dk Page 10...
-
Page 12: Beosoundouverture, Beosystem 2500, Beocenter 2500
In the CableLink mode numeric commands are not accepted. If the MasterLink socket is MasterLink not used, the DabFM2 tuner might be connected and operated via a BeoLink Converter. See page 15 for details on connection of the BeoLink Converter 1611. - Page 13 Input Socket Source Selected Direct CableLink Remarks Option Option In the CableLink mode numeric BeoCenter 2300 commands are not accepted. In the CableLink mode numeric commands are not accepted. In the CableLink mode numeric commands are not accepted. In the CableLink mode numeric commands are not accepted.
- Page 14 Option Option In the CableLink mode numeric BeoCenter 8000 TAPE2 commands are not accepted. Input Socket Source Selected Direct CableLink Remarks Option Option In the CableLink mode numeric BeoCenter 8500 TAPE2 commands are not accepted. BeoCenter 9000 BeoCenter 9500 Direct CableLink Input Socket Source Selected...
-
Page 15: Beosystem 3
Use a OneRemote adaptor cable, type 39207438. uetc. If the MasterLink socket is MasterLink not used, the DabFM2 tuner might be connected and operated via a BeoLink Converter. See page 15 for details on connection of the BeoLink Converter 1611. -
Page 16: Beolink Converter 1611/ 1612
BeoLink Converter using MasterLink and the AAL inputs. Connected to an audio master and programmed as a ”video source” the DabFM2 may be selected as that, VMEM as an example. Connected to a video master and programmed as an “audio source” the DabFM2 may be selected as that, ATAPE as an example. -
Page 17: Beolink Active
The OneRemote DabFM2 tuner may be connected to a Bang & Olufsen BeoLink Active with a vacant ‘PC’ socket. Thus active speakers in any link room allow for the installation of the DabFM2 tuner and the opportunity of having a local radio source controlled directly with the Bang &... -
Page 18: Bang & Olufsen Tv, All Models
Connection to a 21 Pin AV Socket on any Bang & Olufsen TV. Input Direct CableLink Source Selected Remarks Socket Option Option The input is a scart socket, a All B&O TV models Scart 21 pin AV socket. Use a OneRemote adaptor cable, BeoVision 10 AV1 - AV6...
