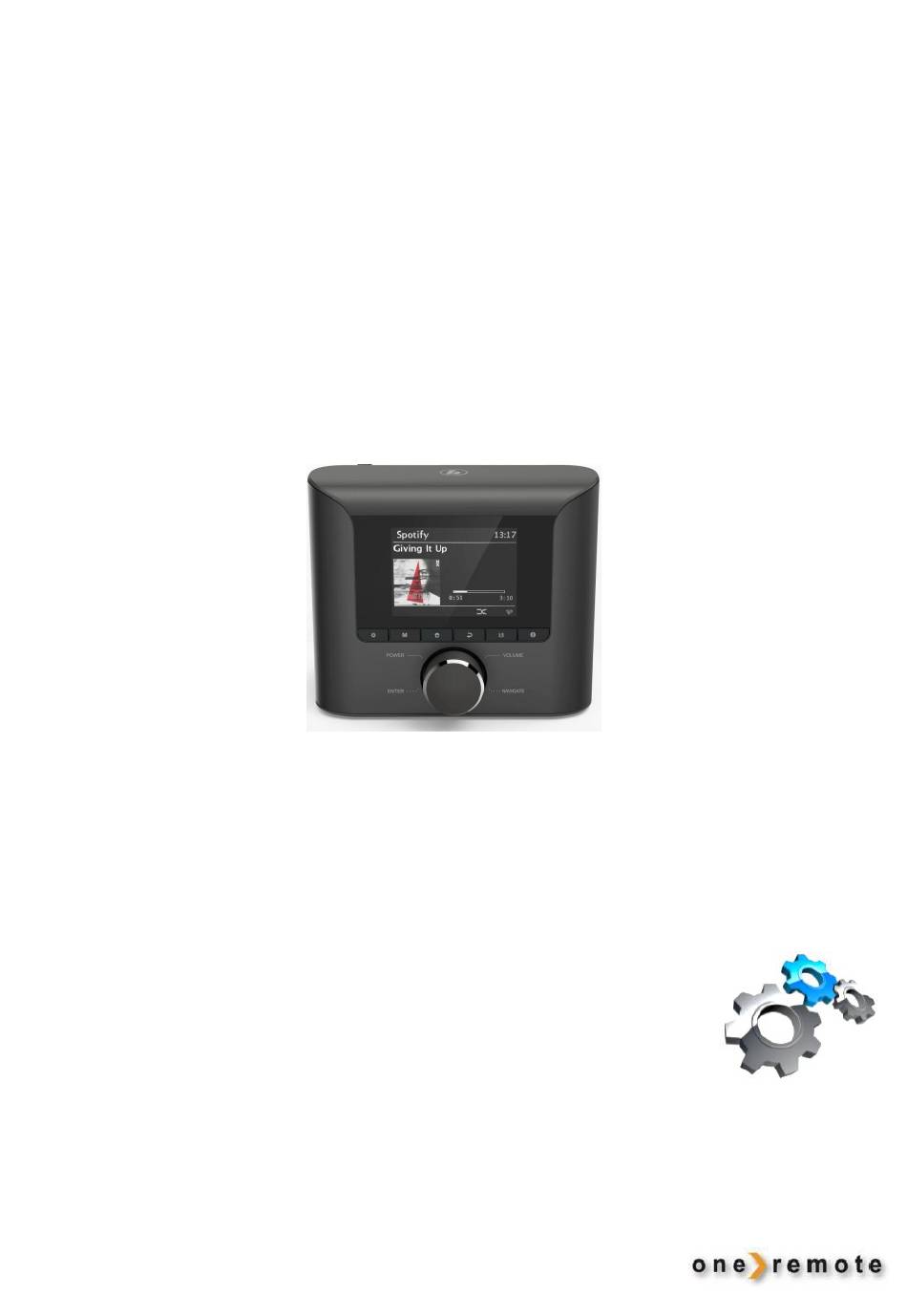

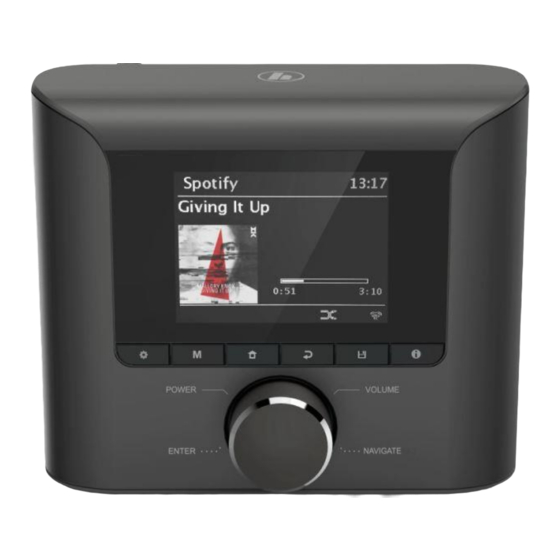

- Page 1 OneRemote DabWiFi6 Advanced Tuner for Bang & Olufsen Systems Handling DAB/DAB+ – FM - Bluetooth - Internet Radio Spotify Connect- Music Player Setup Guide Control with Bang & Olufsen Remotes 3001.2025.UK.S1...
- Page 2 www.oneremote.dk...
-
Page 3: Table Of Contents
Contents THIS GUIDE..............................5 The DabWiFi6 must be setup to FIT the Bang & Olufsen system ..................5 CONNECT DABWIFI6 WITH DEFAULT PERSONALITY..............6 VOLUME ................................7 INSTALLATION ............................. 7 CONNECTIONS .............................. 8 Antenna connection ................................8 OPTIONS ................................. 9 Source Key .................................. - Page 4 The BeoLink Converter connected to a Bang & Olufsen TV ..................24 BEOLINK ACTIVE – CONNECTION VIA A BEOLINK ACTIVE IN ANY LINK ROOM ....25 Connect the DabWiFi6 tuner via the PC input socket ....................25 OLDER BANG & OLUFSEN REMOTES ....................26...
-
Page 5: This Guide
This guide covers the connection of the DabWiFi6 tuner to a Bang & Olufsen system. Check the User Guide for the DabWiFi6 tuner for the daily control with a Bang & Olufsen remote. THE DABWIFI6 MUST BE SETUP TO FIT THE BANG & OLUFSEN SYSTEM When the DabWiFi6 tuner’s location in the Bang &... -
Page 6: Connect Dabwifi6 With Default Personality
Some Bang & Olufsen devices only have a single input socket. This socket might be activated via other commands than y / b. In these cases, the personality of the DabWiFi6 can be changed for it to power up on the suitable command like AAUX or CD or other else. -
Page 7: Volume
BeoSound, BeoCenter, BeoMaster or a BeoVision TV and is controlled with a Bang & Olufsen remote. DabWiFi6 may also be connected to equipment of all other brands, but it can only be controlled with a Bang & Olufsen remote. -
Page 8: Connections
CONNECTIONS ANTENNA CONNECTION The OneRemote DabWiFi6 tuner needs an antenna signal of sufficient strength and quality. If both DAB and FM channels are received the antenna shall provide a signal containing both frequencies. • If the FM signal does not provide a sufficient strength the reception is noisy and very poor. -
Page 9: Options
Option programming of the DabWiFi6 tuner is only required during the initial installation. A Bang & Olufsen remote is used for this programming activity. Programming the DabWiFi6 with one or more options makes the DabWiFi6 fit the actual Bang & Olufsen system that it is now a part of. -
Page 10: Source Key
Valid options are found in the tables below. From the factory the DabWiFi6 has the personality of an ATAPE/AMEM device. Thus, is can be connected to an input socket of a Bang & Olufsen device that is selected when pressed on the Bang & Olufsen remote. -
Page 11: Special Options
Enable Blue light. CONNECT THE DABWIFI6 TUNER TO BEOLAB 3500 A BeoLab 3500 in a link system may access a DabWiFi6 tuner connected to a Bang & Olufsen radio or TV in the same link system. As an example, the DabWiFi6 tuner may be connected to an ATAPE input socket on a radio or a VAUX socket on a TV. -
Page 12: Bang & Olufsen Equipment And Oneremote Options
The OneRemote DabWiFi6 tuner must be programmed with the correct option to operate in the actual Bang & Olufsen environment. Options may be programmed only at booting of the DabWiFi6, while the blue lamp is flashing. B&O Device Input Socket Source selected with B&O Remote. -
Page 13: Beosound 4
RCA IN Use a OneRemote adaptor cable, BEOSOUND 4 type 39207438. The DabWiFi6 may be added as an audio MasterLink source in a MasterLink system. If the MasterLink socket in a BeoSound 4 is vacant, the DabWiFi6 may be added via a BeoLink Converter 1611 and controlled as described below. -
Page 14: Beosound 9000
B&O Device Input Socket Source selected with B&O Remote. Remarks BEOSOUND 9000 B&O Device Input Socket Source selected with B&O Remote. Remarks BEOSOUND 3000 3200 www.oneremote.dk... -
Page 15: Beosound Ouverture
Input Socket Source selected with B&O Remote. Remarks BEOSOUND OUVERTURE If the MasterLink socket is not in use, the DabWiFi6 Masterlink tuner might be connected and operated via a BeoLink Converter, using this socket. The DabWiFi6 can then be accessed using or another video source. -
Page 16: Beocenter 2300
B&O Device Input Socket Source selected with B&O Remote. Remarks BEOCENTER 2300 See the chapter ”Advanced connection to AUX/TV socket”. B&O Device Input Socket Source selected with B&O Remote. Remarks TP/ ATAPE BEOMASTER 3300 www.oneremote.dk... -
Page 17: Beomaster 3500 4500
B&O Device Input Socket Source selected with B&O Remote. Remarks BEOMASTER 3500 4500 See the chapter ”Advanced connection to AUX/TV socket”. B&O Device Input Socket Source selected with B&O Remote. Remarks BEOMASTER 5500 AUX/ TV See the chapter ”Advanced connection to AUX/TV socket”. www.oneremote.dk... -
Page 18: Beomaster 6500 7000
B&O Device Input Socket Source selected with B&O Remote. Remarks BEOMASTER 6500 7000 PHONO TV/ AUX See the chapter ”Advanced connection to AUX/TV socket”. B&O Device Input Socket Source selected with B&O Remote. Remarks TAPE2 BEOCENTER 8000 B&O Device Input Socket Source selected with B&O Remote. -
Page 19: Beocenter 9300
B&O Device Input Socket Source selected with B&O Remote. Remarks PHONO BEOCENTER 9300 TAPE2 AUX/ TV See the chapter ”Advanced connection to AUX/TV socket”. www.oneremote.dk... -
Page 20: Advanced Connection To Aux/Tv Socket
This is an advanced setup that calls for a technician. The DabWiFi6 must then be option programmed as a video personality, i.e. a. The chosen video source must be one not used by other B&O devices in the room! - a. -
Page 21: Beosystem And Tv
Use a OneRemote adaptor cable, type 39207438. uand other audio sources. If the MasterLink socket is not Masterlink used, the DabWiFi6 tuner might be connected and operated via a BeoLink Converter. See page xx for details on connection of the BeoLink Converter 1611. -
Page 22: Connection To A 21 Pin Av Socket On Bang & Olufsen Tv
BeoVision 6 BeoVision 4 uand other audio sources. If the MasterLink socket is not MasterLink BeoVision 3 used, the DabWiFi6 tuner might be connected and operated via a BeoVision 1 BeoLink Converter. BeoSystem 3 See page xx for details on... -
Page 23: Beolink Converter 1611/ 1612
BEOLINK CONVERTER 1611/ 1612 The OneRemote DabWiFi6 tuner may be connected to a Bang & Olufsen stand-alone radio or TV, via a BeoLink Converter using MasterLink and the AAL inputs. Included in the MasterLink system DabWiFi6 connected with BeoLink Converter Both B&O Radio and B&O TV. -
Page 24: The Beolink Converter Connected To A Bang & Olufsen Radio
DabWiFi6 tuner may be connected to the Converter’s AAL input socket. Programmed as a video source like v, T, a, d, f, s. The DabWiFi6 tuner may then be controlled with the B&O radio’s remote. BeoLink Converter 1611 or 1612 used with a Bang & Olufsen audio... -
Page 25: Beolink Active - Connection Via A Beolink Active In Any Link Room
BEOLINK ACTIVE – CONNECTION VIA A BEOLINK ACTIVE IN ANY LINK ROOM CONNECT THE DABWIFI6 TUNER VIA THE PC INPUT SOCKET The OneRemote DabWiFi6 tuner may be connected to a Bang & Olufsen BeoLink Active with a vacant ‘PC’ socket. -
Page 26: Older Bang & Olufsen Remotes
The latest Beo4 version has the Pfunction as a small Joystick. If the B&O remote does not have a O key or a small joystick, the DabWiFi6 is controlled in accordance with the table ”Older Bang & Olufsen Remotes” in the User Guide.
