Impedance Balancing Volume Controls
INTRODUCTION
The SS4VC is a 4-Pair Speaker Selector with Impedance Balancing
Volume Controls which allows the operation of multiple pairs of
speakers when using one amplifier or receiver. Once the speakers
are connected to the speaker selector, individual pairs may be
turned on or off as desired using the push buttons on the front
panel. A separate volume control for each pair allows the ability to
control or limit speaker volume right at the selector.
INSTALLATION
Guidelines
• Use the Speaker Selector only with amplifiers rated at 125
watts per channel or less.
• The Removable Terminal Connectors on the SS4VC accept
wire up to 14 AWG. If you are not sure about the gauge of
the wire you intend to use, please consult your Proficient
installing dealer.
• To avoid possible damage to your amplifier, pay careful atten-
tion to the section titled "Operation" on page 3.
• One set of adhesive area labels are included for identifying
the locations of speakers on the front of the Speaker Selector.

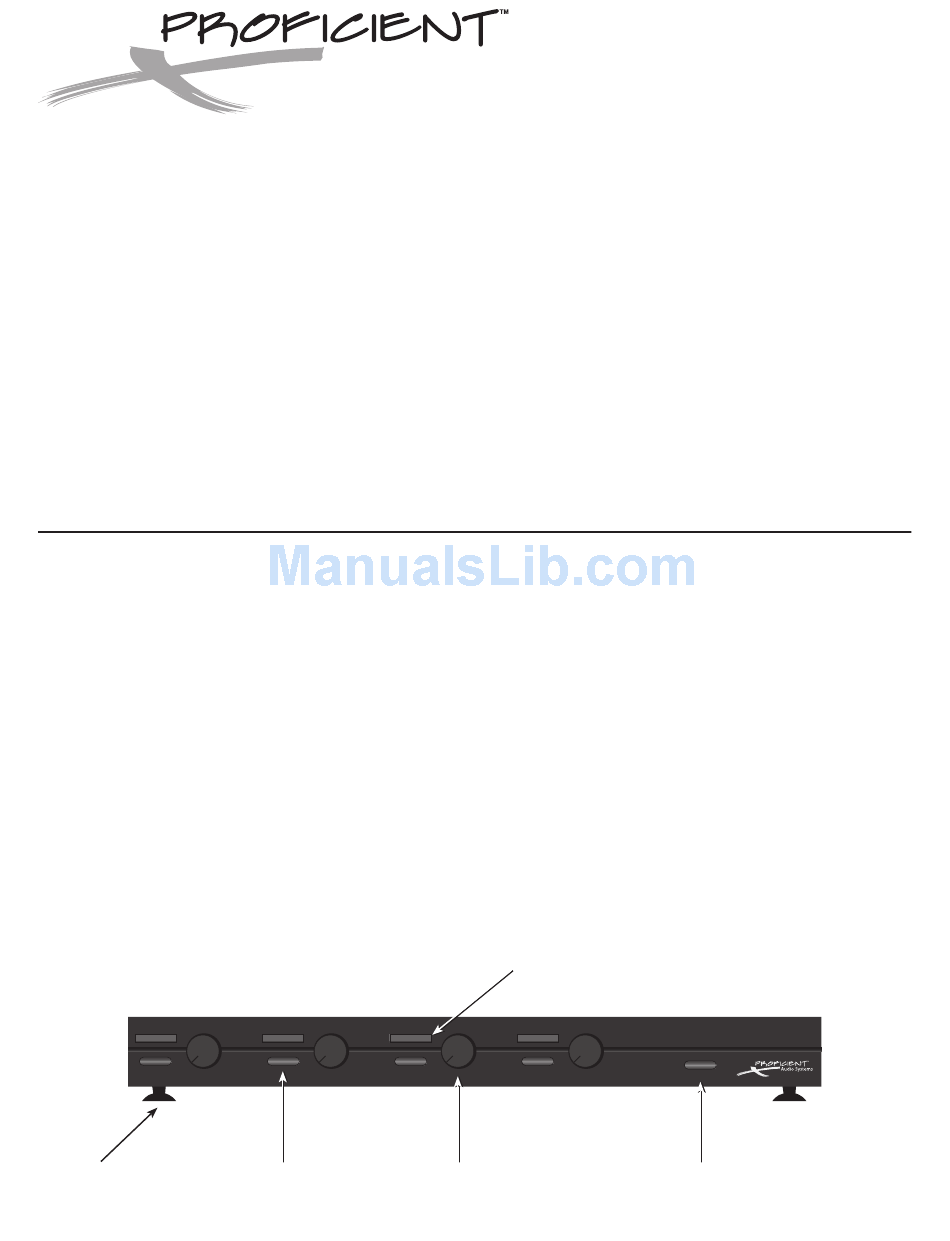

Diagram 1
KITCHEN
Suction Feet
Area Selector Button
Audio Systems
OWNER'S MANUAL
SS4VC
4-Pair Speaker Selector with
LIVING ROOM
BEDROOM
Volume Control Knob
When engaged, a protection circuit allows the amplifier to
operate safely, even when all selected speakers are playing.
Installation utilizing the Removable Terminal Connectors
makes wiring the selector to your speakers quick and easy.
With a simple turn of a screw, wires are solidly fastened and a
secure electrical bond is created. The process is quick, simple
and eliminates the worry of wires becoming loose.
• Do not daisy chain (hook the outputs of one selector into the
inputs of another) speaker selectors together.
• Do not connect impedance matching volume controls to the
speaker outputs of the selectors. Standard volume controls,
such as Proficient models VCS60, VC60SL and VC60AW should
be used if separate room control is desired.
Placement
The suction feet securely hold the SS4VC in place when buttons
are depressed.
Area Label
PATIO
Protection Button
SS4VC
PROTECTION
Advertisement
Table of Contents
Related Manuals for Proficient Audio Systems SS4VC
Summary of Contents for Proficient Audio Systems SS4VC
- Page 1 “Operation” on page 3. • One set of adhesive area labels are included for identifying The suction feet securely hold the SS4VC in place when buttons the locations of speakers on the front of the Speaker Selector.
- Page 2 The Removable Terminal Connectors simplify connecting the speaker and amplifier wires to the Speaker Selector. (See Diagram 2) Diagram 2 Riverside, CA USA Made in China Amplifier Speaker Speaker Speaker Speaker SS4VC Input Output Output Output Output Continuous Protection Continuous...
- Page 3 Labeling the front of the Speaker Selector (See Diagram 4) There is one set of adhesive labels included to be used on the front of the SS4VC. These labels make it easy to identify which area has been selected when the button is depressed. There are indentations above each button on the front of the Selector. Place the appropriate label into each of these locations.
-
Page 4: Specifications
Proficient products are sold exclusively through authorized dealers. Proficient products are not sold online by Proficient or its authorized dealers, Proficient Audio Systems. The foregoing is your sole and exclusive remedy for and this warranty is VOID if the products have been purchased from any internet breach of warranty.
