Owner's Manual
● INSTALLATION GUIDE
● OPERATION
● MAINTENANCE
● REPLACEMENT PARTS
● WARRANTY

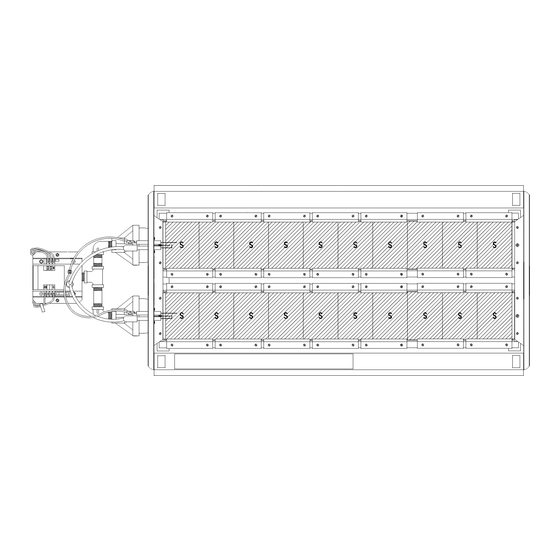

GAS-FIRED INFRA-RED
HEATER
MODELS:
SHR150/200
Caution: Read all instructions before use.
Retain them for future reference. All appli-
ances should be installed by a professional
gas heating equipment service person.
Improper installation, adjustment, altera-
tion, service or maintenance can cause
property damage, injury or death. Read
the instructions thoroughly before install-
ing or servicing this equipment.
WARNING
FOR YOUR SAFETY
DO NOT store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other heating equipment.
WHAT TO DO IF YOU SMELL GAS:
● DO NOT try to light any gas appliance.
● DO NOT touch any electrical switch: DO
NOT use any phone in your building.
● Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
● If you cannot reach your gas supplier, call
the fire department.
ZP-MEC3-BX-01A
SHR 150/200 Manual
RD: MAY, 2004
RL:1
KH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SHR150 and is the answer not in the manual?

Questions and answers

Related Manuals for Sterling SHR150

Summary of Contents for Sterling SHR150

  • Page 1 ● REPLACEMENT PARTS ● WARRANTY GAS-FIRED INFRA-RED HEATER MODELS: SHR150/200 Caution: Read all instructions before use. FOR YOUR SAFETY Retain them for future reference. All appli- DO NOT store or use gasoline or other flam- ances should be installed by a professional mable vapors and liquids in the vicinity of gas heating equipment service person.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Warnings Spark Ignition System Ratings Service Person’s Trouble Shooting Guide Unpacking Replacement Parts Heater Installation Diagram Choosing Heater Location List Minimum Clearance Main Burner Orifice General Mounting Instruction Procedure for Service warranty Claim Angle Mounting Customer’s record Ventilation Requirements Warranty Back Cover...

  • Page 4: Warnings

    2,000 feel above sea level, the input must be reduced by 4 percent for each 1,000 feet above sea level. WARNING Example: SHR150 installed at 4,000 feet altitude; Do Not alter the installed orifice in any manner. Improper alteration could result in Carbon...

  • Page 5: Heater Installation

    HEATER INSTALLATION Installation of Sterling Gas Fired Infra-Red in the U.S.A. or in Canada CSA B149.1-00 shall Heaters should conform to all Sterling Heating be followed. ANSI Z223.1, is available from the International Gas Association 8501 East Installation Design Procedures including ventila- tion.

  • Page 6: Choosing Heater Location

    CHOOSING HEATER LOCATION This model heater must be mounted with mini- WARNING mum clearances between the heater and sur- rounding combustible surfaces a shown in Table Be aware of good safety practices by wearing A, below. personal protective equipment such as gloves and safety glasses to avoid being injured by It should also be located with respect to building sharp metal edges in or around the heater and...
  • Page 7 B149.1-00. INSTALLATION OTHER THAN SPACE HEATING Use for processing applications voids the must be made by a Sterling distributor, or other warranty and C.S.A. certification. Any additional qualified agency, using factory specified and ap- changes, or conversions required in order for the proved parts.

  • Page 8: General Mounting Instruction

    Chain, with a working load of at least 200 lbs., is that you consult your Sterling Distributor for the recommended for hanging the heater by connect- proper procedure for your particular job.

  • Page 9: Angle Mounting

    ANGLE MOUNTING This heater is suitable for mounting angles with the short axis rotated in either direction as shown in Figure 3. Improper angle mounting can result in damage to the heater or unsafe operation. IMPORTANT: For either horizontal or angle mounting, the long axis of the heater must be level.

  • Page 10: Piping

    TESTING FOR LEAKS For Steps 4 and 5, apply a soap solution WARNING to all connections and joints. If bubbles All gas piping and connections must be tested for appear, leaks have been detected and should be corrected. leaks after the installation is completed. DO NOT use a match or open flame of any kind to The supply system should be checked test for leaks.

  • Page 11: Spark Ignition System

    SPARK IGNITION SYSTEM INFORMATION Sequence of Operation: 1. Supplies power to the electronic pulse- When the control is activated by the temperature generator circuit for the spark igniter. control’s request for heat, control performs a safe-start check that determines proper operation 2.

  • Page 12: Trouble Shooting Guide

    TROUBLE SHOOTING GUIDE SERVICE HINTS AND MAINTENANCE CAUSE AND CORRECTIONS TURN THERMOSTAT TO CALL FOR HEAT CHECK FOR LINE VOLTAGE POWER SUPPLY 24 VOLTS AT CONTROL TRANSFORMER REPLACE TRANSFORMER CHECK 24V WIRING FROM TRANSFORMER 24 VOLT AT CONTROL TO IGNITION CONTROL REPLACE CONTROL 24 VOLTS OUT CONTROL CHECK 24V WIRING FROM IGNITION CON-...

  • Page 13: Replacement Parts Diagram

    MAINTENANCE The efficiency of the heater can be impaired if it pilots or the burners refuse to function properly gets dirty. If the heaters are installed in areas after a summer shutdown. The burner passage- where considerable dust is present in the air, ways can be cleaned out by using a flexible brush periodic burner cleaning may be necessary.

  • Page 14: List

    REPLACEMENT PARTS LIST Series Reference Page 11 ITEM PART NAME SHR150L SHR150N SHR200L SHR200N Burner Assy. 53573-1 53573-1 53576-1 53576-1 Orifice Support 49950-2 49950-2 49950-2 49950-2 Street Elbow 13503-G2 13503-G2 13503-G2 13503-G2 Nipple 2” 13504-G3 13504-G3 13504-G3 13504-G3 52629-1 52629-1 52629-1 52619-1 Nipple 3”...
  • Page 15 ECOSCHWANK36 ECOSCHWANK52 JA276 Transformer ORIFICE REPLACEMENT MODEL NO NATURAL (N) PROPANE/LIQUID PETROLEUM (LP) SHR150 46655-G18 (2) (DMS #27) 49955-G5 (2) (DMS #38) SHR200 49955-40 (2) (DMS #18) 49955-G6 (2) (DMS #32 ALTITUDE ORFICE CONVERSION CHART STAN- FOR USE AT ALTITUDES ABOVE (FEET)

  • Page 16: Procedure For Service Warranty Claim

    CUSTOMER’S RECORD Keep for your records. Record the information concerning your New Sterling Gas-Fired Infra-Red Heater. The Model Number and Serial Number will be found on the rating plate. Date of Purchase_______________ Sterling Model No. _________________Serial No.___________...

  • Page 17: Warranty

    18 months from the contingency beyond its control, including war, date of shipment by Sterling of the heater, for any government restrictions or restraints, strikes, fire, parts which Sterling’s examination shall disclose flood, or short or reduced supply of raw material, to its satisfaction to be defective.

This manual is also suitable for:
