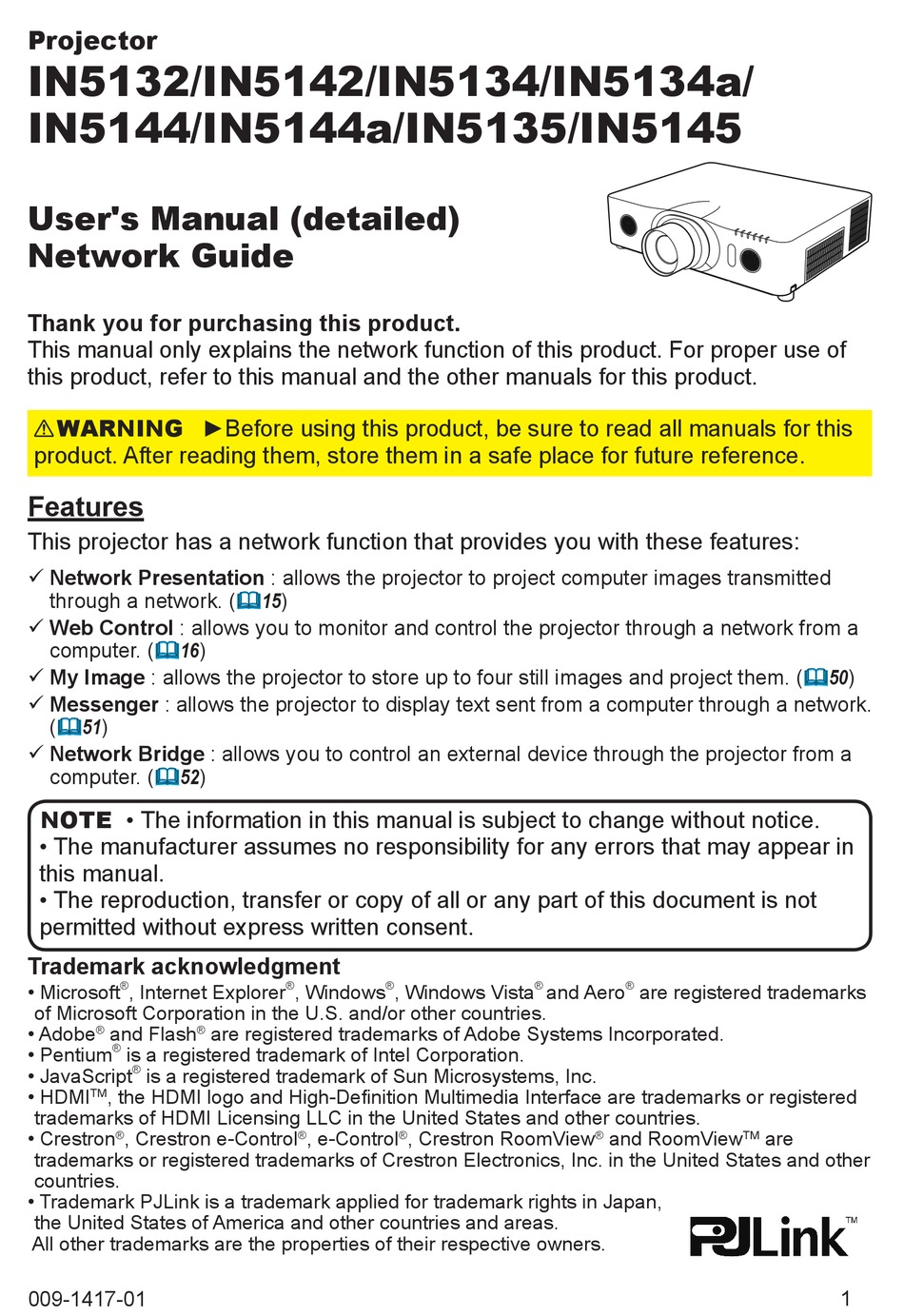

Projector
IN5132/IN5142/IN5134/IN5134a/
IN5144/IN5144a/IN5135/IN5145
User's Manual (detailed)
Network Guide
Thank you for purchasing this product.
This manual only explains the network function of this product. For proper use of
this product, refer to this manual and the other manuals for this product.
WARNING
product. After reading them, store them in a safe place for future reference.
Features
This projector has a network function that provides you with these features:
ü Network Presentation : allows the projector to project computer images transmitted
through a network. (&15)
ü Web Control : allows you to monitor and control the projector through a network from a
computer. (&16)
ü My Image : allows the projector to store up to four still images and project them. (&50)
ü Messenger : allows the projector to display text sent from a computer through a network.
(&51)
ü Network Bridge : allows you to control an external device through the projector from a
computer. (&52)
NOTE
• The information in this manual is subject to change without notice.
• The manufacturer assumes no responsibility for any errors that may appear in
this manual.
• The reproduction, transfer or copy of all or any part of this document is not
permitted without express written consent.
Trademark acknowledgment
®
• Microsoft
, Internet Explorer
of Microsoft Corporation in the U.S. and/or other countries.
• Adobe
and Flash
®
®
®
• Pentium
is a registered trademark of Intel Corporation.
®
• JavaScript
is a registered trademark of Sun Microsystems, Inc.
• HDMI
, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered
TM
trademarks of HDMI Licensing LLC in the United States and other countries.
• Crestron
, Crestron e-Control
®
trademarks or registered trademarks of Crestron Electronics, Inc. in the United States and other
countries.
• Trademark PJLink is a trademark applied for trademark rights in Japan,
the United States of America and other countries and areas.
All other trademarks are the properties of their respective owners.
009-1417-01
►Before using this product, be sure to read all manuals for this
®
, Windows
are registered trademarks of Adobe Systems Incorporated.
, e-Control
®
®
®
, Windows Vista
and Aero
, Crestron RoomView
®
®
are registered trademarks
and RoomView
®
TM
are
1
