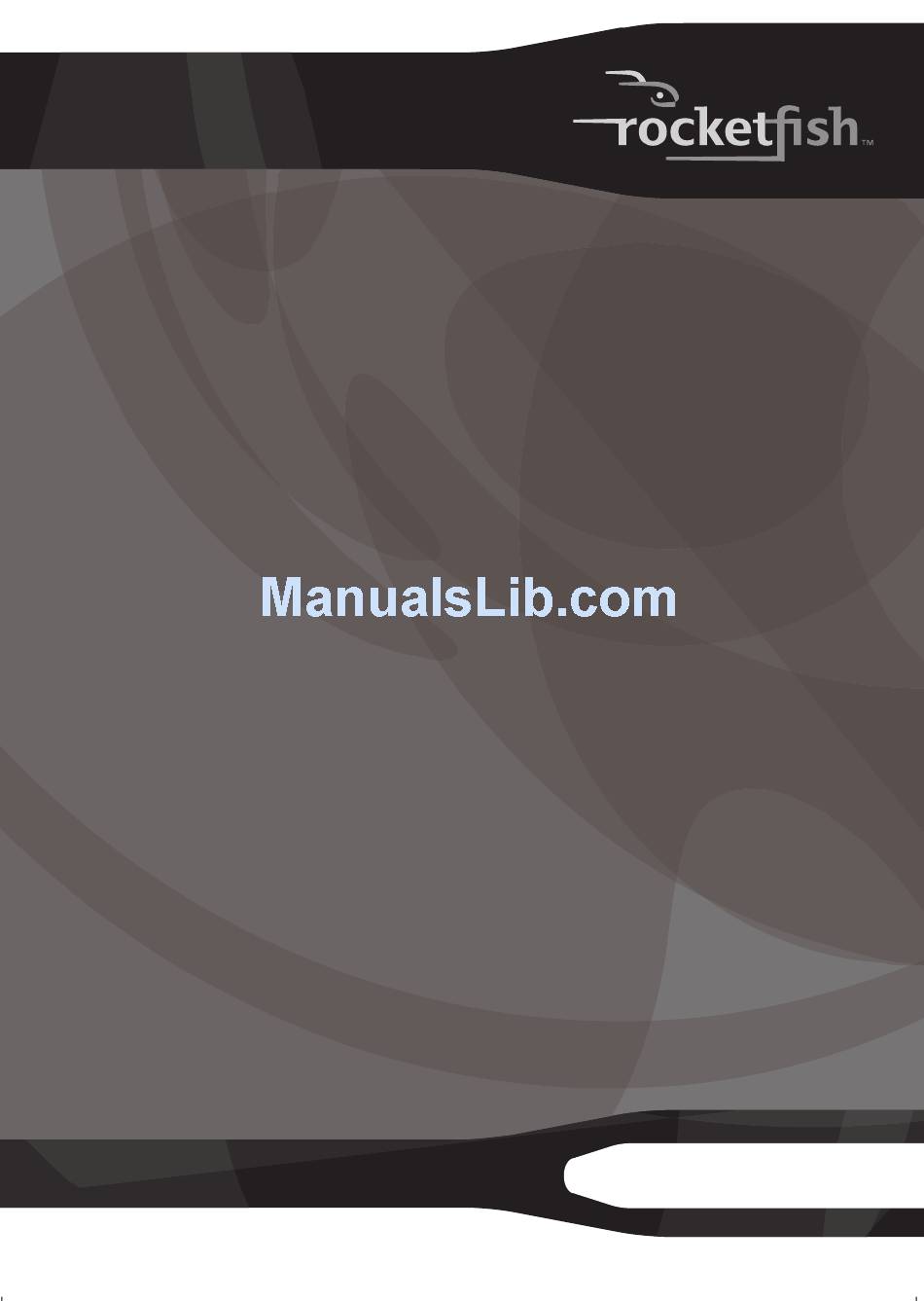

Page 1: Watt Power Supply
550 Watt Power Supply RF-550WPS User Guide... -
Page 3: Table Of Contents
Legal notices ..............11 One-year limited warranty.........13 Introduction Thank you for choosing this RF-550WPS power supply unit (PSU). Please read this manual carefully and follow the instructions before installing the PSU. The RF-550WPS power supply complies with the newest Intel ATX12V version 2.3 specifications. -
Page 4: Safety Information
Safety information WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS DEVICE TO RAIN OR MOISTURE. The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. -
Page 5: Features
To make sure you connect your power supply correctly, check your motherboard and graphics card manuals for compatibility before connecting RF-550WPS to any of your devices. : Cable Management This product uses color coded sockets and cables for ease of use. Only use the plugs in the sockets with the same color ends. - Page 6 : Make sure that you connect the PSU (Power supply unit) to local input AC voltage only. Setting the incorrect voltage can damage the power supply and connected equipment and may void your warranty. The RF-550WPS is compatible with 115 VAC and 230 VAC input voltage.
-
Page 7: Specifications
IEC-1000-3-2 Class D Appendix DC output voltages DC spec +12 V1 +12V2 +5V +3.3V -12V +5VSB Amps 18.0 A 18.0 A 15.0 A 24.0 A 0.3 A 3.0 A Max power 432 W 130 W 3.6 W 15 W RF-550WPS... -
Page 8: Main Power Connector
Wire configuration Model/Wires 20+4-pin EPS 12 V 5.25" HDD Serial ATA 3.25” floppy PCI-E 6-pin main power 8 (4+4)-pin drive RF-550WPS Main power connector Voltage Color Color Voltage Black Orange +3.3 V Yellow +12 DC +5 V Yellow +12 DC... - Page 9 +12 V connector 8 (4+4)-pin Color Signal Black Black Black Black Yellow/Black +12 VDC Yellow/Black +12 VDC Yellow/Black +12 VDC Yellow/Black +12 VDC PCI Express connector Color Signal Yellow +12 VDC Yellow +12 VDC Yellow +12 VDC Black Black Black RF-550WPS...
-
Page 10: Floppy Drive Connector
Floppy drive connector Color Signal +5 VDC Black Black Yellow +12 VDC SATA power connector Color Signal Yellow +12 VDC Black +5 VDC Black Orange +3.3 VDC... -
Page 11: Legal Notices
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. RF-550WPS... - Page 12 This Class B digital apparatus complies with Canadian ICES-003. Copyright © 2009 Rocketfish. Rocketfish and the Rocketfish logo are trademarks of Best Buy Enterprise Services, Inc. Other brands and product names are trademarks or registered trademarks of their respective holders.
-
Page 13: One-Year Limited Warranty
Product is determined to be defective by an authorized Rocketfish repair center or store personnel, Rocketfish will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the property of Rocketfish and are not returned to you. - Page 14 7601 Penn Avenue South, Richfield, Minnesota, U.S.A. 55423-3645 © 2009 Best Buy Enterprise Services, Inc. All rights reserved. ROCKETFISH is a trademark of Best Buy Enterprise Services, Inc. Registered in some countries. All other products and brand names are trademarks of their respective owners.
- Page 15 RF-550WPS...
- Page 16 7601 Penn Avenue South, Richfield, MN 55423-3645 USA © 2009 Best Buy Enterprise Services, Inc. All rights reserved. ROCKETFISH is a trademark of Best Buy Enterprise Services, Inc. All other products and brand names are trademarks of their respective owners.
