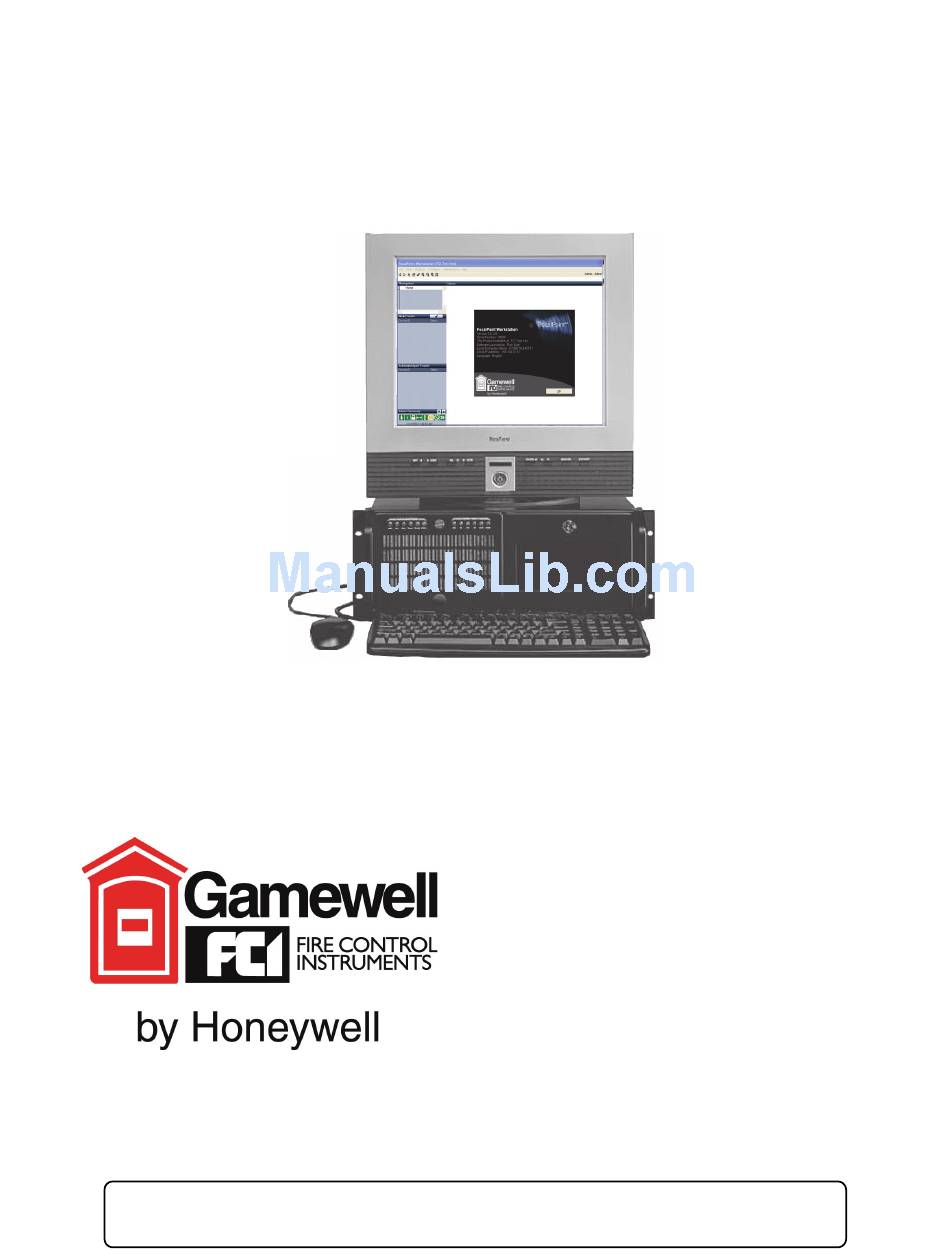

- Page 1 FocalPoint™ System Utilities User’s Guide — FocalPoint™ Gateway Installation & Operation Manual Copyright © 2010 All Rights Reserved Published in U.S.A. P/N: 52649 B3 ECN: 10-030 12 Clintonville Road, Northford, CT 06472, 203-484-7161, FAX 203-484-7118 www.gamewell-fci.com...
-
Page 2: Important Information
IMPORTANT INFORMATION This manual is designed for use by factory trained installers WARNING: Touching components, which are and operators of the Gamewell/FCI FocalPoint™ System. improperly installed, applied or operated, could be All illustrations, functional descriptions, operating and hazardous and possibly fatal. Short circuits could installation procedures, and other relevant information are cause arcing that could result in molten metal injuries. - Page 3 WIRING CONSIDERATIONS SYSTEM RE-ACCEPTANCE TEST A Gamewell/FCI fire alarm control panel contains power- To ensure proper system operation, this product must be limited circuits. You cannot connect external sources of tested in accordance with NFPA 72, Chapter 7. Re- power to these circuits without invalidating their approval. acceptance testing is required after any modification, repair, or adjustment to system hardware, wiring, or programming.
- Page 4 LIMITATIONS OF FIRE ALARM SYSTEMS explosions (caused by escaping gas, improper storage of flammable materials, etc.). Gamewell/FCI recommends that smoke and/or heat Heat detectors do not sense particles of combustion and detectors be located throughout the protected premises are designed to alarm only when heat on their sensors following the recommendations of the current edition of the increase at a predetermined rate or reaches a National Fire Protection Association Standard 72, the...
-
Page 5: Table Of Contents
Figure 2.6 600 Series Router Serial Cable Connection................19 2.5.2: 600 Series Panel Serial Data Connections..................19 Figure 2.7 Direct Serial Data Connection Using the IF602 Supplied Cable........19 Figure 2.8 Direct Serial Data Connection Using the Gateway Supplied Cable ........20 2.5.3: FCI Panel Serial Data Connections ....................20 Figure 2.9 E3 Serial Cable Connection ....................20... - Page 6 Table of Contents Section 4 FPT Gateway Operation ..................33 4.1: Gamewell Panel Groups ..........................33 4.1.1: Procedure ............................33 4.2: Event Handling ............................34 4.2.1: Handling Special Circumstance Events.....................34 4.2.2: Node Mapping ...........................34 4.3: Device Commands ............................35 Table 4.1 Common Gamewell/FCI Device Commands ...............35 4.4: About FCI Point ID Formats for Off Normal Events ..................35 Table 4.2 FCI 7200 Point ID Formats for Off Normal Events.............35 Table 4.3 FCI 7100 Point ID Formats for Off Normal Events.............35...
-
Page 7: Section 1 Fpt Gateway Overview
FocalPoint™ Workstation. • Monitors Gamewell/FCI networks over an IP network. • Is configured using the FocalPoint Gateway Config Tool. The FPT Gateway is compatible with theses Gamewell/FCI panels. Table 1.1 FPT Gateway Compatibility IF602 7100 IF610 7200 IF632 IF654 IF658 UL requires the Gamewell/FCI 7200 and E3 panels to have a two line DACT in addition to the gateway for event reporting. -
Page 8: Figure 1.2 Advanced Fpt Gateway Network - Fci
FPT Gateway Overview Product Description Workstation Gateway 7200 Other Technologies LAN/WAN/Internet/Intranet Gateway Workstation Figure 1.2 Advanced FPT Gateway Network - FCI NOTE: Turn on the remote annunciator supervision on the router to which the gateway connects for the networked Gamewell panels. NOTICE TO USERS, INSTALLERS, AUTHORIES HAVING JURISDICTION, AND OTHER INVOLVED PARITES This product incorporates field-programmable software. -
Page 9: Agency Listings
Agency Listings FPT Gateway Overview 1.2 Agency Listings NOTE: UL 864, 9th Edition—FocalPoint™ systems work with products that have been UL 864, 9th Edition listed as well as products that have not received UL 864, 9th Edition certification. Operation of systems that are comprised of equipment that is UL 864, 9th Edition listed together with products that are not UL 864, 9th Edition listed requires the approval of the local Authority Having Jurisdiction (AHJ). -
Page 10: 3: Retrofit Applications
Operations of the gateway with products not tested for UL 864 9th Edition has not been evaluated and may not comply with NFPA 72 and/or the latest edition of UL 864. These applications will require approval of the local Authority Having Jurisdiction (AHJ). • IF602 • IF610 •... -
Page 11: Related Documentation
Related Documentation FPT Gateway Overview 1.3 Related Documentation The following is a list of documentation resources related to a UL listed FocalPoint™ system. • FocalPoint™ Workstation (52561) NOTE: The contents of this manual are important and must be kept in close proximity of the hardware. - Page 12 FPT Gateway Overview Related Documentation FocalPoint™ Gateway Installation & Operation Manual - P/N: 52649:Rev: B3 2/11/10...
-
Page 13: Section 2 Fpt Gateway Installation
Section 2 FPT Gateway Installation WARNING: Installation Improper installation, maintenance, and lack of routine testing could result in system malfunction. 2.1 Required Equipment The FPT Gateway requires the following: FPT Gateway Assembly (P/N: FPT-GATE) The following are shipped with the FPT Gateway: •... -
Page 14: 1: Gateway Board Layout
FPT Gateway Installation Installation Overview • “Cable Connections” on page • “Power Connection” on page 2.2.1 Gateway Board Layout +24VDC Power RJ45 Ethernet EIA-232 Port Mode Button Reset Button +3VDC Lithium Connector Connector Battery Figure 2.1 FPT Gateway PC Board Layout Reset Button The Reset button is used to cycle power to the PC board. -
Page 15: Cabinet Installation
Cabinet Installation FPT Gateway Installation 2.3 Cabinet Installation Mount the Gateway cabinet on in inside wall per local requirements. Step 1. Use the provided door lock key to unlock the cabinet’s door. Step 2. Remove the cabinet’s door from the back box (reinstall the door when installation is complete). -
Page 16: Hardware Installation
FPT Gateway Installation Hardware Installation 2.4 Hardware Installation Step 1. Install the PNET-1 between the gateway cabinet’s standoffs using the supplied hex nut (#4). Step 2. Ground the PNET-1 to the cabinet using the supplied hex nut (#6). Step 3. Install the FocalPoint™ PC board on the gateway cabinet standoffs using the supplied screws (#4). -
Page 17: Figure 2.4 Gateway Parts Mounting - 2
Hardware Installation FPT Gateway Installation Figure 2.4 Gateway Parts Mounting - 2 FocalPoint™ Gateway Installation & Operation Manual - P/N: 52649:Rev: B3 2/11/10... -
Page 18: Cable Connections
FPT Gateway Installation Cable Connections 2.5 Cable Connections WARNING: Serial Port Connection Unless expressly stated otherwise, the FPT Gateway interface requires the exclusive use of any communication port or terminal to which it connects. The shared use of any communication port or terminal by this gateway and any ancillary device, such as CRTs or printers, may interfere with or completely negate the function of this gateway. -
Page 19: Figure 2.5 Gateway Cable Connections
2.5.2 600 Series Panel Serial Data Connections Serial Cable Supplied with IF602 Panel To J6 Connector on IF602 Panel DB9 Adapter Plug Figure 2.7 Direct Serial Data Connection Using the IF602 Supplied Cable FocalPoint™ Gateway Installation & Operation Manual - P/N: 52649:Rev: B3 2/11/10... -
Page 20: Figure 2.8 Direct Serial Data Connection Using The Gateway Supplied Cable
FPT Gateway Installation Cable Connections Serial Cable Supplied with Gateway (DB9 to Leads Cable P/N: 75267) Ground Ground To RS232 Connector on 600 Series Panel (excludes 602) DB9 Connector Figure 2.8 Direct Serial Data Connection Using the Gateway Supplied Cable NOTE: For information about which 600 Series panel’s connectors is used for direct serial data connections between the gateway and the 600 Series panel consult your respective Gamewell/FCI panel’s documentation or contact Technical Support. -
Page 21: Power Connection
Power Connection FPT Gateway Installation 2.6 Power Connection The power requirements for a FPT Gateway are +24VDC @ 330 mA nominal and battery backup in accordance with local code requirements. For Canadian installation, The FPT Gateway must be powered by a ULC listed Fire Alarm Control Unit or a ULC listed power supply for fire application that meets the following specifications. -
Page 22: 1: Wiring Restrictions
FPT Gateway Installation Power Connection 2.6.1 Wiring Restrictions NOTE: All wiring connections are supervised and power limited.* *Except for the serial connection to a 7100 panel. NOTE: The cable to a 7100 must be in properly sized conduit and less than 20 feet long. The serial connection from the FPT Gateway to the 7100 panel is not supervised. -
Page 23: Section 3 Fpt Gateway Configuration
Section 3 FPT Gateway Configuration 3.1 Default FPT Gateway Selection Procedure NOTE: All components in an FocalPoint™ system that required IP addresses must use a static IP address. The FocalPoint Gateway Config Tool, which is installed at the same time as the FocalPoint™ Workstation software application, is used to configure network parameters of the FPT Gateway. -
Page 24: Fpt Gateway Configuration Procedure
FPT Gateway Configuration FPT Gateway Configuration Procedure 3.2 FPT Gateway Configuration Procedure 3.2.1 IP Address Setting Step 1. Select the highest level entry in the Nodes list column hierarchy. Figure 3.1 Gateway Node Selection Step 2. Select File >Login to gain editing control of the selected gateway. The Gateway Login window displays. -
Page 25: Figure 3.3 Gateway Ip Configuration
FPT Gateway Configuration Procedure FPT Gateway Configuration Step 4. Change the default FPT Gateway IP address so it will be added onto your IP network. The gateway default IP values are: • IP Address: 192.168.1.2 • Subnet Mask: 255.255.255.0 • Gateway: 0.0.0.0 NOTE: To return the gateway to the factory default IP Configuration setting values use the Mode button on the GW PC board. -
Page 26: 2: Panel Configuration Settings
FPT Gateway Configuration FPT Gateway Configuration Procedure 3.2.2 Panel Configuration Settings Step 1. Select Panel Configuration in the Nodes list. The Property/Value fields display. Step 2. Select a panel in the Network Type field’s list of choices. Step 3. If the FocalPoint Gateway is connected to an E3 panel then make the Node Map changes that match your selection made in Network Type field by clicking on the value and selecting True or False from the list. -
Page 27: 3: Time Settings
FPT Gateway Configuration Procedure FPT Gateway Configuration 3.2.3 Time Settings The time settings consists of setting the SNTP server address which dictates GMT (Greenwich Mean Time) for your network and then setting up the Time Zone Configuration fields to synchronize the gateway to GMT of the SNTP Server. SNTP Configuration Step 1. -
Page 28: Figure 3.5 Gateway Time Settings
FPT Gateway Configuration FPT Gateway Configuration Procedure Time Zone Configuration Step 6. Click on the Time Zone Configuration entry in the Nodes column. Figure 3.5 Gateway Time Settings Step 7. Click in the Value field adjacent to GMT Minute Offset Property, type in the entry, and then press the keyboard enter key. -
Page 29: 4: Login Password Settings
FPT Gateway Configuration Procedure FPT Gateway Configuration 3.2.4 Login Password Settings The first time the gateway is started the factory default password is used (44444444 - eight fours), after the initial configuration it is highly recommended that you change the password. Step 1. -
Page 30: 5: Ip Address Change Using An Alternate Method
FPT Gateway Configuration FPT Gateway Configuration Procedure 3.2.5 IP Address Change Using an Alternate Method NOTE: This method of changing the IP address requires that the gateway’s PC board Reset button be pressed (refer to “Reset Button” on page 12) for the change to take affect. When the gateway is connected to your IP network you may not be able to see the gateway from the gateway configuration tool because no IP route is available. -
Page 31: Gateway And System Communication Configuration
Gateway and System Communication Configuration FPT Gateway Configuration 3.3 Gateway and System Communication Configuration The FocalPoint™ Workstation software application is used to establish communication between the FPT Gateway and the FocalPoint™ System so the Workstation can start to monitor the system. The Configuration Tool references a gateways as a networks 3.3.1 Add a Network Connection to the Workstation NOTE: The Workstation must be logged into before any of its settings can be configured. - Page 32 FPT Gateway Configuration Gateway and System Communication Configuration About Adding a New Network Connection The Admin User creates a Network name and then adds a gateway. Network Names and gateway connections are created using the Configuration Tool. The Configuration Tool is launched from Workstation’s main menu.
-
Page 33: Section 4 Fpt Gateway Operation
Section 4 FPT Gateway Operation FPT Gateway operation is defined as a FocalPoint™ system device reporting an event through the gateway to the Workstation(s), and the Workstation user’s task of handling of those events and the command control of devices. 4.1 Gamewell Panel Groups On the Gamewell panels you can setup points to be in groups. -
Page 34: Event Handling
FPT Gateway Operation Event Handling 4.2 Event Handling The FocalPoint™ Workstation uses the FPT Gateway as the server in a client/server model. When the FPT Gateway is installed, configured, and communicating with the Workstation and a Gamewell/FCI device, the Workstation will be able to receive events and send commands, if applicable, to those devices. -
Page 35: Device Commands
Device Commands FPT Gateway Operation • When the gateway receives a silence event for the panel that is not on the network it will annunciate the panel is silenced on the Workstation, even though the panel is not attached. • When the gateway receives a reset event for the panel that is not on the network it will annunciate the panel has been reset on the Workstation, even though the panel is not attached. -
Page 36: Table 4.4 Fci E3 Point Id Formats For Off Normal Events
FPT Gateway Operation About FCI Point ID Formats for Off Normal Events Table 4.3 FCI 7100 Point ID Formats for Off Normal Events ALARM = “AL” FAULT TEST = “FT” OUTPT FAIL = “OU” VERY DIRTY = “VY” ALERT = “AR” FAULT = “FL”... -
Page 37: Table 4.5 Gamewell/Fci 7200 Panel Cards
About Auto-created Points FPT Gateway Operation The Gamewell/FCI 7200 has several types of cards that can be installed. The loop devices (detectors, modules, etc.) connect to the different cards. For example an ALU and an AEU card both can be addressed as card 1. The point ID will include the card type. For example a module is addressed as module 56 and is attached to the first loop on ALU card 1. - Page 38 FPT Gateway Operation About Auto-created Points By default a panel does not have any information programmed into Dictionary Item 2. For panel setup the panel’s programmer has to manually select one of the factory default “Dictionary Item 2” values to have the Workstation auto-create the appropriate icon for the point. NOTE: If the panel programmer uses customer strings for the Dictionary Item 2 entry, the FocalPoint™...
-
Page 39: Section 5 Focalpoint Gateway Config Tool Reference Information
Section 5 FocalPoint Gateway Config Tool Reference Information 5.1 About the FocalPoint Gateway Config Tool The FocalPoint Gateway Config Tool interface is used to display configuration information about FocalPoint network and the FocalPoint™ Gateway. The FocalPoint Gateway Config Tool uses an Windows Explorer-style collapsible/expandable Nodes list. -
Page 40: 4: Time Zone Configuration Fields
FocalPoint Gateway Config Tool Reference Information Field Descriptions 5.2.4 Time Zone Configuration Fields Figure 5.4 Time Settings Field Descriptions GMT Reference (Greenwich Mean Time) GMT Minute Offset - Is used to synchronize the time of day between the gateway and SNPT Server ("SNTP Configuration Fields"). -
Page 41: 5: Panel Properties Fields
Menu Descriptions FocalPoint Gateway Config Tool Reference Information 5.2.5 Panel Properties Fields Refer to “Panel Configuration Settings” on page 26 for procedural information. Figure 5.5 Panel Configuration Property/Value Field Descriptions General Panel Settings • Network Type - Is used to select a Gamewell/FCI panel type. •... - Page 42 FocalPoint Gateway Config Tool Reference Information Menu Descriptions FocalPoint™ Gateway Installation & Operation Manual - P/N: 52649:Rev: B3 2/11/10...
- Page 43 Manufacturer Warranties and Limitation of Liability Manufacturer Warranties. Subject to the limitations set forth herein, Manufacturer warrants that the Products manufactured by it in its Northford, Connecticut facility and sold by it to its authorized Distributors shall be free, under normal use and service, from defects in material and workmanship for a period of thirty six months (36) months from the date of manufacture (effective Jan.
- Page 44 Gamewell-FCI 12 Clintonville Road Northford, CT 06472-1610 USA 203-484-7161 fax 203-484-7118 www.gamewell-fci.com...
