User Manual
NOTE: To ensure this system works safely and to its fullest potential, please read the User Manual carefully before
use, and keep it handy for future reference. See important Safety Information on Page 5.

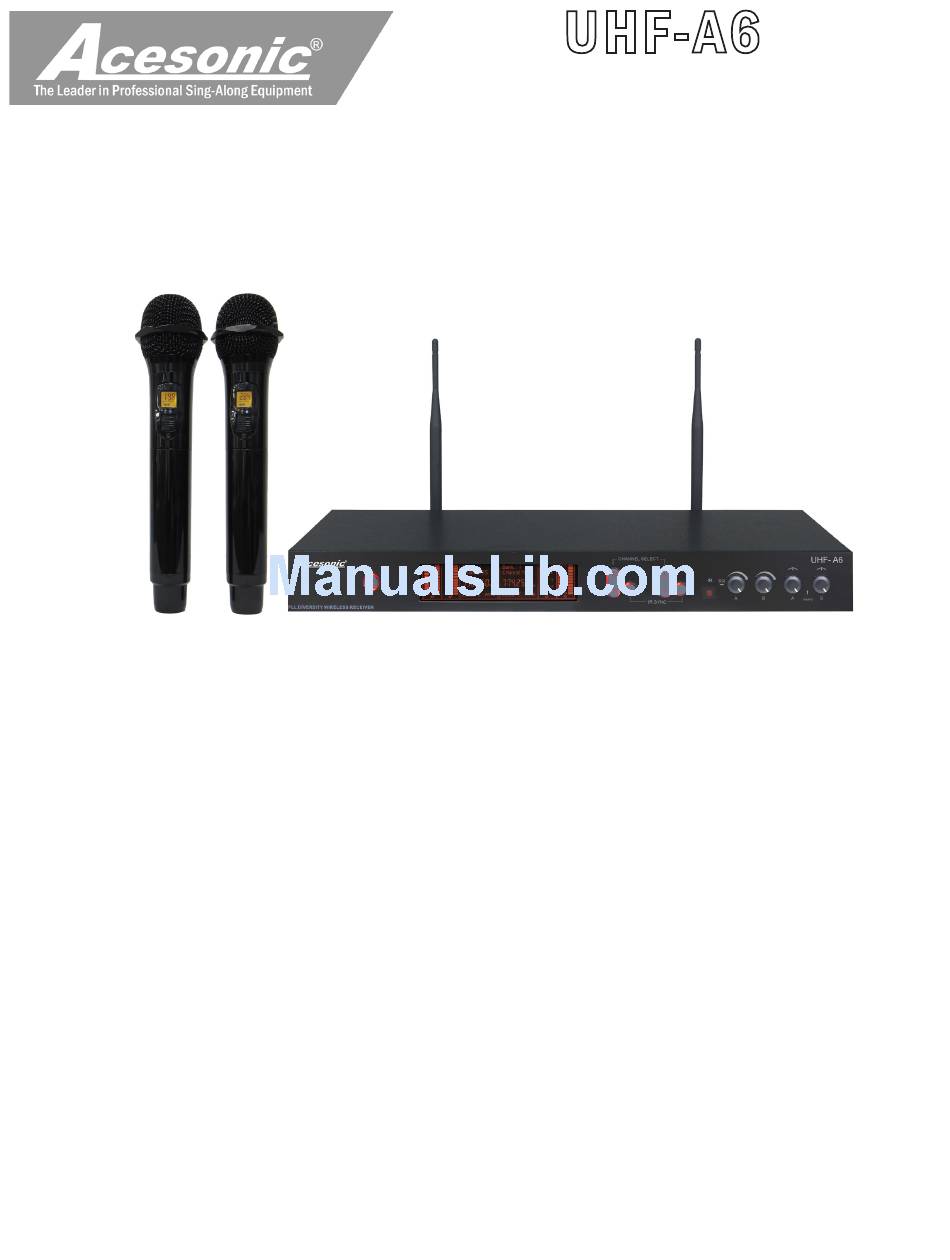

Thank you for purchasing Acesonic's UHF-A6 Commercial UHF True Diversity Wireless Microphone System.
Acesonic takes pride in providing its customers with only the most advanced and highest quality products on
the market.
With proper care and use you will get many years of satisfying use from your Acesonic product. Be sure to keep
original packaging in case re-shipping is required for returns or repairs.
Care and cleaning: Use a slightly damp cloth to clean the front panel and other surfaces of the UHF-A6.
Do not use the device in areas that are wet or prone to dampness. Always allow enough room below and around
the device to provide sufficient air flow for cooling when it is being used.
Table of Contents
First Things First .................................................1
Included & Optional Accessories ........................1
Receiver Front and Rear Panel Functions ............2
Microphone Functions ........................................2
Body-Pack Receiver Functions ............................3
UHF-A6
Commercial UHF True Diversity Wireless Microphone System
How to IR Sync ..................................................3
Troubleshooting ..................................................4
Safety, Warnings and Precautions ........................4
Important Safety Instructions .............................5
Company Contact Information ...........................6
Advertisement
Table of Contents
Related Manuals for Acesonic uhf-a6
Summary of Contents for Acesonic uhf-a6
-
Page 1: Table Of Contents
Acesonic takes pride in providing its customers with only the most advanced and highest quality products on the market. With proper care and use you will get many years of satisfying use from your Acesonic product. Be sure to keep original packaging in case re-shipping is required for returns or repairs. -
Page 2: First Things First
Consult your dealer or an authorized repair station. Using the unit in this won’t use the UHF-A6 for an extended period of time, unplug the unit from the wall outlet. state may lead to fire or electrical shock. -
Page 3: Receiver Front And Rear Panel Functions
Receiver – Front 4. IR Sync sensor 5. SQ – Connection distance controls 1. Power button – power ON/OFF 6. Microphone Volume controls 2. Display panel 7. IR Sync buttons – Push Sync button to IR Sync 3. Channel selector – push button to manually your receiver and microphone select channels Receiver –... -
Page 4: Body-Pack Receiver Functions
Body-Pack receiver 1. Antenna 2. Operating indicator lights: • green – power is ON • yellow – power ON & Muted • flashing red – IR Syncing / low batteries (auto turn off ) 3. Power switch – hold on 2 sec for power on/off, push once to Mute/ Unmute 4. -
Page 5: Troubleshooting
Troubleshooting Problems Possible Causes Solutions No audio or lights. Microphone power switch is OFF. Switch microphone power to ON. Receiver power button is OFF. Push power button to ON. Antenna symbol on display panel is Microphone is on MUTE. Un-MUTE the microphone. showing but no audio. -
Page 6: Important Safety Instructions
If the provided plug does not fit into your outlet, consult an electrician for 2. IMPORTANT: When connecting the UHF-A6 replacement of the obsolete outlet. to audio equipment, use only high-quality, shielded cables such as what is supplied with this product. -
Page 7: Company Contact Information
16. Following any servicing or repair of this product, © 2012 Acesonic USA, Inc. • All rights reserved ask the service technician to perform the appropriate safety checks to ensure the product is in proper operating condition.
