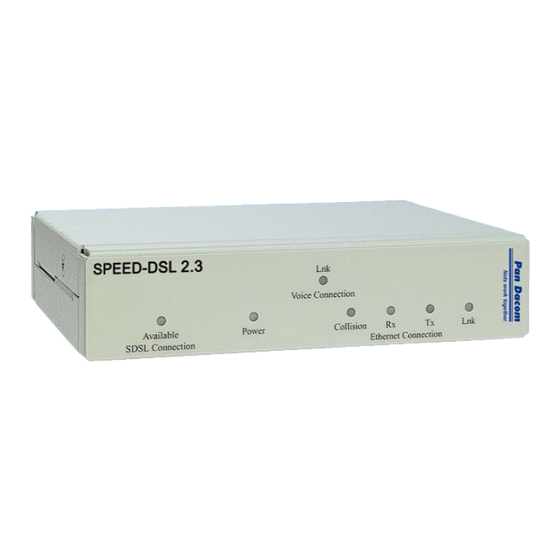

- Page 1 Pan Dacom Nets work together. SPEED-DSL 2.3 Ethernet connection over 2-wires up to 2.3 Mbit/s (9900-003-001-A, 9900-002-001-A) Manual...
- Page 2 Pan Dacom. This manual may not be copied, in whole or in part, or translated into other languages, without the written consent by Pan Dacom. by Pan Dacom Networking AG Version 1.1 SPEED-DSL 2.3 page 2 of 12 (9900-003-001-A, 9900-002-001-A)
-
Page 3: Installation
1 power supply 1.2. Power up the SPEED-DSL 2.3 Plug the power supply into the back of the SPEED-DSL 2.3 and connect it to the power source. Verify that the Power LED on the front of the SPEED-DSL 2.3 is illuminated. - Page 4 (e.g., 24 AWG) will link up at greater distances. Your SPEED-DSL 2.3 may not link up if the cable is in poor condition or if the cable distance is greater than a particular bandwidth will support; if link IS acheived under such conditions, traffic quality may be affected (e.g., packets may be dropped)
- Page 5 10 mbps to 20 mbps and preventing packet collisions. 1.4. Connect the SDSL Line. Plug your SDSL cable into the SDSL RJ45 port on the back of the SPEED-DSL 2.3. Verify the connection: the SDSL Connection LED on the front of the SPEED-DSL 2.3 will pulse green to indicate the connection is established and operational.
-
Page 6: Connect The Ethernet Line
DSL 2.3. Verify the connection: solid illumination of the Ethernet Connection Lnk LED on the front of the SPEED-DSL 2.3 indicates a link has been established, IF an SDSL connection has already been made. If an SDSL connection has NOT yet been made, the Ethernet link will remain disabled (as indicated by solid illumination of the Ethernet Rx, Tx and Lnk LEDs) until the SDSL link has been established. -
Page 7: Additional Information
Ethernet Collision LED will remain unlit by default. flashing red packet The Ethernet packet(s) will automatically be retransmitted. collision NOTE: An SPEED-DSL 2.3 in Full Duplex mode does not have collisions; the Ethernet Collision LED is only applicable in Half Duplex mode. solid red warning There is a potential traffic problem over the Ethernet segment. - Page 8 Either there is no Ethernet link or a link exists but there is no activity. solid amber heavy Rx The SPEED-DSL 2.3 is receiving large amounts of data from traffic the Ethernet network. A solid amber Ethernet Rx LED can also signify a lost...
- Page 9 (as indicated by solid llumination of the Ethernet Rx, Tx and Lnk LEDs). Upon reestablishment of at the SDSL link, the Ethernet connection will be reinstated and the Ethernet LEDs will reflect current Ethernet status. Version 1.1 SPEED-DSL 2.3 page 9 of 12 (9900-003-001-A, 9900-002-001-A)
-
Page 10: Regulatory Compliance
Industry Canada Regulatory Compliance Information for Class B Equipment This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada. Version 1.1 SPEED-DSL 2.3 page 10 of 12 (9900-003-001-A, 9900-002-001-A) - Page 11 GS Süd Kurze Straße 40 Inselkammerstraße 10 70794 Filderstadt 82008 Unterhaching Tel.: 0711-7705506-0 Tel.: 089-614478-0 Fax: 0711-77055070 Fax: 089-61447850 Technical Hotline 06103 – 932 100 Fax: 06103 - 932 413 dispatch@ffm.pandacom.de Version 1.1 SPEED-DSL 2.3 page 11 of 12 (9900-003-001-A, 9900-002-001-A)
- Page 12 Pan Dacom Nets work together. Version 1.1 SPEED-DSL 2.3 page 12 of 12 (9900-003-001-A, 9900-002-001-A)
