I N S T R U C T I O N M A N U A L
S
W
:
afety
arning
t
f
he
edg e S
of
t he
aS t
u
Se caution When handling the Speaker
home theater placement: left and right front
Speakers
M
o unt
ta b S
a re
v ery
.
.
Sh a rp
Figure 1: Left, Center & Right Speaker Home Theater Placement
home theater placement: center Speaker
home theater placement: Surround Speakers (5.1
channels)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sonance Original Series
Summary of Contents for Sonance Original Series

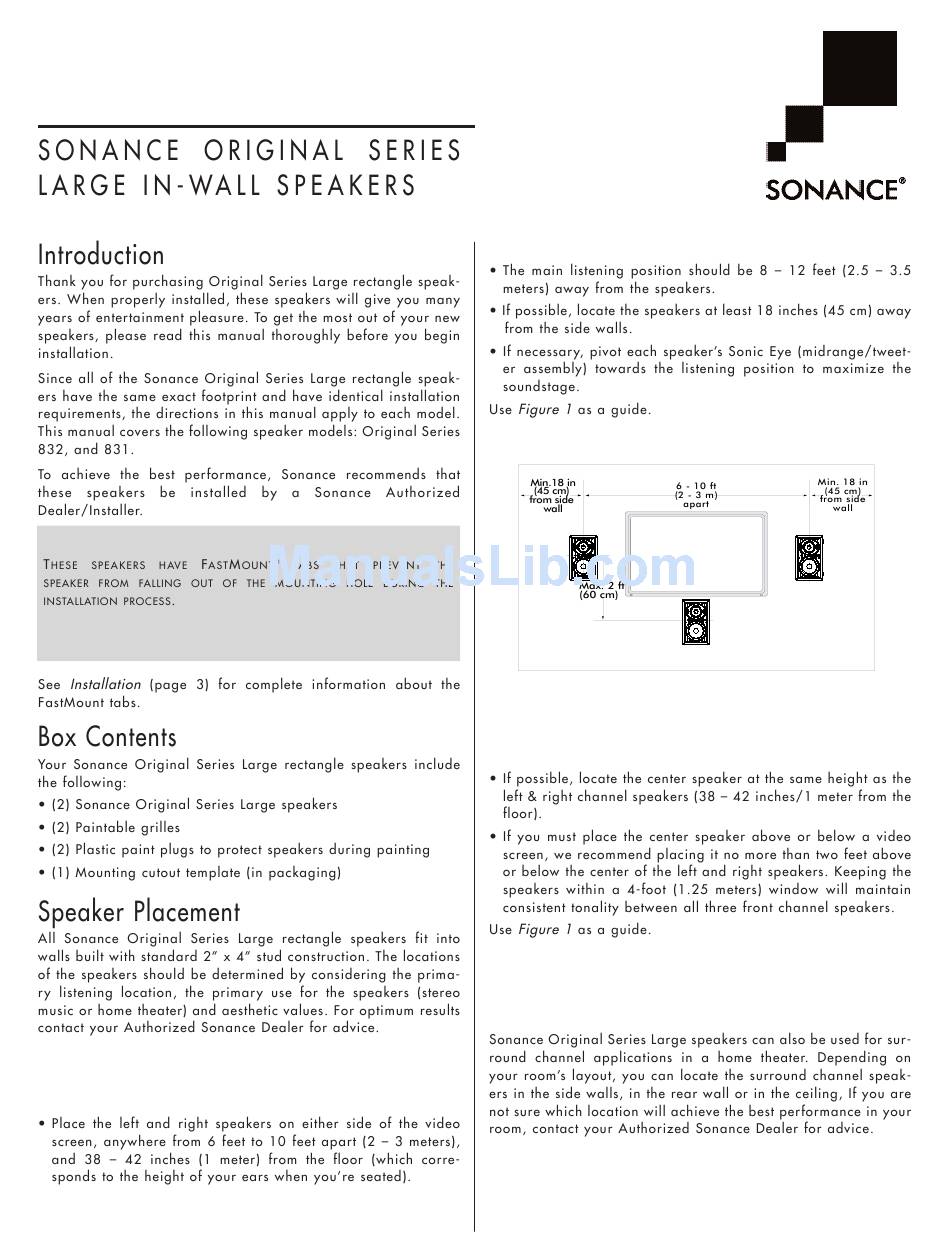

- Page 1 I N S T R U C T I O N M A N U A L afety arning edg e S t he aS t o unt ta b S a re v ery Sh a rp Se caution When handling the Speaker Figure 1: Left, Center &...
-
Page 2: Channel Placement
ORIGINAL SERIES LARGE RECTANGLE SPEAKERS Left & Right Surround Speakers 8 – 12 ft (2.5 – 3.5 m) apart 2 – 4 ft (.5 – 1.25 m) 2 – 6 ft (.5 – 2 m) 5 – 7 ft (2 – 3 m) Figure 4: Ceiling Surround Speaker Placement home theater placement: Surround Speakers (7.1... - Page 3 ORIGINAL SERIES LARGE RECTANGLE SPEAKERS before installation: retrofit before installation: ir knockout IR Knockout insulating the Wall cavity Figure 6: IR Knockout ’ he speaker s Grille may reduce the effectiveNess of the receiver f this occurs sliGhtly eNlarGe the...
- Page 4 ORIGINAL SERIES LARGE RECTANGLE SPEAKERS pivoting Sonic eye ® FastMount Clamps Roto-Lock Clamps Figure 7: Original Series Large Installation ouNt tabs are desiGNed for oNe time use oNly f the speaker is removed from the mouNtiNG hole the ouNt tabs Will discoNNect aNd remaiN...
- Page 5 ORIGINAL SERIES LARGE RECTANGLE SPEAKERS tweeter: 1" (25mm) silk dome, ferrofluid cooled, pivoting midrange: 4" (102mm) polypropylene cone, rubber surround, pivoting Woofer: 8" (203mm) polypropylene cone, rubber surround frequency response: 38hz – 20 khz ±3db impedance: 8 ohms nominal; 6 ohms minimum power handling: 5 Watts minimum;...
