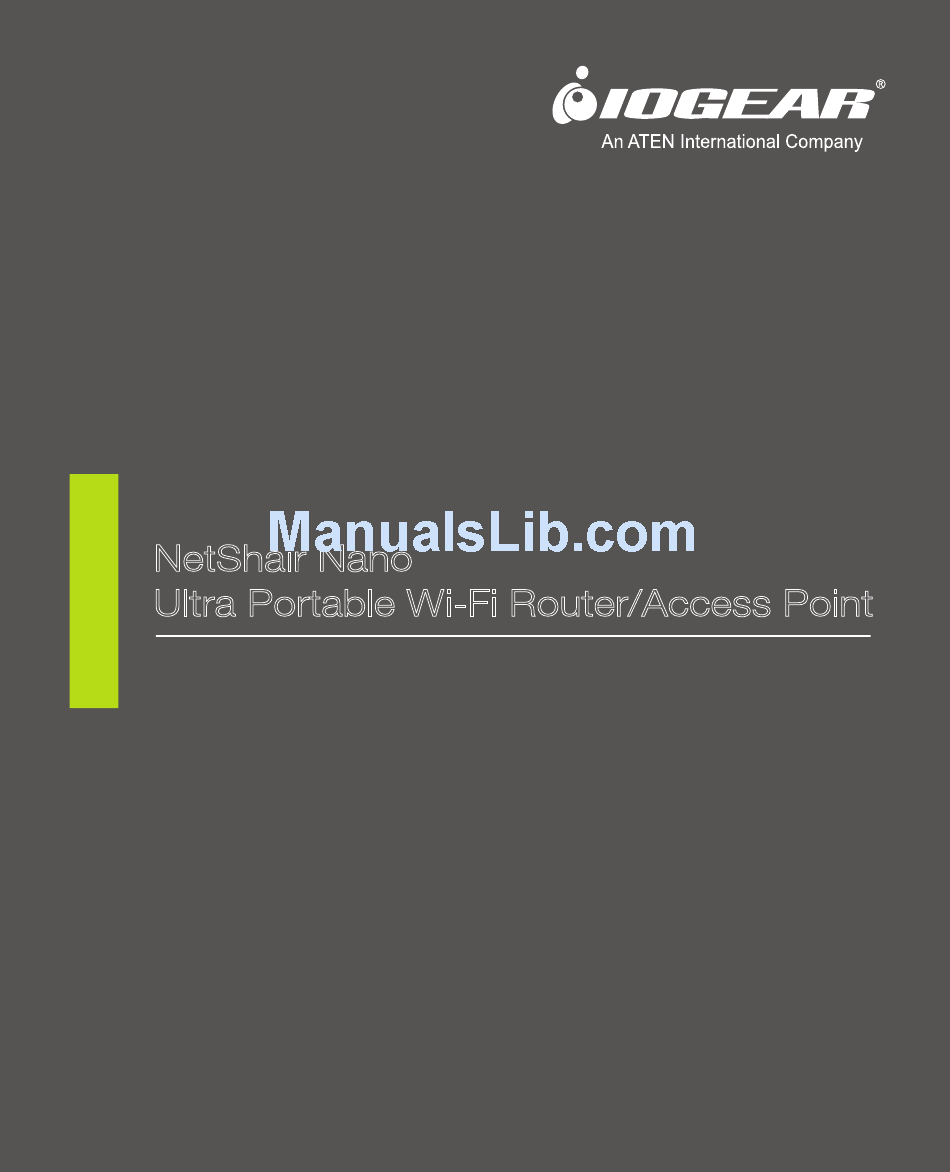

Quick Start Guide
NetShair Nano
Ultra Portable Wi-Fi Router/Access Point
GWPAP1
PART NO. Q1376
www.iogear.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Q1376 and is the answer not in the manual?

Questions and answers

Summary of Contents for IOGear Q1376

  • Page 1 Quick Start Guide NetShair Nano Ultra Portable Wi-Fi Router/Access Point GWPAP1 PART NO. Q1376 www.iogear.com...
  • Page 2: Package Contents

    Package Contents 1 x Quick Start Guide 1 x NetShair Nano Wi-Fi 1 x Warranty Card Router/Access Point System Requirements • USB port or USB charging adapter • Wired Ethernet connection with standard RJ45 connector • Wi-Fi equipped computer or wireless device •...
  • Page 3: Hardware Installation

    Hardware Installation Do not connect the Ethernet cable until app/client setup is complete 1. To power on the NetShair Nano, plug into a USB port on your computer or to a USB charging adapter for any mobile device. 2. Download the NetShair Nano App for Android™ or iPod /iPhone /iPad...
  • Page 4 NetShair Nano Setup (iPod / iPhone / iPad ® ® ® 1. Do not connect Ethernet cable until last step! (See Internet Connection) 2. Connect the NetShair Nano to a powered USB port on your computer or to a USB charging adapter for any mobile device.
  • Page 5: Internet Connection

    Internet Connection (iPod / iPhone / iPad ® ® ® Option 1: Router Mode This option is used to convert an Ethernet connection to Wi-Fi with DHCP support. Note: This is the most common Internet configuration. 1. Make sure the “NetShair_Nano_XXXX” Wi-Fi network is connected.
  • Page 6 6. On the Home screen, tap Advance Setting, then Set WAN Interface. 7. The default setting is DHCP client. If the network requires a username and password to access, select PPPoE. Enter the username and password then tap OK. 8. Tap Restart to sve settings. 9.
  • Page 7: Option 2: Access Point

    Option 2: Access Point This option is used to convert an Ethernet connection to Wi-Fi Access Point without DHCP support. 1. Make sure the “NetShair_Nano_XXXX” Wi-Fi network is connected. Open the NetShair Nano App. 2. On the Home screen, tap Advance Settings. 3.
  • Page 8: Wireless Security Settings

    Wireless Security Settings (iPod / iPhone / iPad ® ® ® Option 1: Wireless Password To change the pre-shared network key, enter a new key with a minimum of 8 characters. 1. Tap Basic Setting > Set Wireless Security > Fill in new Password >...
  • Page 9 NetShair Nano Setup (Android™) 1. Do not connect Ethernet cable until last step! (See Internet Connection) 2. Connect the NetShair Nano to a powered USB port on your PC or connect to a USB charging adapter for any mobile device. 3.
  • Page 10 Internet Connection (Android™) Option 1: Router Mode This option is used to convert an Ethernet connection to Wi-Fi with DHCP support. Note: This is the most common Internet configuration. 1. Make sure the “NetShair_Nano_XXXX” Wi-Fi network is connected. Open the NetShair Nano App. 2.
  • Page 11 6. Tap Restart to save settings. 7. After the NetShair Nano reboots, connect an Ethernet cable. The Network LED indictor will light solid once a successful connection has been made. Option 2: Access Point This option is used to convert an Ethernet connection to Wi-Fi Access Point without DHCP support.
  • Page 12 Wireless Security Settings (Android™) Option 1: Wireless Password To change the pre-shared network key, enter a new key with a minimum of 8 characters 1. Tap Basic Setting > Set Wireless Security > Fill in new Password > Tap OK Option 2: Network Name To change the name of your wireless network (SSID) enter the new name in the SSID box.
  • Page 13 NetShair Nano Setup (Laptop / Computer) 1. Do not connect Ethernet cable until last step! (See Internet Connection) 2. Power on the NetShair Nano by plugging it into a powered USB port on your Laptop or Desktop or by plugging it into a USB charging adapter for a USB mobile device.
  • Page 14 Internet Connection (Laptop / Computer) Option 1: Router Mode This option is used to convert an Ethernet connection to Wi-Fi with DHCP support. Note: This is the most common Internet configuration. 1. Make sure the “NetShair_Nano_XXXX” Wi-Fi network is connected. Open the Browser and enter 192.168.1.254 into the address bar to access the web client.
  • Page 15 Enter the username and password provided by the administrator and click Apply Changes. 4. The NetShair Nano will need to reboot to apply the changes made. Click Reboot Now. 5. Once rebooted, connect an Ethernet cable from the modem to the NetShair Nano.
  • Page 16: Option 2: Access Point Mode

    Option 2: Access Point Mode This option is used to convert an Ethernet connection to Wi-Fi Access Point without DHCP support. 1. Make sure the “NetShair_Nano_XXXX” Wi-Fi network is connected. Open the Browser and enter 192.168.1.254 into the address bar to access the web client.
  • Page 17 Wireless Security Settings (Laptop/Computer) Option 1: Wireless Password 1. Make sure the “NetShair_Nano_XXXX” Wi-Fi network is connected. Open the Browser and enter 192.168.1.254 into the address bar to access the web client. 2. Select Wireless, then click Security. 3. Click the drop down menu for Encryption and select from the following: WEP, WPA, WPA2, or WPA-Mixed (Recommended).
  • Page 18 Option 2: Network Name (SSID) 1. Make sure the “NetShair_Nano_XXXX” Wi-Fi network is connected. Open the Browser and enter 192.168.1.254 into the address bar to access the web client. 2. Select Wireless, then click Basic Settings 3. Enter the new network name in the SSID box and click Apply Changes.
  • Page 19: Fcc Statement

    Hotel Usage Explanation Note Hotel provides wired Internet access 1. Power on the NetShair Nano by plugging it into a powered USB port on your Laptop or Desktop or by plugging it into a USB charging adapter for a USB mobile device. 2.
  • Page 20: Limited Warranty

    WE’RE HERE TO HELP YOU! NEED ASSISTANCE SETTING UP THIS PRODUCT? Make sure you: 1. Visit www.iogear.com for more product information 2. Visit www.iogear.com/support for live help and product support Warranty Information This product carries a 1 Year Limited Warranty. For the terms and conditions of this warranty, please go to http://www.iogear.com/support/warranty...
