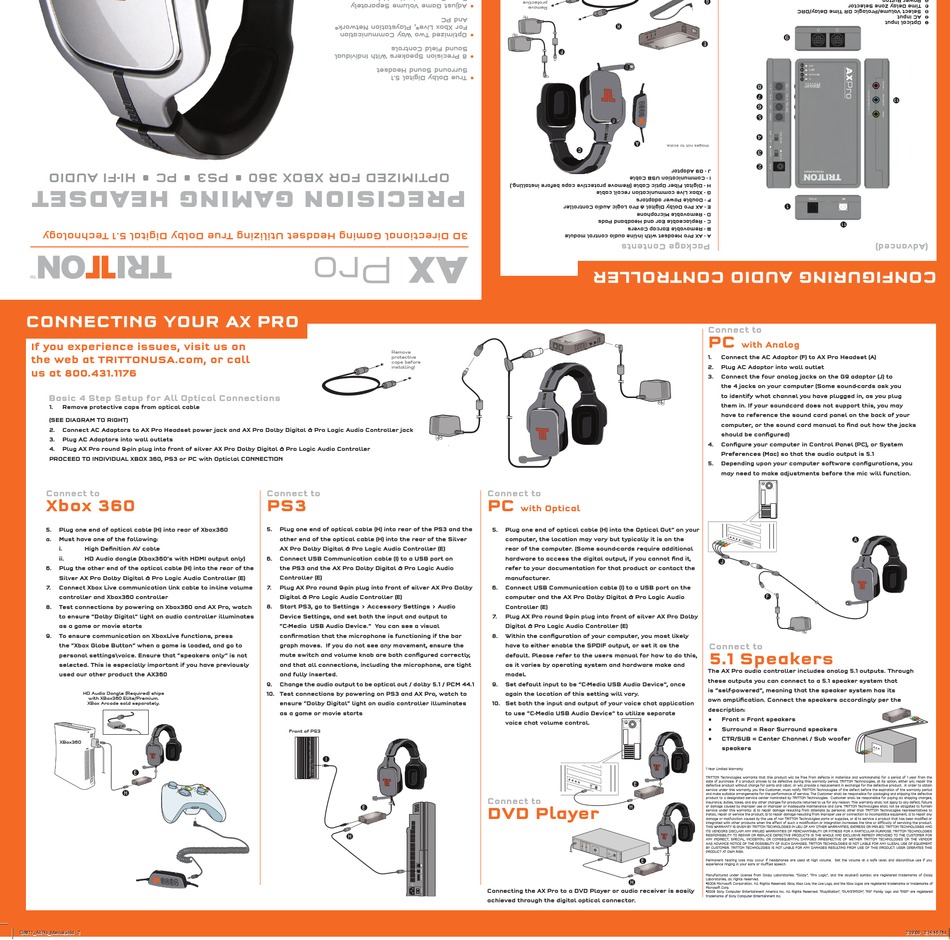

CONNECTING YOUR AX PRO
If you experience issues, visit us on
the web at TRITTONUSA.com, or call
us at 800.431.1176
Basic 4 Step Setup for All Optical Connections
1. Remove protective caps from optical cable
(SEE DIAGRAM TO RIGHT)
2. Connect AC Adaptors to AX Pro Headset power jack and AX Pro Dolby Digital & Pro Logic Audio Controller jack
3. Plug AC Adaptors into wall outlets
4. Plug AX Pro round 9-pin plug into front of silver AX Pro Dolby Digital & Pro Logic Audio Controller
PROCEED TO INDIVIDUAL XBOX 360, PS3 or PC with Opticlal CONNECTION
Connect to
Xbox 360
5. Plug one end of optical cable (H) into rear of Xbox360
a. Must have one of the following:
i. High Defi nition AV cable
ii. HD Audio dongle (Xbox360's with HDMI output only)
6. Plug the other end of the optical cable (H) into the rear of the
Silver AX Pro Dolby Digital & Pro Logic Audio Controller (E)
7. Connect Xbox Live communication link cable to in-line volume
controller and Xbox360 controller
8. Test connections by powering on Xbox360 and AX Pro, watch
to ensure "Dolby Digital" light on audio controller illuminates
as a game or movie starts
9. To ensure communication on XboxLive functions, press
the "Xbox Globe Button" when a game is loaded, and go to
personal settings\voice. Ensure that "speakers only" is not
selected. This is especially important if you have previously
used our other product the AX360
HD Audio Dongle (Required) ships
with XBox360 Elite/Premium.
XBox Arcade sold separately.
XBox360


Remove
protective
caps before
installing!
Connect to
PS3
5. Plug one end of optical cable (H) into rear of the PS3 and the
other end of the optical cable (H) into the rear of the Silver
AX Pro Dolby Digital & Pro Logic Audio Controller (E)
6. Connect USB Communication cable (I) to a USB port on
the PS3 and the AX Pro Dolby Digital & Pro Logic Audio
Controller (E)
7. Plug AX Pro round 9-pin plug into front of silver AX Pro Dolby
Digital & Pro Logic Audio Controller (E)
8. Start PS3, go to Settings > Accessory Settings > Audio
Device Settings, and set both the input and output to
"C-Media USB Audio Device." You can see a visual
confi rmation that the microphone is functioning if the bar
graph moves. If you do not see any movement, ensure the
mute switch and volume knob are both confi gured correctly,
and that all connections, including the microphone, are tight
and fully inserted.
9. Change the audio output to be optical out / dolby 5.1 / PCM 44.1
10. Test connections by powering on PS3 and AX Pro, watch to
ensure "Dolby Digital" light on audio controller illuminates
as a game or movie starts
Front of PS3



Connect to
PC
with Optical
5. Plug one end of optical cable (H) into the Optical Out" on your
computer, the location may vary but typically it is on the
rear of the computer. (Some sound-cards require additional
hardware to access the digital output, if you cannot fi nd it,
refer to your documentation for that product or contact the
manufacturer.
6. Connect USB Communication cable (I) to a USB port on the
computer and the AX Pro Dolby Digital & Pro Logic Audio
Controller (E)
7. Plug AX Pro round 9-pin plug into front of silver AX Pro Dolby
Digital & Pro Logic Audio Controller (E)
8. Within the confi guration of your computer, you most likely
have to either enable the SPDIF output, or set it as the
default. Please refer to the users manual for how to do this,
as it varies by operating system and hardware make and
model.
9. Set default input to be "C-Media USB Audio Device", once
again the location of this setting will vary.
10. Set both the input and output of your voice chat application
to use "C-Media USB Audio Device" to utilize separate
voice chat volume control.

Connect to
DVD Player



Connecting the AX Pro to a DVD Player or audio receiver is easily
achieved through the digital optical connector.
Connect to
PC
with Analog
1. Connect the AC Adaptor (F) to AX Pro Headset (A)
2. Plug AC Adaptor into wall outlet
3. Connect the four analog jacks on the G9 adaptor (J) to
the 4 jacks on your computer (Some sound-cards ask you
to identify what channel you have plugged in, as you plug
them in. If your soundcard does not support this, you may
have to reference the sound card panel on the back of your
computer, or the sound card manual to fi nd out how the jacks
should be confi gured)
4. Confi gure your computer in Control Panel (PC), or System
Preferences (Mac) so that the audio output is 5.1
5. Depending upon your computer software confi gurations, you
may need to make adjustments before the mic will function.



Connect to
5.1 Speakers
The AX Pro audio controller includes analog 5.1 outputs. Through
these outputs you can connect to a 5.1 speaker system that
is "self-powered", meaning that the speaker system has its
own amplifi cation. Connect the speakers accordingly per the
description:
• Front = Front speakers
• Surround = Rear Surround speakers
• CTR/SUB = Center Channel / Sub woofer
speakers
