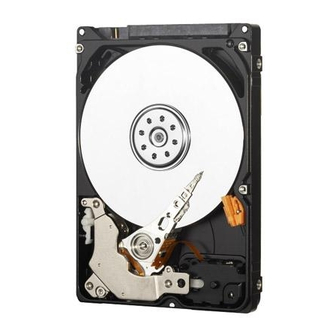

Western Digital WD BLUE WD10SPCX Specification

WD BLUE
™
Mobile Hard Drives
WD Blue hard drives deliver solid performance and reliability
while providing you with all the space you need to hold an
enormous amount of photos, videos and files. These drives
are designed for use as primary drives in notebooks and
external enclosures.
INTERFACE WIDTH/HEIGHT
SATA 6 Gb/s 2.75 in./0.28 in. to 0.374 in.
SATA 3 Gb/s 69.85 mm/5 mm to 9.5 mm
MODEL NUMBERS
WD10SPCX WD7500BPVT
WD10JPVX WD5000MPCK
WD10JPVT WD5000LPVX
WD7500LPCX WD5000LPVT
WD7500BPVX WD5000BPVT

Product Features

New ultra-slim design
Accomplishing unprecedented
feats in engineering at only 5 mm
thin, these drives enable a world
of possibilities and applications.
(WD5000MPCK model only).
Low power consumption
State-of-the-art seeking algorithms
and advanced power management
features ensure low power
consumption and long battery life.
Quiet
In a notebook drive, silence is golden.
WD's exclusive noise reducing
technologies yield one of the quietest
2.5-inch hard drives on the market.
Applications
WD Blue hard drives are tested and recommended for use in notebooks, netbooks and external enclosures.*
* WD hard drives are designed and tested for use in specific applications and environments. This ensures that your hard drive is compatible with and functions properly in your application. Our
hard drives are warranted against defects in materials and workmanship in the system for which they were designed. Use in systems other than for what the hard drive was designed could
result in compatibility problems that affect proper function, unrelated to material and/or workmanship defects. For best results, be sure to select the appropriate product for your application
by consulting our product spec sheets on our website at www.wd.com or by calling our customer support line where we would be happy to help you through the selection process.
The WD Advantage
WD puts our products through extensive Functional Integrity Testing (F.I.T.) prior to any product launch. This testing ensures our products consistently meet the
highest quality and reliability standards of the WD brand. WD also has a detailed Knowledge Base with more than 1,000 helpful articles as well as helpful software
and utilities. Our customer support lines have longer operational hours to ensure you get the help you need when you need it. Our toll-free customer support lines
are here to help or you can access our WD Support site for additional details.
INTERFACE CONNECTOR
SFF-8784 Edge Connector (5 mm height)
SATA Connector (7 to 9.5 mm height)
WD3200LPVX
WD3200LPVT
WD3200BPVT
WD2500LPVX
WD2500LPVT
The original
WD Blue drives are designed and
manufactured with the proven
technology found in WD's original
award-winning hard drives.
WD quality
Built to the highest standards of
quality and reliability, these drives
offer the features and capacity ideal
for your everyday computing needs.
Available SATA 6 Gb/s interface
The SATA 6 Gb/s interface provides
greater flexibility for use with the
latest operating systems as well
as backwards compatibility to
legacy systems with SATA 3 Gb/s
requirements. (xPVX, xPCX, and
MPCK models only).
ROTATIONAL SPEED
5400 RPM
WD2500BPVT
Upgrading your drive is easy
Acronis True Image WD Edition
® ™
Software, available as a free
download on the WD Support site,
enables you to copy all your data
to a new drive so you don't have to
reinstall your operating system to get
all the benefits of a new drive.
Compatible
Our latest generation of 7 mm
2.5-inch mobile drives is designed
for thin and light mobile applications,
and is also compatible with most
standard 9.5 mm bays. (xPCX, LPVT,
and LPVX models only).
CAPACITIES
250 GB to 1 TB
Note: Not all products may
be available in all regions of
the world.
StableTrac
™
Motor shaft affixed to the baseplate
and top cover stabilizes platters for
accurate tracking during read and
write operations, yielding higher drive
data throughput in harsh shock and
vibration environments. Supporting
the top cover with the shaft also
increases robustness to pinch forces.
(WD5000MPCK model only).
Dual actuator technology
A head positioning system with two
actuators that improves
positional accuracy over the data
track(s). (WD5000MPCK model only).
NoTouch ramp load technology
™
The recording head never touches
the disk media ensuring significantly
less wear to the recording head
and media as well as better drive
protection in transit.
