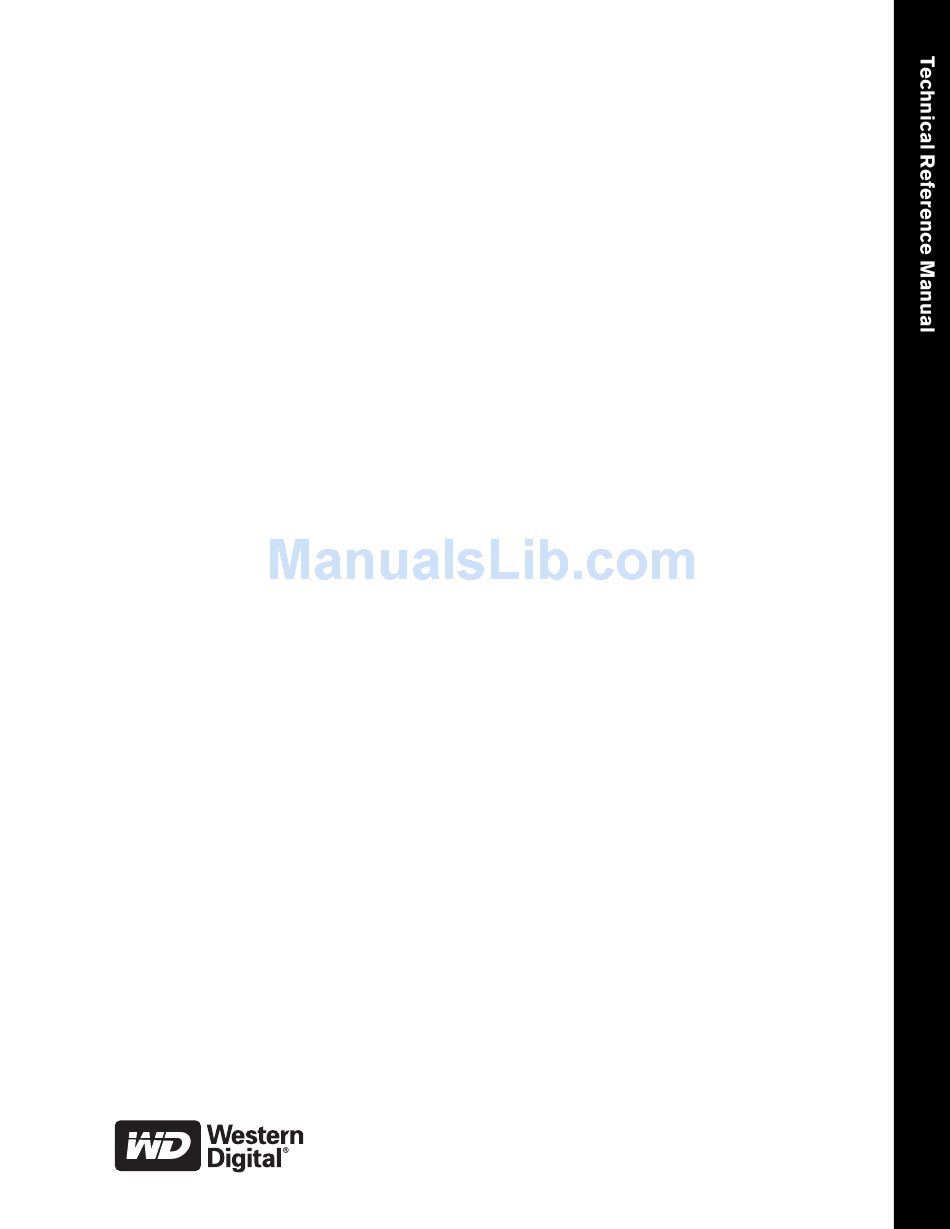

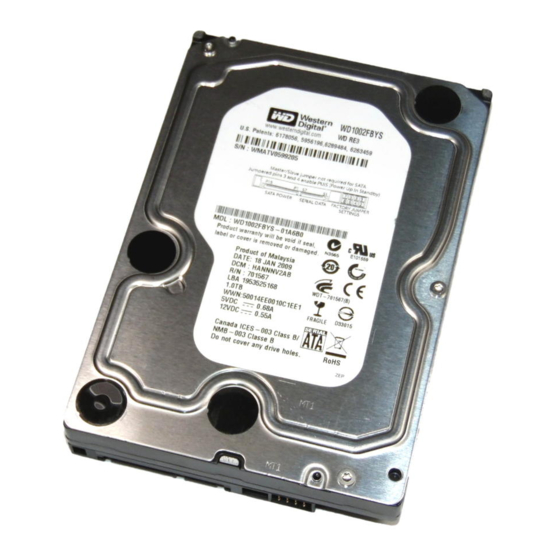

- Page 1 WD RE3 XL333M Enterprise SATA Hard Drives WD1002FBYS WD7502ABYS WD CONFIDENTIAL...
- Page 2 WD. WD reserves the right to change specifications at any time without notice. Western Digital, WD, the WD logo, and WD Caviar are registered trademarks in the U.S. and other countries; and IntelliSeek, NoTouch, RAFF, StableTrac, Data Lifeguard, CacheFlow, and FIT Lab are trademarks of Western Digital Technologies, Inc.
- Page 3 WD RE3 XL333M WD1002FBYS WD7502ABYS Technical Reference Manual 2679-701179-A01 RELEASED 11/13/08 (WD CONFIDENTIAL)
- Page 4 RELEASED 11/13/08 (WD CONFIDENTIAL) 2679-701179-A01...
-
Page 5: Table Of Contents
WD RE3 XL333M Table of Contents ABLE OF ONTENTS 1. D ....................1 ESCRIPTION AND EATURES 1.1 General Description ..................................1 1.2 Product Features .................................... 2 2. S ........................4 PECIFICATIONS 2.1 Performance Specifications ................................. 4 2.2 Physical Specifications ................................5 2.2.1 Physical Dimensions .............................. - Page 6 Table of Contents WD RE3 XL333M 3.17 Staggered Spinup and Activity Indication (SATA Power Pin 11) ..................23 3.17.1 Staggered Spinup ................................24 3.17.2 Activity Indication ................................24 3.18 CacheFlow™ ....................................24 3.18.1 Write Cache...................................24 3.18.2 Read Cache ...................................25 3.19 48-bit Logical Block Addressing (LBA) ..........................25 3.20 Power Management ..................................25 3.21 Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T.)..................25 3.22 Security Mode ....................................25...
- Page 7 WD RE3 XL333M List of Figures IST OF IGURES Figure 2-1 Mounting Dimensions ............................7 Figure 2-2 Drive Base Casting Thermocouple Location ....................11 Figure 2-3 Forced Airflow Direction ........................... 12 Figure 2-4 Standard Factory Connectors ......................... 13 Figure 3-1 Dual Linear Sensor Rotational Acceleration Feed Forward (RAFF) ............17 Figure 5-1 Jumper Settings ..............................
- Page 8 List of Tables WD RE3 XL333M IST OF ABLES Table 2-1 Shock and Vibration ............................10 Table 2-2 Device Pin Connector Pin Definitions ......................13 Table 2-3 Full Model Number Description........................14 Table 4-1 ATA-7/ATA-8 Command Opcodes......................... 27 Table 4-2 Optional Subcommands ........................... 28 Table 4-3 Obsolete Command Opcodes .........................
-
Page 9: Description And Features
WD RE3 XL333M Description and Features ESCRIPTION AND EATURES General Description WD RE3 7200 RPM Enterprise SATA hard drives are packed with performance and reliability features making them the perfect solution for servers, video surveillance, and other demanding write-intensive applications. With a designed, manufactured and demonstrated MTBF of 1.2 million hours at 100% duty cycle in nominal enterprise conditions, up to 32 MB cache, and best-in-class vibration tolerance, these drives are the ultimate in Enterprise SATA storage. -
Page 10: Product Features
Description and Features WD RE3 XL333M Product Features Serial ATA (SATA) — Serial ATA (SATA) is the next generation bus interface for hard drives. It is designed to replace Parallel ATA, and has many advantages including increased transfer rate, improved signal integrity, enhanced data protection, and hot plug support. - Page 11 WD RE3 XL333M Description and Features management, an environmental protection system, and embedded error detection and repair features that automatically detect, isolate, and repair problem areas that may develop over the extended use of the hard drive. With these enhanced data reliability features, the drive can perform more accurate monitoring, error repair, and deliver exceptional data security.
-
Page 12: Specifications
Specifications WD RE3 XL333M PECIFICATIONS Performance Specifications Average Latency 4.2 ms (nominal) Rotational Speed 7200 RPM (nominal) Data Transfer Rate (maximum) 3 Gb/s maximum - Buffer to Host 113 MB/s sustained (maximum) - Host to/from Drive Interleave Buffer Size 32 MB Error Rate - Unrecoverable <1 in 10 bits read... -
Page 13: Physical Specifications
WD RE3 XL333M Specifications Physical Specifications WD7502ABYS WD1002FBYS Physical Specifications 750,156 MB 1,000,204 MB Capacity SATA 3 Gb/s SATA 3 Gb/s Interface Number of Disks Data Surfaces Number of Heads Bytes per Sector User Sectors per Drive 1,465,149,168 1,953,525,168 Servo Type... -
Page 14: Physical Dimensions
Specifications WD RE3 XL333M 2.2.1 Physical Dimensions English Metric Dimension Tolerance Dimension Tolerance Height 1.028 inches 26.1 mm Length 5.787 inches 147.0 mm Width 4.00 inches ±0.01 inch 101.6 mm ±0.25 mm Weight 1.52 pounds ±10% 0.69 kg ±10% RELEASED 11/13/08 (WD CONFIDENTIAL) 2679-701179-A01... -
Page 15: Mechanical Specifications
WD RE3 XL333M Specifications Mechanical Specifications Figure 2-1 shows the mounting dimensions and locations of the screw holes for the drive. Figure 2-1. Mounting Dimensions 2679-701179-A01 RELEASED 11/13/08 (WD CONFIDENTIAL) -
Page 16: Electrical Specifications
Specifications WD RE3 XL333M Electrical Specifications 2.4.1 Mean Current Requirements and Power Dissipation Operating Mode RMS Current Power, Average 12 VDC 5 VDC Spinup (max) 2.075A 1.1A 30.4W Spinup 1.1A 450 mA 15.5W Read/Write 470 mA 480 mA 8.0W Random Seek 525 mA 470 mA 8.7W... -
Page 17: Input Voltage Requirements
WD RE3 XL333M Specifications 2.4.2 Input Voltage Requirements The input voltage requirements are +5.0V ± 5% and +12.0V ± 10%. 2.4.3 Ripple +12 VDC +5 VDC Maximum 200 mV (double amplitude) 100 mV (double amplitude) Frequency 0-30 MHz 0-30 MHz 2.4.4 Power Connectors and Cables SATA Connectors... -
Page 18: Environmental Specifications
Specifications WD RE3 XL333M Environmental Specifications 2.5.1 Shock and Vibration Table 2-1. Shock and Vibration Shock Operating 30G, 2 ms (read/write) 65G, 2 ms (read) Non-operating (2 ms) 250G Note: Half-sine wave, measured without shock isolation and without non-recoverable errors. Vibration Operating Linear: 20-300 Hz, 0.75G (0 to peak) -
Page 19: Temperature And Humidity
WD RE3 XL333M Specifications 2.5.2 Temperature and Humidity Temperature & Humidity Operating ambient temperature 0°C to 60°C Max base casting temperature 65°C S.M.A.R.T. temperature value reported within ±3°C Humidity 5-95% RH non-condensing 37.7°C (maximum wet bulb) Thermal Gradient 20°C/hour (maximum) Humidity Gradient 20%/hour (maximum) Non-operating Temperature... -
Page 20: Cooling
Specifications WD RE3 XL333M 2.5.4 Cooling If forced air cooling is required, the drive must be positioned to receive airflow from one or more fans as indicated in Figure 2-3. Figure 2-3. Forced Airflow Direction Above drive Below drive Note: Air can flow in either direction along the path shown. 2.5.5 Atmospheric Pressure Altitude... -
Page 21: Device Plug Connector Pin Definitions
WD RE3 XL333M Specifications Device Plug Connector Pin Definitions These drives interface with the host I/O bus via the SATA interface connection illustrated in Figure 2-4 below. The drive receives power from the SATA power connection or legacy ATA 4-pin power connector J3 in Figure 2-4. Table 2-2 identifies the pin definitions of the SATA connectors and the corresponding signal names and signal functions. -
Page 22: Agency Approvals
Table 2-3. Full Model Number Description Model Number Format Product Brand Description WD7502ABYS-xxA6BX WD RE3 7200 XL333M 32 MB SATA 3 Gb/s StableTrac RE WD1002FBYS-xxA6BX WD RE3 7200 XL333M 32 MB SATA 3 Gb/s StableTrac RE RELEASED 11/13/08 (WD CONFIDENTIAL) 2679-701179-A01... -
Page 23: Product
WD RE3 XL333M Product Features RODUCT EATURES SATA 3 Gb/s Time Limited Error Recovery (TLER) Rotary Acceleration Feed Forward (RAFF)™ Perpendicular Magnetic Recording (PMR) IntelliSeek™ NoTouch™ Ramp Load Technology StableTrac™ Native Command Queuing (NCQ) Pre-Emptive Wear Leveling (PWL) Femto Slider S.M.A.R.T. -
Page 24: Sata 3 Gb/S
Product Features WD RE3 XL333M SATA 3 Gb/s SATA 3 Gb/s is the next generation interface for SATA hard drives. It adds to the functionality of the SATA I interface with the following features: Native Command Queuing (NCQ) — server feature for performance in random I/O transaction environments. -
Page 25: Rotary Acceleration Feed Forward (Raff)
WD RE3 XL333M Product Features Rotary Acceleration Feed Forward (RAFF)™ Rotary Acceleration Feed Forward (RAFF) helps to overcome the effects of rotational vibration (RV) on a hard drive by generating an additional control effort to counter the RV disturbances, thereby keeping the drive head(s) within the safe operating region during reading and writing operations. -
Page 26: Intelliseek
Product Features WD RE3 XL333M In perpendicular recording, the adjacent bits attract instead of repel (as with bar magnets placed side by side,) creating more thermally stable bits. In addition, the media contains a magnetically soft underlayer (SUL) beneath the recording layer. This SUL allows a larger effective write field, thus higher coercivity media, enabling further increases in density. -
Page 27: Femto Slider
WD RE3 XL333M Product Features disk lubricant maintains an even distribution and does not become depleted. This feature ensures reliability for applications that perform a high incidence of read/write operations at the same physical location on the disk. 3.10 Femto Slider These drives incorporate the femto slider form factor in which the read/write head is mounted on the small, lightweight femto slider which allows the head to move more quickly from track to track on the disk. -
Page 28: World Wide Name (Wwn)
Product Features WD RE3 XL333M SCT TR reports the maximum and minimum sustained operating limits, warning level limits, and drive damage limits. In addition to reporting the limits, SCT TR returns the current drive temperature (a temperature history which the host can use to predict heating or cooling trends) and the maximum temperature acheived during the lifetime of the drive as well as the highest temperature achieved since the power was applied to the drive. -
Page 29: Thermal Management
WD RE3 XL333M Product Features 3.13.2 Thermal Management The drive is designed with Thermal Management features for high reliability. State-of-the-art mechanical design—Mechanical design is optimized to reduce the drive’s temperature. State-of-the-art thermal dissipation and windage design is employed. Closed loop servo management—Thermal management monitors the drive temperature and can control servo operations to maintain a stable operating temperature under high temperature conditions. -
Page 30: Ata Error Logging
Product Features WD RE3 XL333M 3.13.7 ATA Error Logging ATA Error Logging provides an industry standard means to record error events and supporting information that is then accessible by the host. The event record includes the exact command that caused the failure, the response of the drive, the time of the event and information about the four commands immediately prior to the errant command. -
Page 31: Hot Plug Support
WD RE3 XL333M Product Features errors. The procedure ends when error recovery is achieved or when all possible retries have been attempted. Extended Read Retry Procedure – This retry procedure tries combinations of positive/negative track offsets and data DAC manipulations to recover the data. This retry procedure applies only to read data recovery. -
Page 32: Staggered Spinup
Product Features WD RE3 XL333M device to provide the host with an activity indication. According to the SATA spec, "Staggered Spin-up Disable and Activity Signal shall not be enabled at the same time." 3.17.1 Staggered Spinup When multiple disks are installed in an enclosure, it is desirable to provide a simple mechanism by which a subsystem controller can sequence hard drive initialization to minimize the current load presented during power up. -
Page 33: Read Cache
WD RE3 XL333M Product Features 3.18.2 Read Cache CacheFlow implements a multiple segment read cache. Cache segments are assigned to read commands as they are received from the host. Each read segment consists of pre and post read sectors in addition to the host-requested sectors. -
Page 34: Master And User Passwords
Product Features WD RE3 XL333M 3.22.1 Master and User Passwords The manufacturer/dealer can set a master password using the Security Set Password command, without enabling the device lock function. The user password should be given or changed by a system user. Master Password Identifier is supported and set to a default value of 00FE. -
Page 35: Ata Command Set
WD RE3 XL333M ATA Command Set ATA C OMMAND Host Interface Commands 4.1.1 ATA-7/ATA-8 Commands Table 4-1 lists the hexadecimal codes specific to each ATA-7/ATA-8 command supported by these hard drives. Refer to the D1699 ATA8-ACS specification for full details on each command. -
Page 36: Optional Subcommands
ATA Command Set WD RE3 XL333M COMMAND HEX OPCODE STANDBY STANDBY IMMEDIATE WRITE BUFFER WRITE DMA WRITE DMA EXT WRITE FPDMA QUEUED WRITE LOG EXT WRITE LOG DMA EXT WRITE MULTIPLE WRITE MULTIPLE EXT WRITE SECTOR(S) WRITE SECTOR(S) EXT WRITE UNCORRECTABLE EXT 4.1.2 Optional Subcommands Table 4-2 lists the hexadecimal codes specific to each SATA 2.5 command supported by... -
Page 37: Sct Commands
WD RE3 XL333M ATA Command Set 4.1.4 SCT Commands SCT commands provide capabilities not covered in ATA/ATAPI-7 for commands that do not fit the ATA command delivery model. Some SCT commands report completion when the command begins execution. Execution progress for these commands may be checked by requesting SCT status. - Page 38 ATA Command Set WD RE3 XL333M BYTE VALUE DESCRIPTION The self-test routine was interrupted by the host with a hard or soft reset A fatal error or unknown test error occurred while the device was executing its self-test routine. The device was unable to complete the self-test routine.
-
Page 39: Supported Attributes
WD RE3 XL333M ATA Command Set 4.2.2 Supported Attributes The drive supports the following attributes. Attribute Attribute ID Number Pre-Failure/Advisory Bit (Status Flags bit 0) Read Error Rate Pre-Failure Spin-up Time Pre-Failure Start/Stop Count Advisory Re-allocated Sector Count Pre-Failure Seek Error Rate Pre-Failure Power-on Hours Count Advisory... -
Page 40: Read Log Sector
ATA Command Set WD RE3 XL333M 4.2.3 Read Log Sector There are several logs that can be read with the S.M.A.R.T. Read Log Sector sub-command. The LBA Low Register indicates the log sector to be returned. Table 4-6. Defined Error Logging Sectors Log address Content Log Cmds... -
Page 41: Identify Device (Ech)
23-26 Firmware Revision (ATA String) nnnn “WDC WD7502ABYS-nnnnnn” 27-46 Model Numbers (ATA String) “WDC WD1002FBYS-nnnnnn” Read/Write Multiple support Bit 15-8: 80h Bit 7-0: 00h = Reserved 8010h 01h-FFh = Maximum number of logical sectors that shall be transferred perDRQ data block on READ/WRITE MULTIPLE... - Page 42 ATA Command Set WD RE3 XL333M WORD FIELD DESCRIPTION VALUE Additional Words Valid Bit 15-8: Free-fall Control Sensitivity 00h = Vendor’s recommended setting 01h-FFh = Sensitivity level. A larger number is a more sensitive setting. 0007h Bit 7-3: Reserved Bit 2: 1 = the fields reported in word 88 are valid 0 = the fields reported in word 88 are not valid Bit 1: 1 = the fields reported in words (64-70) are valid 0 = the fields reported in words (64-70) are not valid...
- Page 43 WD RE3 XL333M ATA Command Set WORD FIELD DESCRIPTION VALUE Serial ATA Features Enabled Bit 15-7: Reserved for Serial ATA Bit 6: If set, software settings preservation enabled Bit 5: Reserved for Serial ATA 00XXh Bit 4: If set, in-order data delivery enabled. Bit 3: If set, device initiated power management enabled Bit 2: If set, DMA Setup auto-active optimization enabled Bit 1: If set, Non-zero buffer offsets in DMA Setup FIS enabled...
- Page 44 ATA Command Set WD RE3 XL333M WORD FIELD DESCRIPTION VALUE Commands and feature sets supported Bit 15: Obsolete Bit 14: If set, NOP command supported Bit 13: If set, READ BUFFER command supported Bit 12: If set, WRITE BUFFER command supported Bit 11: Obsolete Bit 10: If set, Host Protected Area has been established Bit 9: If set, DEVICE RESET command supported...
- Page 45 FEh = Performance Mode 95-99 Not supported WD7502ABYS (1,465,149,168) 100-103 Maximum user LBA for 48-bit Address Feature Set (QWord) WD1002FBYS (1,953,525,168) Not supported Reserved 0000h Physical sector size / Logical Sector Size Bit 15: Shall be cleared to zero Bit 14: Shall be set to one...
- Page 46 ATA Command Set WD RE3 XL333M WORD FIELD DESCRIPTION VALUE Integrity Word XXA5h Bit 15-8: Checksum Bit 7-0: Signature RELEASED 11/13/08 (WD CONFIDENTIAL) 2679-701179-A01...
-
Page 47: Set Features (Efh)
WD RE3 XL333M ATA Command Set Set Features (EFh) The Set Features command enables or disables the features listed in the following table. FUNCTION FEATURES SECTOR COUNT REGISTER REGISTER Don’t care Enable read cache Don’t care Disable read cache Don’t care Enable write cache Don’t care Disable write cache... -
Page 48: Installation And Setup Procedures
Installation and Setup Procedures WD RE3 XL333M NSTALLATION AND ETUP ROCEDURES Hard drives are precision instruments that must be handled with care to prevent damage. It is important to understand that drives are typically damaged because of Electrostatic Discharge (ESD), rough handling, or shock and vibration. -
Page 49: Removal From Static Shielding Bag
WD RE3 XL333M Installation and Setup Procedures 5.1.4 Removal From Static Shielding Bag Before removing the drive from its static shielding bag: Make sure that your work station is properly grounded. Wear a properly grounded wrist strap with good skin contact. Avoid contact with any component on the printed circuit board. -
Page 50: Grounding
Installation and Setup Procedures WD RE3 XL333M 5.2.4 Grounding The PCBA and HDA grounds are always connected together in the drive and cannot be disconnected. The drive mounting screws, unless intentionally isolated, will provide additional ground connections between the HDA and the system chassis. If the drive isn't grounded via mounting screws as described under “Mounting”... -
Page 51: Attach The Power Supply Cable
WD RE3 XL333M Installation and Setup Procedures 5.3.2 Attach the Power Supply Cable If your system does not support hot plugging (see “Hot Plug Support” on page 23), it must be turned off and unplugged before installing your hard drive. This avoids the possibility of reversing the polarity of the power connections and eliminating current surges that can damage either the drive or computer. -
Page 52: Maintenance
Maintenance WD RE3 XL333M AINTENANCE The hard drive requires no preventative maintenance and contains no user-serviceable parts. The service and repair of drives can only be performed at a WD Service Center. Please contact your WD representative for warranty information and service/return procedures. Observe the following precautions to prolong the life of the drive: Do not attempt to open the sealed compartment of the drive as this will void the warranty. -
Page 53: Technical Support
WD RE3 XL333M Technical Support ECHNICAL UPPORT NORTH AMERICA US/Canada (Central Time) 800.ASK.4WDC Monday - Thursday 9:00 am - 7:00 pm Friday 9:00 am - 5:00 pm Saturday 8:00 am - 5:00 pm EUROPE Central European Time (CET) +31.20.4467651 Monday - Thursday 9:30 am - 12:00 noon 1:00 pm - 5:30 pm Friday... -
Page 54: Glossary
Glossary WD RE3 XL333M LOSSARY Active LED Status — The WD drive supports external LED requirements. It provides an activity LED output which is ON during command execution and OFF otherwise. Annualized Failure Rate (AFR) — A method of measuring failure rates or trends for a group of units at a site. - Page 55 WD RE3 XL333M Glossary IntelliSeek — WD technology that proactively calculates an optimum seek speed to eliminate hasty movement of the actuator that produces noise and requires power. Logical Block Address — An alternative addressing methodology of identifying a given location on a SATA drive that permits disk sizes greater than 528 MB.
- Page 56 Glossary WD RE3 XL333M the data when host retries are enabled. World Wide Name (WWN) — The World Wide Name (WWN) defined in ATA/ATAPI-7 is a modification of the IEEE extended unique identifier 64 bit standard (EUI-64) and is comprised of three major components: naming authority, organizationally unique identifier (OUI) and serial number.
- Page 57 WD RE3 XL333M Index —H— NDEX Head Parking, 5 Host Interface Commands, 27 —A— Identify Drive, 33 Acoustics, 12, 14 S.M.A.R.T., 29 Active LED Status, 23 Set Features, 39 Activity indication, 24 Hot Plug Support, 23 Agency Approvals, 14 Airflow, 12 —I—...
- Page 58 Index WD RE3 XL333M Rotational Speed, 4 WWN, 20 RPM, 4 —S— S.M.A.R.T., 25 S.M.A.R.T. Command Transport (SCT), 19 SATA 3 Gb/s interface, 16 SCT, 19 SCT commands, 29 SCT feature set read/write long, 19 temperature reporting, 19 TLER, 16 write same, 19 Security Mode, 25 Passwords, 26...
- Page 59 For service and literature: support.wdc.com www.westerndigital.com Western Digital 800.ASK.4WDC North America 20511 Lake Forest Drive 949.672.7199 Spanish Lake Forest, CA 92630 +800-6008 6008 Asia Pacific U.S.A. +31.20.4467651 Europe/Middle East/Africa 2679-701179-A01 Nov 2008 WD CONFIDENTIAL...
