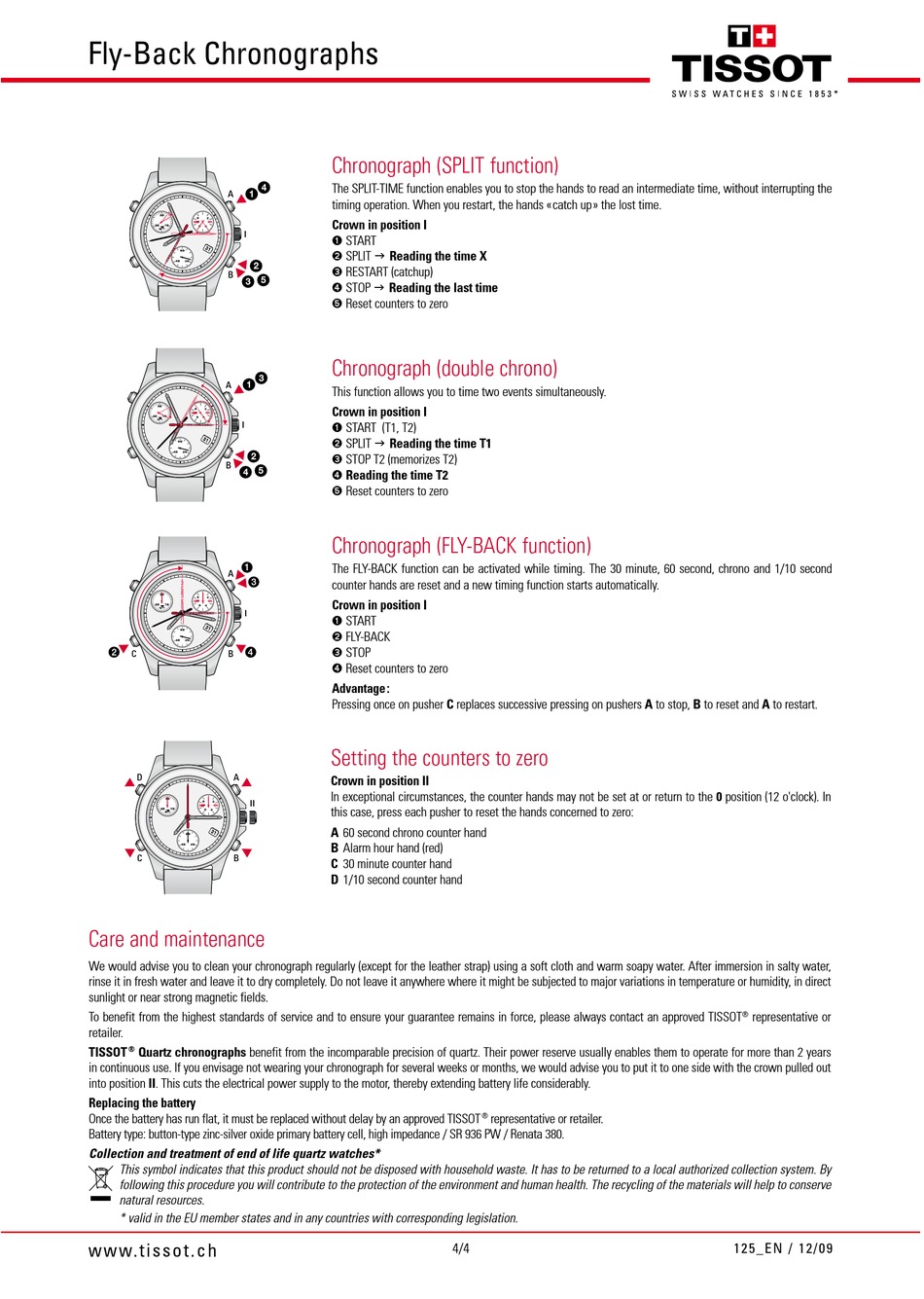

Fly-Back Chronographs
4
A 1
2
B
5
3
3
A 1
2
B
5
4
1
A
3
4
2
C B
D A
C B

Care and maintenance

We would advise you to clean your chronograph regularly (except for the leather strap) using a soft cloth and warm soapy water. After immersion in salty water,
rinse it in fresh water and leave it to dry completely. Do not leave it anywhere where it might be subjected to major variations in temperature or humidity, in direct
sunlight or near strong magnetic fields.
To benefit from the highest standards of service and to ensure your guarantee remains in force, please always contact an approved TISSOT
retailer.
TISSOT Quartz chronographs benefit from the incomparable precision of quartz. Their power reserve usually enables them to operate for more than 2 years
®
in continuous use. If you envisage not wearing your chronograph for several weeks or months, we would advise you to put it to one side with the crown pulled out
into position II. This cuts the electrical power supply to the motor, thereby extending battery life considerably.

Replacing the battery

Once the battery has run flat, it must be replaced without delay by an approved TISSOT
Battery type: button-type zinc-silver oxide primary battery cell, high impedance / SR 936 PW / Renata 380.
Collection and treatment of end of life quartz watches*
This symbol indicates that this product should not be disposed with household waste. It has to be returned to a local authorized collection system. By
following this procedure you will contribute to the protection of the environment and human health. The recycling of the materials will help to conserve
natural resources.
* valid in the EU member states and in any countries with corresponding legislation.
w w w.t is s o t. c h

Chronograph (SPLIT function)

The SPLIT-TIME function enables you to stop the hands to read an intermediate time, without interrupting the
timing operation. When you restart, the hands « catch up » the lost time.
Crown in position I
 START
 SPLIT g Reading the time X
 RESTART (catchup)
 STOP g Reading the last time
 Reset counters to zero

Chronograph (double chrono)

This function allows you to time two events simultaneously.
Crown in position I
 START (T1, T2)
 SPLIT g Reading the time T1
 STOP T2 (memorizes T2)
 Reading the time T2
 Reset counters to zero

Chronograph (FLY-BACK function)

The FLY-BACK function can be activated while timing. The 30 minute, 60 second, chrono and 1/10 second
counter hands are reset and a new timing function starts automatically.
Crown in position I
 START
 FLY-BACK
 STOP
 Reset counters to zero
Advantage :
Pressing once on pusher C replaces successive pressing on pushers A to stop, B to reset and A to restart.

Setting the counters to zero

Crown in position II
In exceptional circumstances, the counter hands may not be set at or return to the 0 position (12 o'clock). In
this case, press each pusher to reset the hands concerned to zero:
A 60 second chrono counter hand
B Alarm hour hand (red)
C 30 minute counter hand
D 1/10 second counter hand
® representative or retailer.
4/4
*
® representative or
1 2 5 _EN / 12/ 0 9
