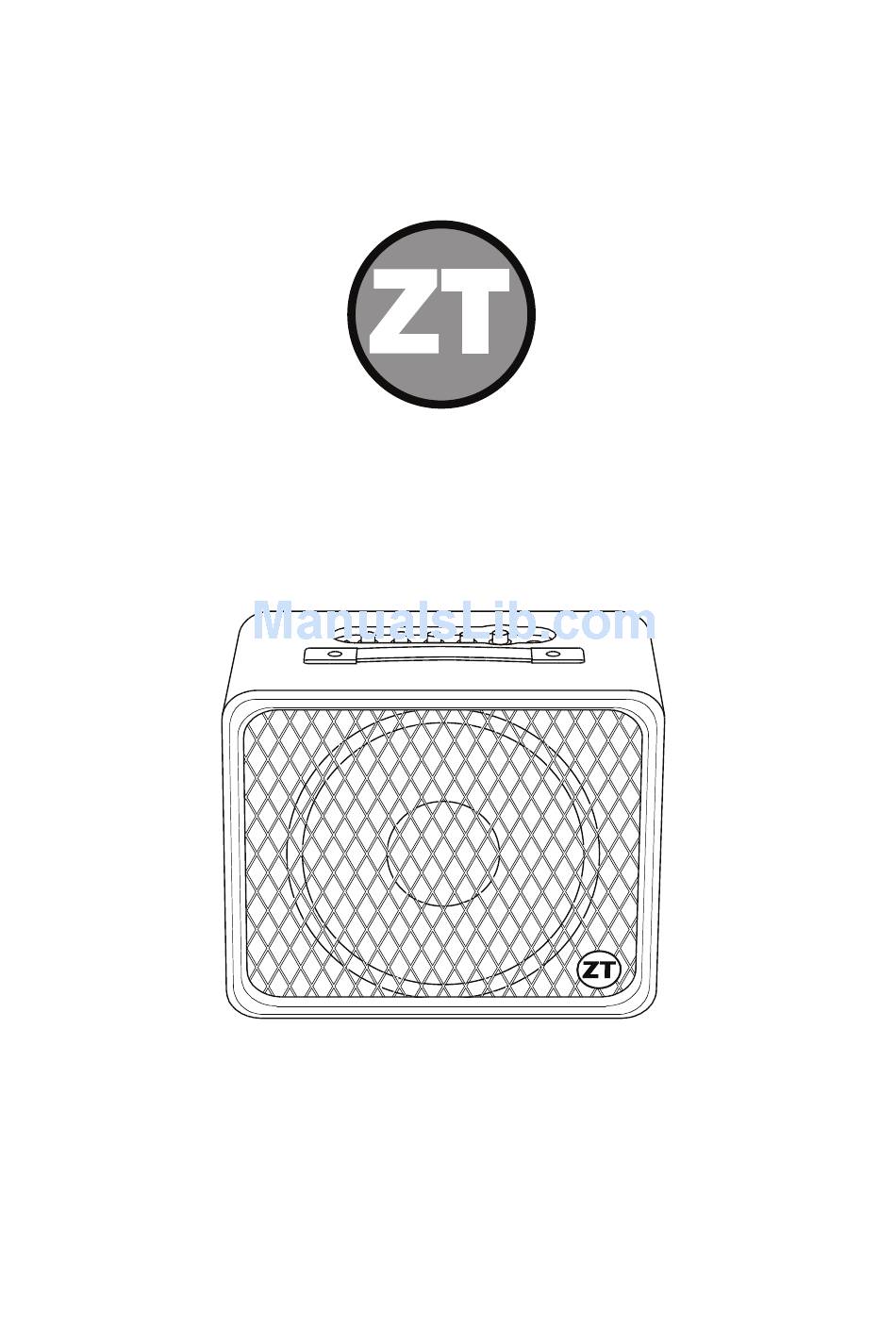

- Page 1 Owner’s Manual ZT Amplifiers Club...
-
Page 2: Important Safety Instructions
Refer all servicing to qualified service personnel. For service routed so that they are not likely to be walked upon or pinched by items warranty information call the ZT Amplifiers service number: placed upon or against them, paying attention to cords and plugs, 1-510-704-1868. - Page 3 Effects Loop Speaker Volume 1/4" plug in Guitar Amplifier CLG1S Minimum connection for ZT Amplifiers, Inc. Berkely, CA 94710 headphone/ line out Voltage Selects amplifier Turns power operating voltage Speaker on and off...
- Page 4 The ZT Club is the result of many years of study into the sound, feel and science of the world’s best musical instrument amplifiers. Our goal was not to clone or “model”...
- Page 5 The Signal Path: The main input to the Club is via a standard ¼” input on the top panel. This input has an impedance of 1MΩ, (2MΩ @ DC), and can accept working signals up to 6Vpp. It is protected against RF interference and ground-error overloads. After the input stage preamp, the signal is sent to an analog GAIN pot on the front panel, and then into a diode overdrive network.
- Page 6 The External Speaker Output: There is a ¼” external speaker output connector on the rear of the Club, which can be used to power an external cabinet. Please note the following IMPORTANT rules: ¥...
- Page 7 SPEAKER switch. This approach gives you total control of what is on or off at any given time. For example, you can use the Club to monitor the sound on stage, even when routing into the board via the line out.
- Page 8 Direct feeds are convenient, sometimes necessary, but they rarely capture the full tone the player is hearing. Like all ZT products, the Club’s sound is a result of a synergistic system, and the internal speaker is an important part of that system.
- Page 9 You won’t find anything else quite like it. So enjoy your Club, and please do send us any and all suggestions you have. We take our customers’ input very seriously. (Oh, and we like compliments, too!)
-
Page 10: Technical Support
ANY LOSS OF BUSINESS, INCOME, PROFIT, SATISFACTION, OR DAMAGES ARISING FROM THE LOSS OF USE OF SAME DUE TO DEFECTS OR AVAILABILITY OF SAME DURING SERVICE. NOTWITHSTANDING ANY DAMAGES YOU MIGHT INCUR FOR ANY REASON WHATSOEVER, THE ENTIRE LIABILITY OF ZT AMPLIFIERS SHALL BE LIMITED TO THE AMOUNT ACTUALLY PAID BY YOU FOR THE DEFECTIVE PRODUCT.
