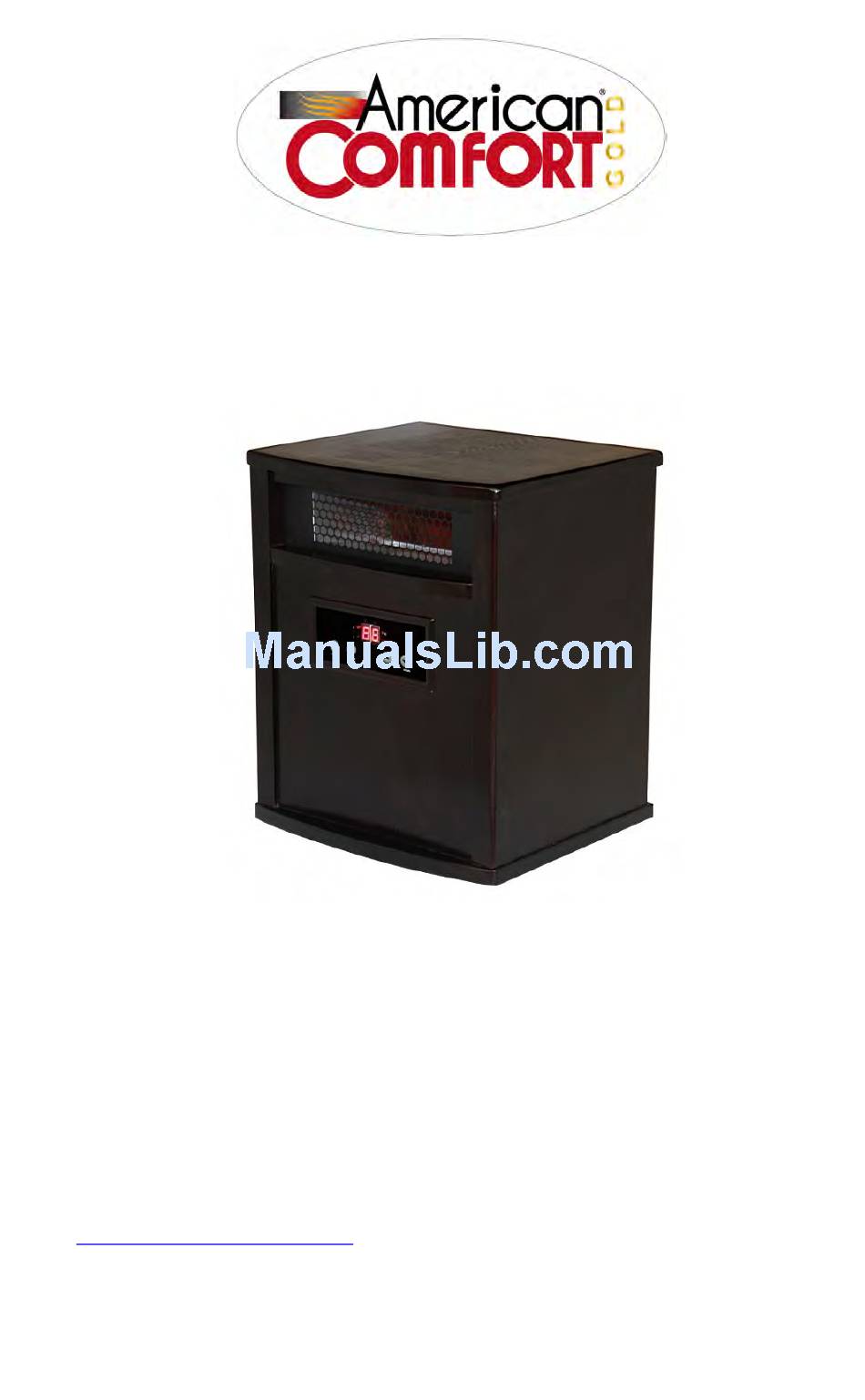

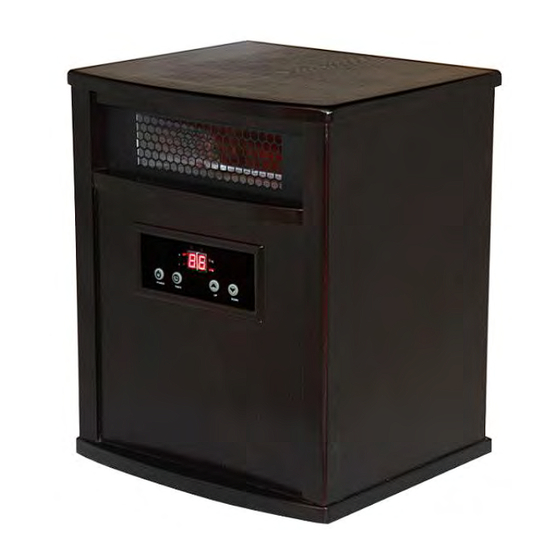

Portable Heater
ACW0037
User's Manual
FOR INDOOR USE ONLY
120VAC 15 AMP DEDICATED CIRCUIT
Carefully and thoroughly read this manual before using the Portable Heater for the
first time. We advise to keep this manual for regular review and future reference.
Heater is intended for residential use.
For more information about Warranty, Infrared Technology or Customer Service,
visit
www.AmericanComfort.com
/ Call 1-877-881-4471.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACW0037 and is the answer not in the manual?

Questions and answers

Related Manuals for American Comfort ACW0037

Summary of Contents for American Comfort ACW0037

  • Page 1 Portable Heater ACW0037 User’s Manual FOR INDOOR USE ONLY 120VAC 15 AMP DEDICATED CIRCUIT Carefully and thoroughly read this manual before using the Portable Heater for the first time. We advise to keep this manual for regular review and future reference.

  • Page 2: Important Instructions

      Introduction Portable Heater utilizes the latest infrared heat technology. It provides a safe, convenient, clean and economical way to distribute heat throughout your home or business office without producing deadly fumes or monoxide gases. The heating system produces therapeutic infrared heat that can potentially relieve symptoms of cardiovascular condition and inflammatory diseases.
  • Page 3    Never block the air intake or exhaust opening in any manner as this could lead to fire.  Do not locate heater, when in use, immediately below a receptacle.  Never operate heater in or around a bathtub, shower, or swimming pool. ...
  • Page 4   Components and Functions A. The Portable Heater is constructed with infrared quartz bulbs. Each infrared quartz bulb rates at 375W. These bulbs produce therapeutic infrared rays that warm the air which passes through the inner chamber. The infrared quartz bulbs are constructed with a stainless steel thermal conducting housing.
  • Page 5   Heater Specifications Model No. ACW0037 Carton Size: 15.0 in x 16.5 in x 20.9 in Heater Size: 12.5 in x 14.2 in x 17.0 in Net Weight: 26.2lbs Gross Weight: 30.0lbs Cabinet Color: TUSCAN, EXPRESSO, OAK Power Cord: 8 ft / 14 gauge...

  • Page 6: Function Display

      Operating Instructions Visually inspect the Portable Heater before operation. Do not operate the heater if any damages are detected. Contact your dealer immediately. NOTE: “ ” and “ ” buttons both on the control panel and remote control. 1) Plug the power cord directly into a conventional 120V 15 amp outlet and press the MASTER POWER switch on the rear of the Portable Heater.
  • Page 7   4) Delay start: a) Mode in Fan function, by pressing the “ ” button, the screen will display “02”, the maximum timer is 12 hours. When it reaches 12 hours, the screen will return to “02” and you will restart the setting timer by pressing“ ”...
  • Page 8   8) Portable Heater will turn off by pressing the “ “button on the front control panel. DO NOT TURN OFF THE MASTER POWER SWITCH ON THE REAR OF THE HEATER OR UNPLUG THE HEATER UNTIL THE FAN SHUTS DOWN. If the heater is still in the TIMER function, there will be (5) seconds sound alert to let you know that the timer has been cancelled.

  • Page 9: Troubleshooting

      Troubleshooting 1. PROBLEM: a. If the Heat Emitter is broken or damaged. b. If the Control Panel is not responding, the temperature reading is above 85°F / 32°c, or there is a burning odor coming from the Portable Heater c.
  • Page 10   7. PROBLEM: The heat emitter is functioning and the air outflow is working, but the temperature display on the LED panel does not increase. SOLUTION: The temperature sensor may be damaged or has become disconnected. Please contact the manufacturer immediately for further troubleshooting. 8.

  • Page 11: Warranty Information

      Warranty information 1. Warranty period is 36 months from the purchased date. 2. This warranty is void if the Portable Heater has been altered, misused, or has been repaired by an unauthorized dealer, or it is not installed according to stated instructions.
