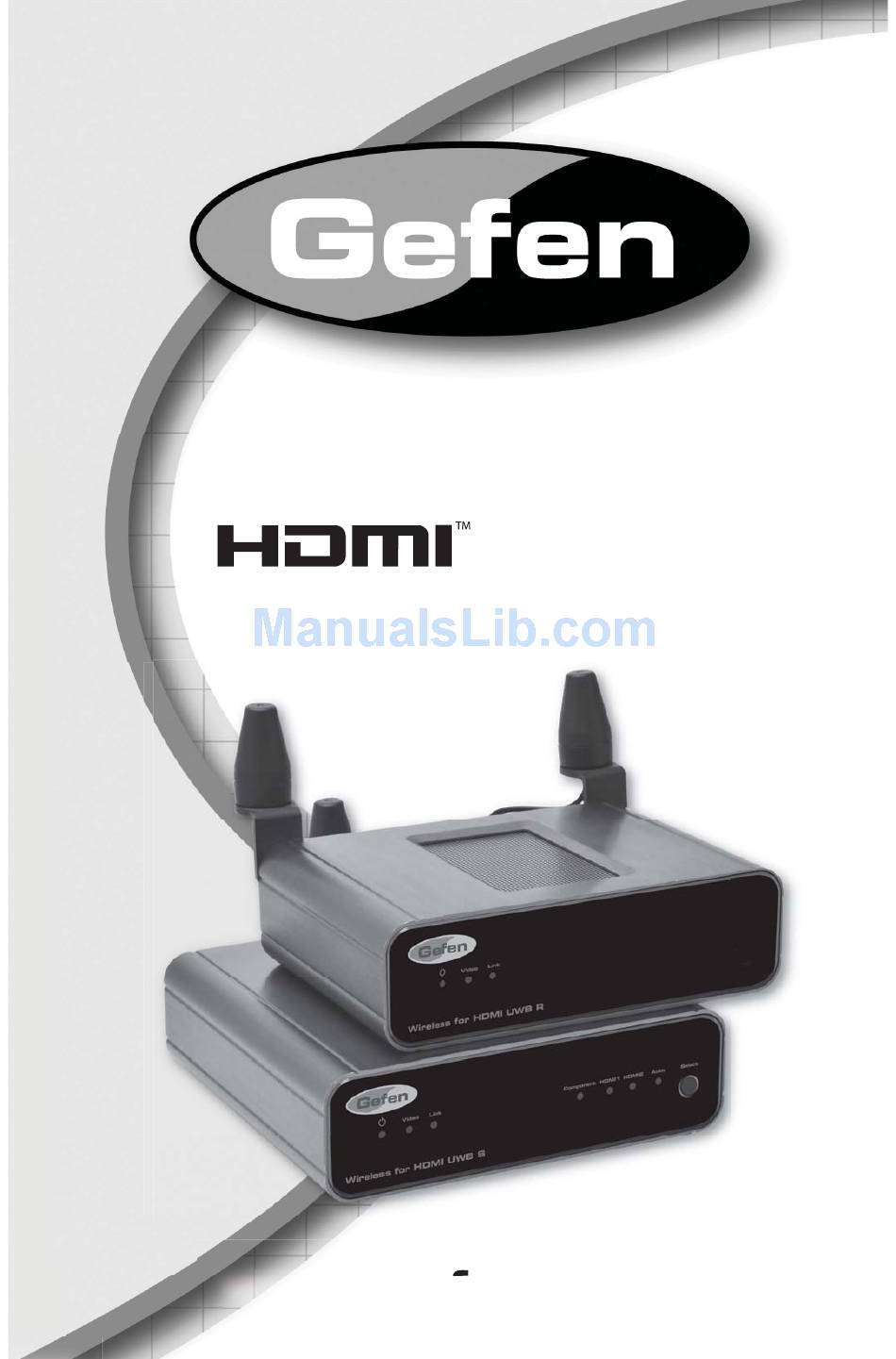

- Page 1 Wireless For EXT-WHDMI User Manual www.gefen.com...
- Page 2 Notice Gefen, LLC reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. Wireless for HDMI UWB is a trademark of Gefen, LLC HDMI, the logo, and High-Defi...
- Page 3 Wireless for HDMI Product Wireless for HDMI Product Placement Guide Placement Guide Optimizing the placement of your Wireless for HDMI product can Optimizing the placement of your Wireless for HDMI product can increase performance and ensure that you are getting increase performance and ensure that you are getting the best possible range and signal quality.
-
Page 4: Table Of Contents
CONTENTS Introduction Operation Notes Features Sender Panel Layout Sender Panel Descriptions Receiver Panel Layout Receiver Panel Descriptions Connecting The Wireless for HDMI UWB 10 Operating The Wireless for HDMI UWB 11 Specifi cations 12 Warranty... -
Page 5: Introduction
The Gefen Wireless for HDMI UWB The Gefen Wireless for HDMI UWB is the perfect solution for sending up to three High Defi nition Video sources to any one location without the hassle of wires. Up to 30 feet line of sight extension (less if going through a wall to an adjacent room) is achievable with supported resolutions of up to 1080p30. -
Page 6: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE WIRELESS FOR HDMI UWB • This equipment may only be operated indoors. Operation outdoors is in violation of 47 U.S.C.301 and could subject the operator to serious legal penalties. Operation is subject to the following two conditions: This device may not cause harmful interference. -
Page 7: Features
FEATURES Features • Real-time, visually lossless HD video compression • Two HDMI inputs and one Component Video / Analog Audio input • Fully HDMI and HDCP compliant • Supports HDMI 1.3 Lip Sync features for source devices • IR Blaster and IR Receiver jacks •... -
Page 8: Sender Panel Layout
SENDER PANEL LAYOUT Front Panel Front Panel Back Panel... -
Page 9: Sender Panel Descriptions
Auto LED Indicator This LED will become active when the Gefen HDMI For Wireless Extender is using the Auto Selection feature. When this feature is active, the input will automatically be selected when it detects that an HDMI source’s power has been turned on. - Page 10 An optional IR emitter/blaster connects to this port to relay IR commands that are captured by the IR receiver on the Gefen Wireless for HDMI UWB receiving device. The IR emitter head connects to the IR receiver of a source device.
-
Page 11: Receiver Panel Layout
RECEIVER PANEL LAYOUT Front Panel Front Panel Back Panel Back Panel... -
Page 12: Receiver Panel Descriptions
Connect the viewing display to this output port. If the detected display is a DVI type, the analog audio inputs on the Gefen Wireless for HDMI UWB will be used for the audio input. The analog audio output ports will also be active on the receiving unit. -
Page 13: Connecting The Wireless For Hdmi Uwb
HDMI receiver. Place the IR receiver head in a location where it will be in line of sight with your IR remote control device(s). Connect the included 5V DC power supplies to the Gefen Wireless for HDMI UWB sending and receiving devices. -
Page 14: Operating The Wireless For Hdmi Uwb
OPERATING THE WIRELESS FOR HDMI UWB Auto Switching Feature The Auto Switching feature on the Wireless for HDMI will monitor both of the HDMI input ports and will automatically switch when it detects that an a HDMI source’s power has been turned on. The memory feature will automatically return to the last viewed source when the unit detects that an HDMI source has been turned off. -
Page 15: Specifi Cations
SPECIFICATIONS Frequency band range ..............3.1 - 4.8 GHz Resolutions ..... 480i, 480p, 720p, 1080i and 1080p@24Hz, 25Hz, and 30Hz HDMI Version ..............HDMI v1.2a Compliant CEC Compliancy ......Consumer Electronics Control (CEC) compliant Compression Type ......ADI JPEG 2000 visual lossless compression Operating temperature .............. -
Page 16: Warranty
Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 17 Rev A4 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com This product uses UL listed power supplies.
