dbx 234s Specifications

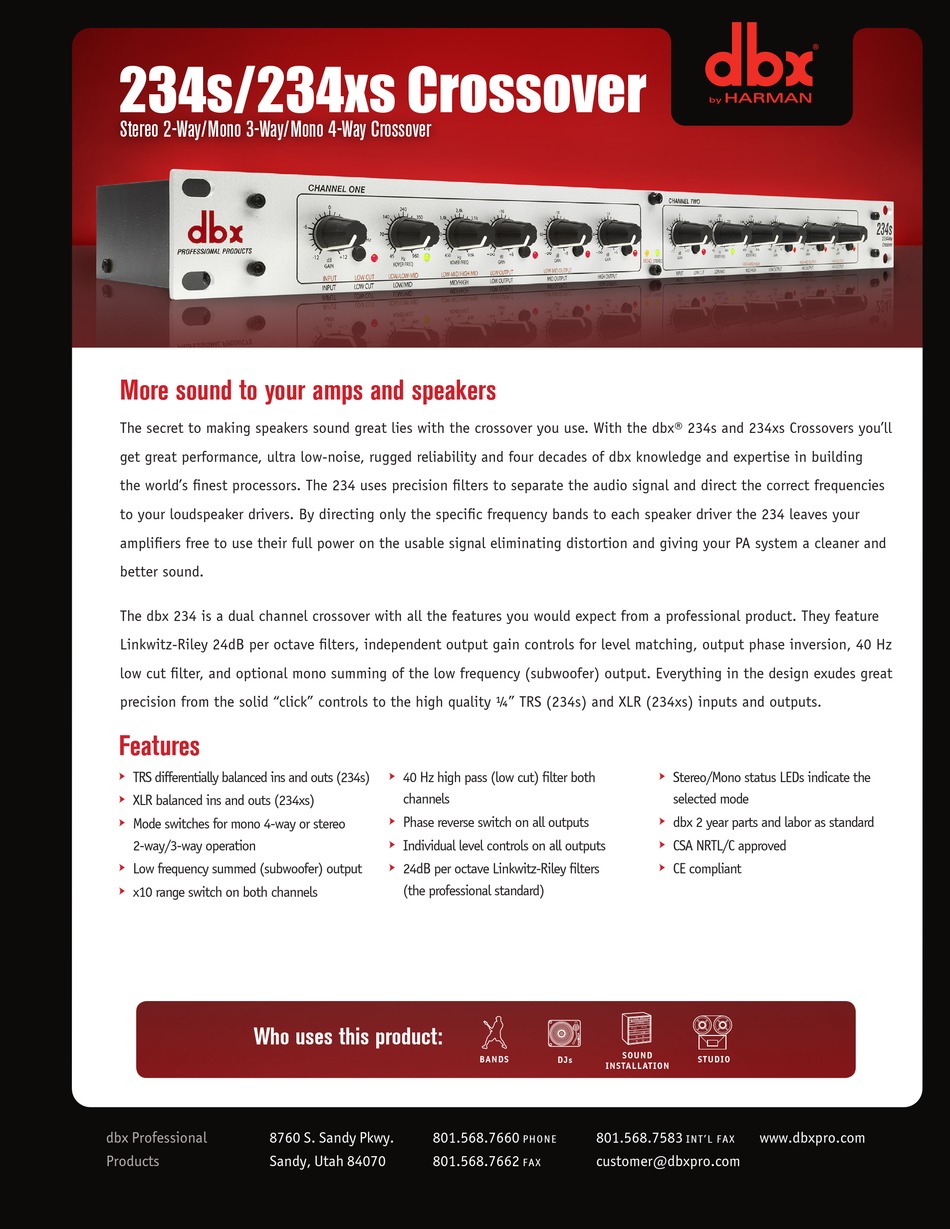

234s/234xs Crossover
Stereo 2-Way/Mono 3-Way/Mono 4-Way Crossover
More sound to your amps and speakers
The secret to making speakers sound great lies with the crossover you use. With the dbx® 234s and 234xs Crossovers you'll
get great performance, ultra low-noise, rugged reliability and four decades of dbx knowledge and expertise in building
the world's finest processors. The 234 uses precision filters to separate the audio signal and direct the correct frequencies
to your loudspeaker drivers. By directing only the specific frequency bands to each speaker driver the 234 leaves your
amplifiers free to use their full power on the usable signal eliminating distortion and giving your PA system a cleaner and
better sound.
The dbx 234 is a dual channel crossover with all the features you would expect from a professional product. They feature
Linkwitz-Riley 24dB per octave filters, independent output gain controls for level matching, output phase inversion, 40 Hz
low cut filter, and optional mono summing of the low frequency (subwoofer) output. Everything in the design exudes great
precision from the solid "click" controls to the high quality ¼" TRS (234s) and XLR (234xs) inputs and outputs.
Features
TRS differentially balanced ins and outs (234s)
<
XLR balanced ins and outs (234xs)
<
Mode switches for mono 4-way or stereo
<
2-way/3-way operation
Low frequency summed (subwoofer) output
<
x10 range switch on both channels
<
Who uses this product:
dbx Professional 8760 S. Sandy Pkwy.
Products Sandy, Utah 84070
C o m p l e t e L o u d s p e a k e r M a n a g e m e n t Sy s t e m
40 Hz high pass (low cut) filter both
<
channels
Phase reverse switch on all outputs
<
Individual level controls on all outputs
<
24dB per octave Linkwitz-Riley filters
<
(the professional standard)
BANDS DJs
801.568.7660
PHON E
801.568.7662
F AX
Stereo/Mono status LEDs indicate the
<
selected mode
dbx 2 year parts and labor as standard
<
CSA NRTL/C approved
<
CE compliant
<
SOUND
STUDIO
INSTALLATION
801.568.7583 www.dbxpro.com
