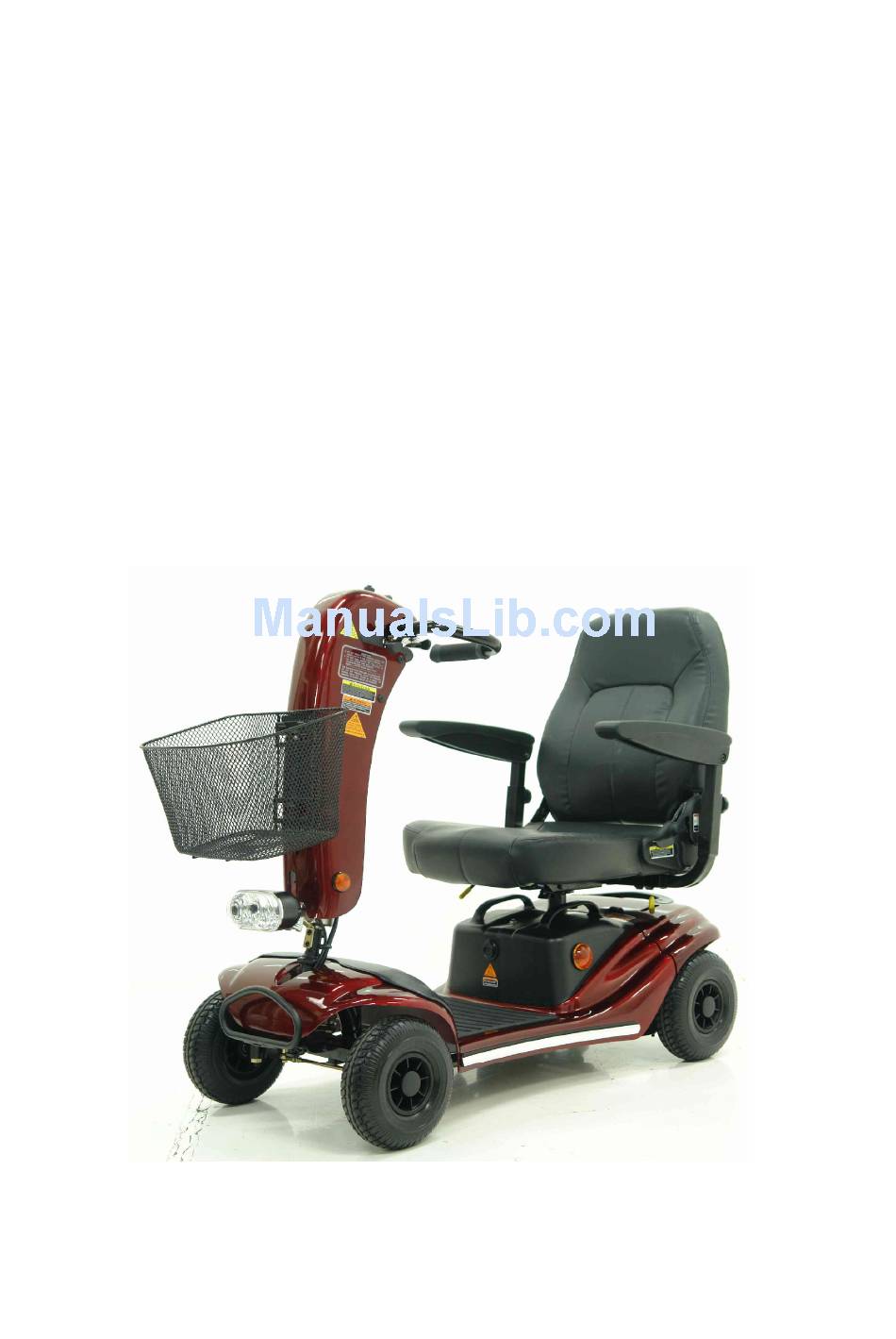

- Page 1 Evolut ion Sa fa ri Sc oot e rs Model # Safari Lite 4000 Portable Scooter User Manual...
-
Page 2: Table Of Contents
Evolut ion Sa fa ri Sc oot e rs Table of Contents INTRODUCTION .. - FEATURE GUIDE ¡- 3 SAFETY ADVICE ... -.. 4 EMI WARNING ¡ - 5-6 ADJUSTMENTS SCOOTER TILLER CONTROLS DRIVE/FREEWHEEL OPERATION . 10 STARTING TO DRIVE YOUR SCOOTER EXTRA GUIDELINES IN THE CONTROL OF YOUR SCOOTER . -
Page 3: Introduction
The Safari Lite 4000 is light and compact, and can be stored in small areas such as the trunk or back seat of your car. The compact features support easy transportation of your Safari Lite 4000 for today ¯s ative lifestyle. -
Page 4: Safety Advice
Make sure the tiller is properly adjusted to the user or damage and injury could result. DO NOT transport in a vehicle WHILE seated on the scooter. Evolution Technologies Inc. will not be responsible for any injury or damage that might result. -
Page 5: Emi Warning
Evolut ion Sa fa ri Sc oot e rs EMI WARNING Evolution Safari scooters may be susceptible to electromagnetic interference (EMI), which is a kind of interfering electromagnetic energy (EM) emitted from sources such as radio stations, TV stations, amateur radio (HAM) transmitters, two-way radio, and cellular phones. The interference (from radio wave sources) can cause the scooter to release its brakes, move by itself, or move in unintended directions. - Page 6 EMI. NOTE! There is no easy way to evaluate the overall immunity of the scooter. 5. Report all incidents of unintended movement or braking to your Evolution Technologies Inc. provider, and note whether there are sources of EMI nearby.
-
Page 7: Adjustments
Evolut ion Sa fa ri Sc oot e rs ADJUSTMENTS Tiller Angle Adjustment (Fig 2) At the base of the tiller is a round knob. Turn the knob counterclockwise to loosen the tiller and select the desired tiller angle. Turn the knob clockwise to securely lock the tiller into place. -
Page 8: Adjustments
Evolut ion Sa fa ri Sc oot e rs Seat Height Adjustment (Fig 5) Remove seat as described (fig 4). Remove battery pack (refer to disassembly section). Using two 13mm wrenches, remove locking bolt and nut. Adjust seat post up or down to desired position. -
Page 9: Scooter Tiller Controls
Battery Level pressed or released. There is a slight Indicator delay when the scooter accelerates and Finger decelerates; this allows the scooter to Lever Control Safari Lite 4000 smoothly and come to a smooth stop. Horn Lights Figure 7... -
Page 10: Drive/Freewheel Operation
The anti-tip wheels are located at the rear of the scooter frame (Fig 8). The scooter should not be used unless the anti-tipping wheels are in place. Evolution Technologies Inc. is not responsible for damage or injury incurred due to improper or misuse of the scooter. -
Page 11: Starting To Drive Your Scooter
STARTING TO DRIVE YOUR SCOOTER First Time Use Prior to using your Safari Lite 4000 Portable scooter for the first time, you must charge the batteries fully (refer to Battery Charging Procedures). Charging may take up to 12 hours. Charging the batteries completely prior to first time use will benefit battery efficiency. -
Page 12: Extra Guidelines In The Control Of Your Scooter
Evolut ion Sa fa ri Sc oot e rs EXTRA GUIDELINES IN THE CONTROL OF YOUR SCOOTER Ramps The stability of your scooter is governed by several factors such as the seating position, the angle of the slope and your height and weight. When approaching an incline, do so directly and not at an angle and where ever possible avoid making turns. -
Page 13: Transport / Storage
Evolut ion Sa fa ri Sc oot e rs TRANSPORT / STORAGE The Safari Lite 4000 Portable scooter is designed to be quickly and easily disassembled into sections for transportation and storage. Follow these simple guidelines for disassembly: Safari Lite 4000 Disassembly (Fig 10 & 11) 1) Remove the front basket: Lift basket up and off. -
Page 14: Batteries And Battery Charging
First Time Use Prior to using your Safari Lite 4000 Portable scooter for the first time, you must charge the batteries fully (refer to Battery Charging Procedures). Charging may take up to 12 hours. Charging the batteries completely prior to first time use will benefit battery efficiency. -
Page 15: Maintenance
Inspection for loose wheel bolts, seat and arm tightening bolts, and other nuts and bolts is recommended on a regular basis. Most lubricated components on the Safari Lite 4000 Portable scooter are designed to be maintenance free and are sealed. Therefore lubrication is not required for these components. -
Page 16: Technical Specifications
Evolut ion Sa fa ri Sc oot e rs TECHNICAL SPECIFICATIONS UNIT SPECIFICATIONS Safari Lite 4000 Overall Dimensions: L x W x H (Inches) mm (41.3 ± x 2 ¡± x 7¡±) 10 50 x 5 60 x Front 2 , 9... -
Page 17: Quarterly Inspection
NOTE! Regular (Monthly) inspection is strongly recommended by the manufacturer to ensure ultimate performance of the vehicle. Service Record: Date of Purchase: Purchaser: Model #: Safari Lite 4000 Serial #: Provider Unit Was Purchased From: M / D / Y M / D / Y... -
Page 18: Notes
Evolut ion Sa fa ri Sc oot e rs NOTES:... - Page 19 Evolut ion Sa fa ri Sc oot e rs NOTES:...
-
Page 20: Warranty And Disclaimer
Please refer to warranty information included with unit. DISCLAIMER Congratulations on your purchase of the Evolution Safari Lite 4000 Portable scooter. It is not intended to be used by individuals with physical limitations that could prevent the user from operating this unit safely.
