IMPORTANT SAFETY INSTRUCTIONS INSTRUCTIONS PERTAINING TO A RISK INSTRUCTIONS RELATIVES AU RISQUE OF FIRE, ELECTRIC SHOCK, DE FEU, CHOC ÉLECTRIQUE, OU OR INJURY TO PERSONS. BLESSURES AUX PERSONNES. CAUTION: AVIS: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO AFIN DE REDUIRE LES RISQUE DE CHOC ELECTRIQUE, NOT REMOVE COVER (OR BACK).
Page 3

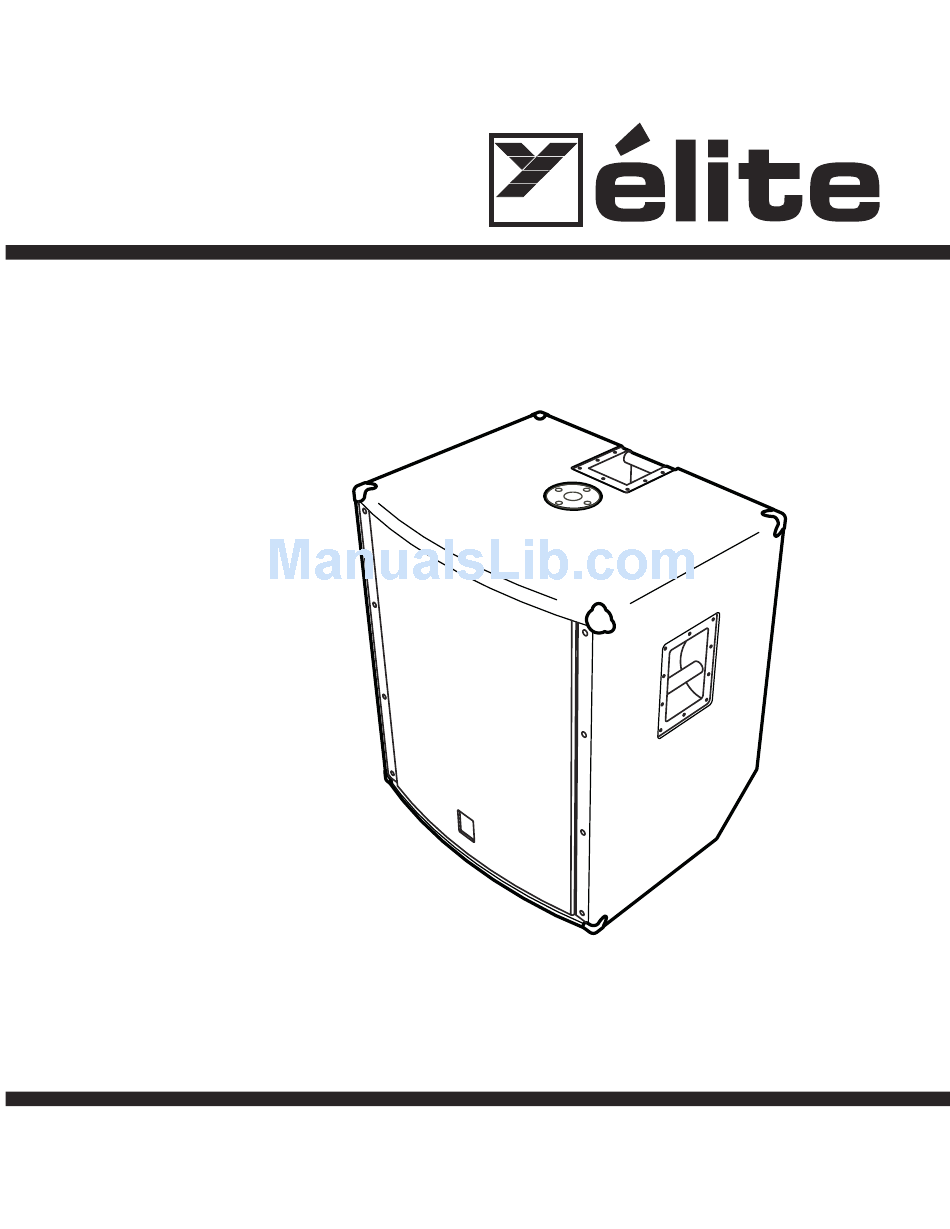

Introduction The LS800P is a premium quality integrated subwoofer and power amplifier. Created as an easy-to-setup addition to any P.A., the LS800P will extend the bass of a typical sound system with the least amount of complication. The LS800P has been intended to operate primarily with line level signals (with the option to accept Speaker Level signals).
Page 4
INCREASE THE OUTPUT. DO NOT INCREASE SETTING WHILE OPERATING AT HIGH LEVELS. Note: The LS800P built-in stand mounting adapter can be used with Yorkville SW-Teletube accessory to support our E160 cabinets. The support tube can be adusted up to it’s full 5’4” extension safely as long as the LS800P is not inclined more than 10˚...
Page 5
LS800P CONFIGURATION EXAMPLES STEREO PASSIVE SPEAKER CONFIGURATION STEREO ACTIVE SPEAKER CONFIGURATION INPUT Switch set to SPKR INPUT Switch set to LINE LS800P #1 LS800P #2 LS800P MIXER STEREO ACTIVE SPEAKER CONFIGURATION INPUT Switch set to LINE LS800P #1 LS800P #2 MIXER LS800P LINE / SPKR...
Page 6
Introduction Le LS800P est un ensemble de qualité supérieur comprenant le sub-woofer et l'amplificateur de puissance intégré. Créé pour offrir une addition facile d'installation pour tout système de sonorisation, le LS800P rehaussera les graves d'un système de sonorisation typique tout en gardant les complications au minimum.
Page 7
N'augmentez pas le réglage du niveau lors d'opération à niveaux élevés. NOTEZ BIEN: L’adapteur de support LS800P peut être utilisé avec l’accessoire YORKVILLE SW-Teletube pour supporter les enceintes E160. Le tube de support peut être ajusté à sa pleine extension de 5’4” avec sécurité guand le LS800P est incliné...
Page 8
CONFIGURATION AVEC HAUT-PARLEUR PASSIF STÉRÉO CONFIGURATION AVEC HAUT-PARLEUR ACTIF STÉRÉO Commutateur d'ENTRÉE réglé à la position "SPKR" Commutateur d'ENTRÉE réglé à la position "LINE" LS800P #1 LS800P #2 LS800P MIXER CONFIGURATION AVEC HAUT-PARLEUR ACTIF STÉRÉO Commutateur d'ENTRÉE réglé à la position "LINE" LS800P #1 LS800P #2 MIXER...
Page 9
SPECIFICATIONS Power Requirements: 120V: 117V-120V AC 60 Hz 6.6A 230V: 230VAC 50 Hz 3.3A Power Amplifier Power (internal): 1500 Watts Frequency response: 40 Hz to 150 Hz Maximum SPL: 135 dB Input Impedance: 100 kOhms (Line), 10kOhms Speaker Speaker components: 18 inch (4 inch voice coil) Connection Notes LINK:...
Page 10
WEB: www.yorkville.com WORLD HEADQUARTERS CANADA U.S.A. Yorkville Sound Yorkville Sound Inc. 550 Granite Court 4625 Witmer Industrial Estate Pickering, Ontario Niagara Falls, New York L1W-3Y8 CANADA 14305 USA Voice: (905) 837-8481 Voice: (716) 297-2920 Fax: (905) 837-8746 Fax: (716) 297-3689...
