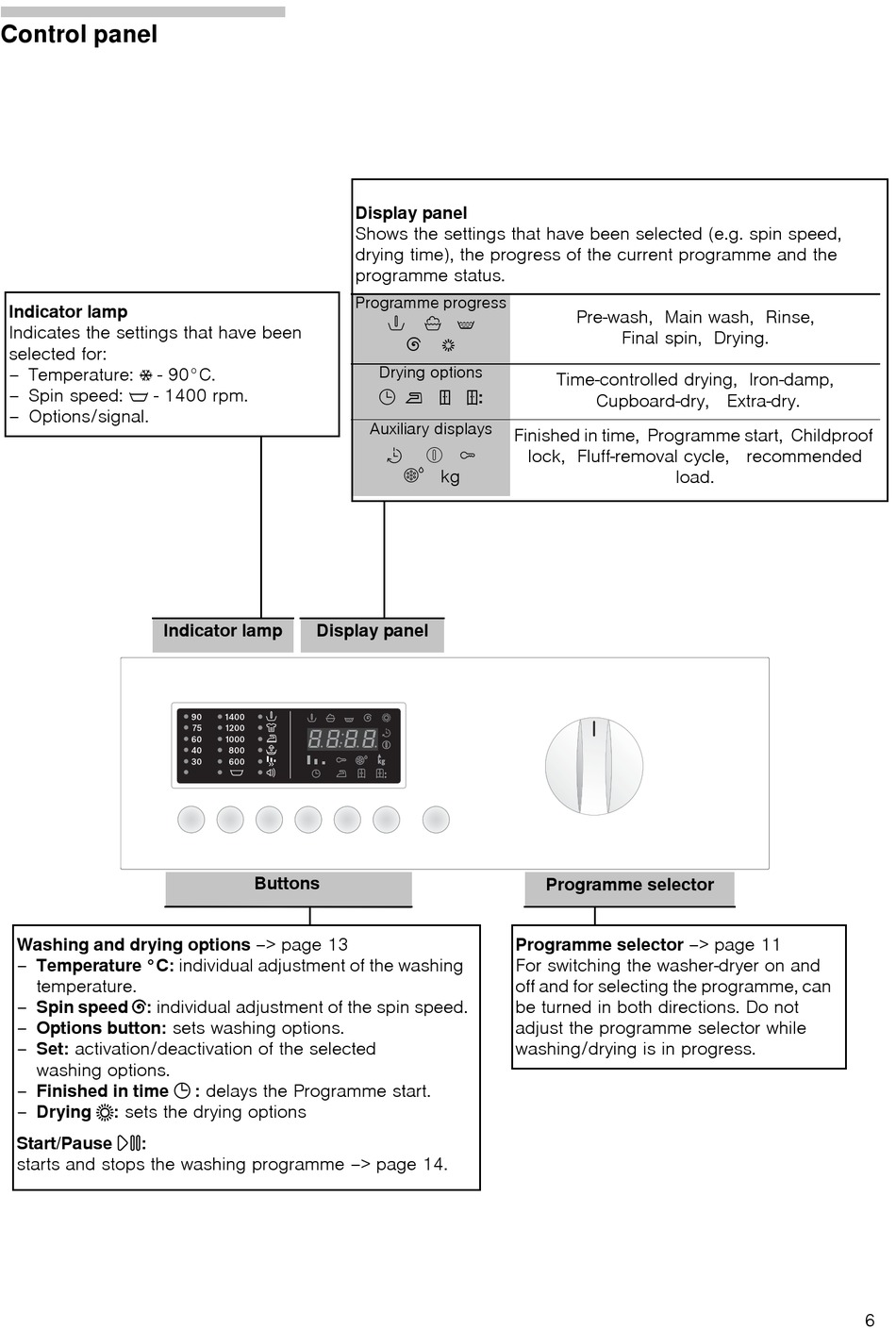

Control panel

Indicator lamp
Indicates the settings that have been
selected for:
– Temperature: Ž - 90°C.
– Spin speed: $ - 1400 rpm.
– Options/signal.
Indicator lamp
Washing and drying options –> page 13
– Temperature °C: individual adjustment of the washing
temperature.
– Spin speed B: individual adjustment of the spin speed.
– Options button: sets washing options.
– Set: activation/deactivation of the selected
washing options.
– Finished in time 0 : delays the Programme start.
– Drying 5: sets the drying options
Start/Pause A:
starts and stops the washing programme –> page 14.
Display panel
Shows the settings that have been selected (e.g. spin speed,
drying time), the progress of the current programme and the
programme status.
Programme progress
T
B
Drying options
5 P e e:
Auxiliary displays
2
l
Display panel
Buttons
Pre-wash, Main wash, Rinse,
N '
'
Time-controlled drying, Iron-damp,
Finished in time, Programme start, Childproof
lock, Fluff-removal cycle, recommended
% E
kg
Programme selector
Programme selector –> page 11
For switching the washer-dryer on and
off and for selecting the programme, can
be turned in both directions. Do not
adjust the programme selector while
washing/drying is in progress.
Final spin, Drying.
Cupboard-dry, Extra-dry.
load.
