CAME UNITED KINGDOM LTD
UNIT 3
ORCHARD PARK INDUSTRIAL ESTATE,
TOWN STREET, SANDIACRE,
NOTTINGHAM NG10 5BP
TEL: 0115 921 0430
FAX: 0115 921 0431
INTERNET - www.cameuk.com
E-MAIL - enquiries@cameuk.com
Kit U 4281 includes:
1 x 001 V 600
1 x 001 AF 43S
1 x 001 TOP-432SA Radio transmitter 433.92 MHz
1 x 001 TOP-A433N Radio antenna 433.92 MHz
Kit U 4281-B includes:
1 x 001 V 600
1 x 001 AF 43S
1 x 001 TOP-432SA Radio transmitter 433.92 MHz
1 x 001 TOP-A433N Radio antenna 433.92 MHz
1 x 001 DOC-P
1 x 001 V0675
Gearmotor built-in control panel and courtesy light
Radio receiver 433.92 MHz
Gearmotor built-in control panel and courtesy light
Radio receiver 433.92 MHz
Weatherproof pushbutton
Belt transmission guide
TECHNICAL
HELPLINE
0115 921 0430
Advertisement
Table of Contents
Related Manuals for CAME VER KIT
Summary of Contents for CAME VER KIT

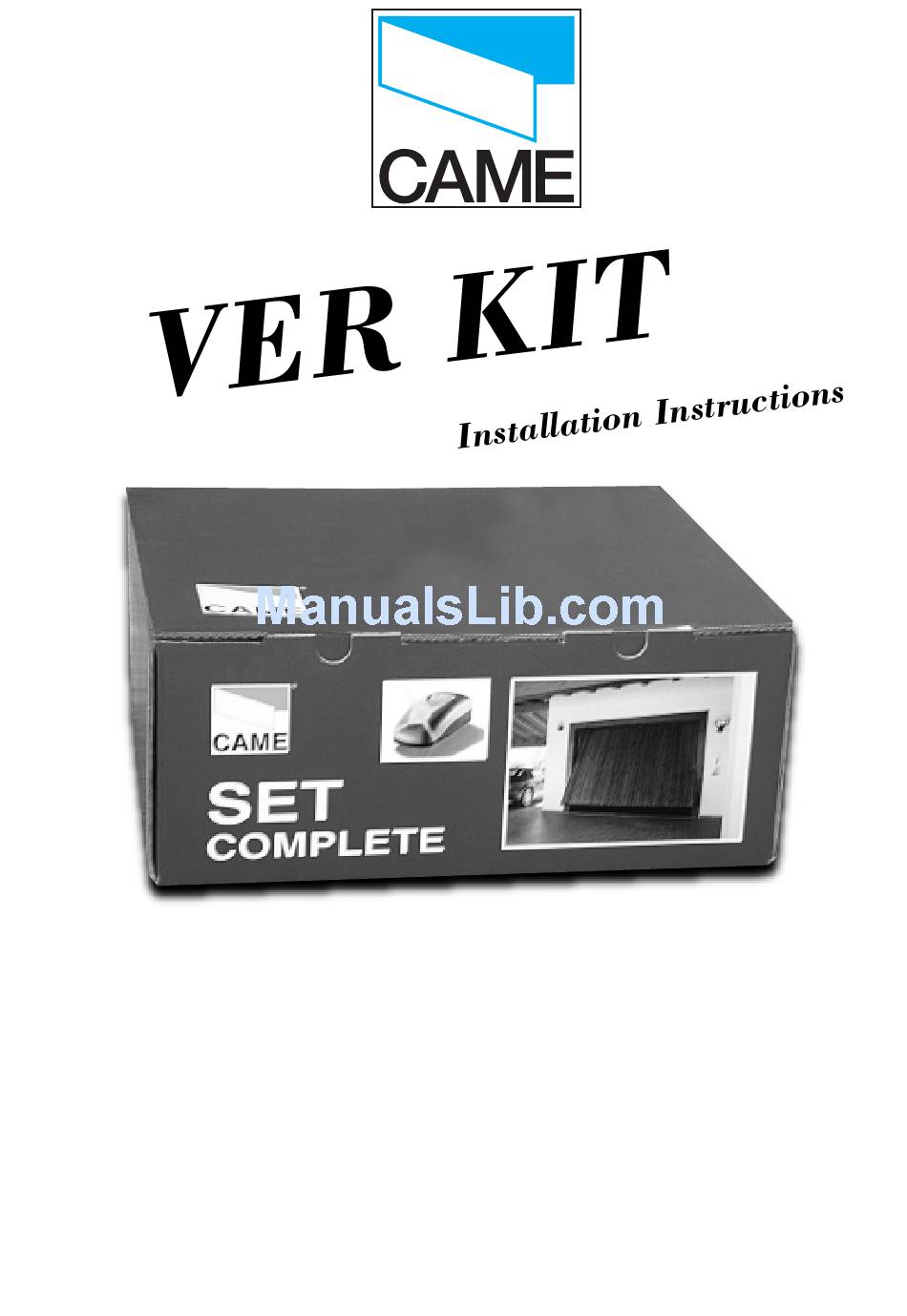

- Page 1 CAME UNITED KINGDOM LTD TECHNICAL UNIT 3 ORCHARD PARK INDUSTRIAL ESTATE, HELPLINE TOWN STREET, SANDIACRE, NOTTINGHAM NG10 5BP 0115 921 0430 TEL: 0115 921 0430 FAX: 0115 921 0431 INTERNET - www.cameuk.com E-MAIL - enquiries@cameuk.com Kit U 4281 includes: 1 x 001 V 600...
- Page 2 INTRODUCTION These instructions will show you how to install a VER automatic traction system for overhead and sectional doors. 1 - VER unit 2 - incorporated control panel Accessories 3 - Radio receiver 4 - Internal pushbutton UNDER NO CIRCUMSTANCES SHOULD THIS EQUIPMENT BE OPERATED UNLESS FITTED TO A GATE. FAILURE TO COMPLY WILL INVALIDATE THE GUARANTEE.
- Page 3 - for garage-type doors up to 3,4 m tall with counterweights doors; - for garage-type doors up to 3,25 m tall with springs and - Designed and built entirely by CAME Cancelli automatici sectionals S.p.A., in full compliance with current safety standards UNI 8612, and with an IP 40 protecting rating;...
-
Page 4: Examples Of Applications
EXAMPLES OF APPLICATIONS EXAMPLES OF APPLICATIONS A - Sectional door A - Sectional door B - Spring-balanced overhead door B - Spring-balanced overhead door C - Overhead door with counterweight C - Overhead door with counterweight balancing balancing or canopy door EXTERNAL DIMENSIONS Cable exit * For heights exceeding 540mm, it is necessary to use additional brackets or struts... -
Page 5: Unit Assembly
UNIT ASSEMBLY PREARRANGEMENT OF TRANSMISSION GUIDE - Fasten the bracket to the transmission guide’s front terminal with the nuts and bolts provided; M6x14 TRANSMISSION GUIDE FASTENING - Fasten the transmission guide in the following manner: a) for sectional doors, fasten the bracket directly to the wall over the spring-release coiling shaft using adequate dowels and screws;... - Page 6 b) for spring garage-type doors, fasten the bracket on the fixed frame with adequate screws or rivets. c) for garage-type doors with counterweights or canopy doors, verify the maximum door sliding point (fig.1) and consequently fasten the bracket on high with adequate screws or rivets. N.B.: for garage-type doors with counterweights it is necessary to use the V201 adapter arm (read the technical documentation provided with the accessory).
- Page 7 - Raise and set the guide horizontally to establish the distance from the ceiling; then fasten the angle sections or fastening brackets provided (cutting off any excess part) to the guide’s back terminal. N.B. the transmission guide has three ø7 holes for further fastening should it prove necessary to reinforce the unit.
- Page 8 SLIDING LEVER FASTENING - Centrally fix the sliding lever to the door’s upper crosspiece with the rivets provided; - Mount the unlocking handle by screwing it to the preassembled unlocking unit’s revolving plug and fasten it in the recommended position with the lock nut; - Move the sliding runner and hook it to the transmission arm after removing the preset screw.
- Page 9 GEAR MOTOR INSTALLATION - Remove the automation container cover by unscrewing the ø3.9x13 screw; - Fasten the container to the sliding guide’s back terminal in the desired position with the ø6.3x45 screws provided; CAME ø3,9x13 ø6,3x45 GEAR MOTOR UNLOCKING - Turn the handle as illustrated; the rehooking of the release will take place automatically at the first manoeuvre, re-setting the handle in the original position.
- Page 10 TECHNICAL DESCRIPTION ZL55 CONTROL PANEL The card is powered with a 230V (AC) power outlet and its - Pre-flashing. After an opening or closing command, the input is protected with a 1.6A line fuse. Control systems are flasher connected to the 10-E flashes for 5 seconds before powered by low voltage and protected by a 315mA fuse.
-
Page 11: Control Panel
CONTROL PANEL Main compoments 1 - 230V electric plug 2 - Line fuse, 1,6A 3 - End-stop microswitches 4 - Location for emergency batteries 5 - Gear motor 6 - Trasformer 7 - Trasformer connection terminal board 8 - Motor fuse, 8A (V600), 10A (V700) 9 - Gear motor and end-stop connection terminal board 10 - Signal LED... -
Page 12: Electrical Connections
ELECTRICAL CONNECTIONS M N FA FC F 10 11 E E3 1 2 3 7 C1 24 (dc) motor Connection limit switch open (N.C.) Connection limit switch closes (N.C.) Powering accessories (maxc 40W) - 24V (A.C.) with power supply at 230V (A.C.) - 23V (D.C.) with power supply at 24V (A.C.) 24V output in motion (e.g. - Page 13 ADJUSTMENTS Trimmer T.C.A. = Automatic closing time adjustment Trimmer SENS. = Amperometric sensitivity adjustment T.C.A. SENS. AP / CH APRE FUS. MOTORE 8A FUS. CENTR. 630mA FUS. ACC. 3,15A T.C.A. SENS. T.C.A. SENS. 120" 1" max. min. Minimum power Maximum power...
-
Page 14: Selection Of Functions
SELECTION OF FUNCTIONS 10-way dip-switch T.C.A. SENS. AP / CH APRE FUS. MOTORE 8A FUS. CENTR. 630mA FUS. ACC. 3,15A 1 ON Automatic closure enabled; 2 ON "Open-stop-close-stop” with pushbutton (2-7) and radio control (AF board inserted) enabled; 2 OFF "Open-close”... -
Page 15: Adjusting The Limit Switches
ADJUSTING THE LIMIT SWITCHES IMPORTANT: READ INSTRUCTIONS CAREFULLY BEFORE PROCEEDING WITH ADJUSTMENTS. During opening there is only one end-stop mode; During closing there is the possibility of slowing down before stopping. Set dip 6 to ON during all the subsequent adjustments. Turn it back to OFF when finished. SENS. - Page 16 Closing end-stop adjustment - Set dip 10 to ON. - Keep the "AP/CH" key pressed until the door reaches the closing ledge position. - Turn the red cam until the closing end-stop microswitch is inserted and secure it with a screw. SENS.
- Page 17 Slowing when closing end-stop adjustment - Set dip 10 to OFF. - Keep the “AP/CH” key pressed until the door is approximately 20 cm from the closing ledge; - Turn the red cam until the closing end-stop microswitch is inserted and secure it with a screw. T.C.A.
- Page 18 Safety screw-locks With the door either open or closed, set safety screw-locks placed in the transmission guide on the sliding runner and screw them on. SLIDING BLOCK SLIDING BLOCK MECHANICAL END-STOP MECHANICAL END-STOP...
-
Page 19: Radio Control Installation
RADIO CONTROL INSTALLATION PROCEDURE A. insert an AF card **. B. encode transmitter/s. C. store code in the motherboard. T.C.A. SENS. AP / CH MOTHERBOARD APRE "AF" BOARD The AF board should ALWAYS be inserted when the power is off because the motherboard only recognises it when it is powered. - Page 20 TRANSMITTER ENCODING Use on existing system (with TOP at 433.92 MHz) Press the key to encode until, after 7 seconds of flashing, the red signalling LED remians on. (fig A) Within 10 seconds, bring the existing transmitter closer from the rear part and press the pushbutton you want to copy for a few seconds.
-
Page 21: Periodic Maintenance
CODE STORAGE Keep the CH1 key pressed on the base card (the signal LED will flash), and with a key on the transmitter the code is sent, the LED will remain lit to signal the successful saving of the code. Lit LED "AF"... - Page 22 NOTES...
- Page 23 NOTES...
-
Page 24: Contact Information
CONTACT INFORMATION CAME UNITED KINGDOM LTD UNIT 3 ORCHARD PARK INDUSTRIAL ESTATE TOWN STREET, SANDIACRE, NOTTINGHAM NG10 5BP TEL: 0115 921 0430 FAX: 0115 921 0431 INTERNET : www.cameuk.com E-MAIL: enquiries@cameuk.com THIS INSTALLATION WAS COMPLETED BY: ................. NAME.............. ADDRESS..........................
