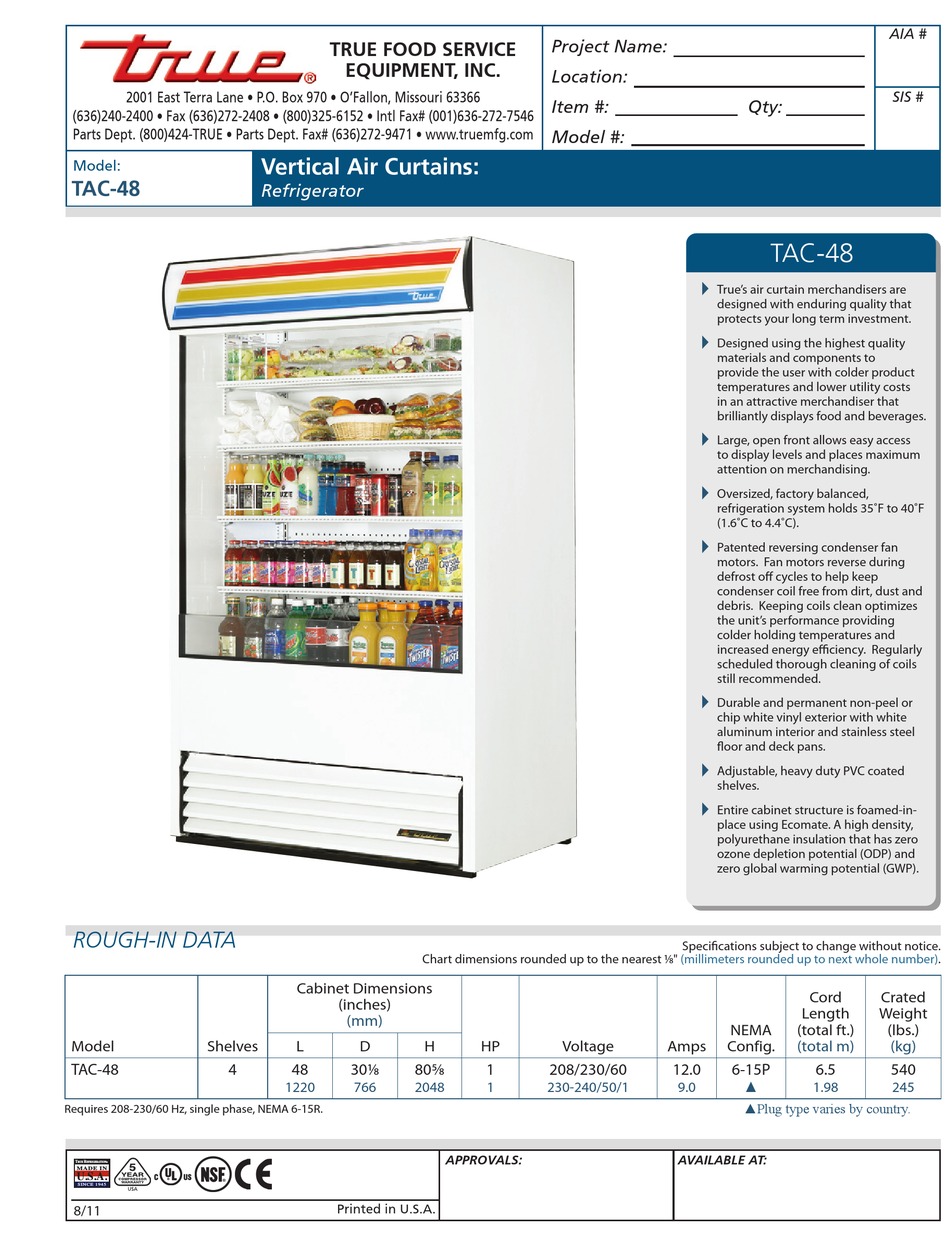

True TAC-48 Specifications

2001 East Terra Lane • P.O. Box 970 • O'Fallon, Missouri 63366
(636)240-2400 • Fax (636)272-2408 • (800)325-6152 • Intl Fax# (001)636-272-7546
Parts Dept. (800)424-TRUE • Parts Dept. Fax# (636)272-9471 • www.truemfg.com
Model:
TAC-48
Rough-In Data
Model Shelves
TAC-48 4
Requires 208-230/60 Hz, single phase, NEMA 6-15R.
T R
RUE EFRIGERATION
®
MADE IN
U.S.A.
SINCE 1945
8/11
TRUE FOOD SERVICE
EQUIPMENT, INC.
Vertical Air Curtains:
Refrigerator
Chart dimensions rounded up to the nearest 1/8"
Cabinet Dimensions
(inches)
(mm)
L D H
48 301/8 805/8
1220 766 2048
Printed in U.S.A.
Project Name:
Location:
Item #:
Model #:
HP Voltage
1 208/230/60
1 230-240/50/1
ApprovAls:
Qty:
TAC-48

True's air curtain merchandisers are
designed with enduring quality that
protects your long term investment.

Designed using the highest quality
materials and components to
provide the user with colder product
temperatures and lower utility costs
in an attractive merchandiser that
brilliantly displays food and beverages.

Large, open front allows easy access
to display levels and places maximum
attention on merchandising.

Oversized, factory balanced,
refrigeration system holds 35˚F to 40˚F
(1.6˚C to 4.4˚C).

Patented reversing condenser fan
motors. Fan motors reverse during
defrost off cycles to help keep
condenser coil free from dirt, dust and
debris. Keeping coils clean optimizes
the unit's performance providing
colder holding temperatures and
increased energy efficiency. Regularly
scheduled thorough cleaning of coils
still recommended.

Durable and permanent non-peel or
chip white vinyl exterior with white
aluminum interior and stainless steel
floor and deck pans.

Adjustable, heavy duty PVC coated
shelves.

Entire cabinet structure is foamed-in-
place using Ecomate. A high density,
polyurethane insulation that has zero
ozone depletion potential (ODP) and
zero global warming potential (GWP).
Specifications subject to change without notice.
(millimeters rounded up to next whole
Cord
Length
NEMA (total ft.)
Amps Config. (total m)
12.0 6-15P 6.5
▲
9.0 1.98
▲Plug type varies by country.
AvAilAble At:
AIA #
SIS #
number).
Crated
Weight
(lbs.)
(kg)
540
245
