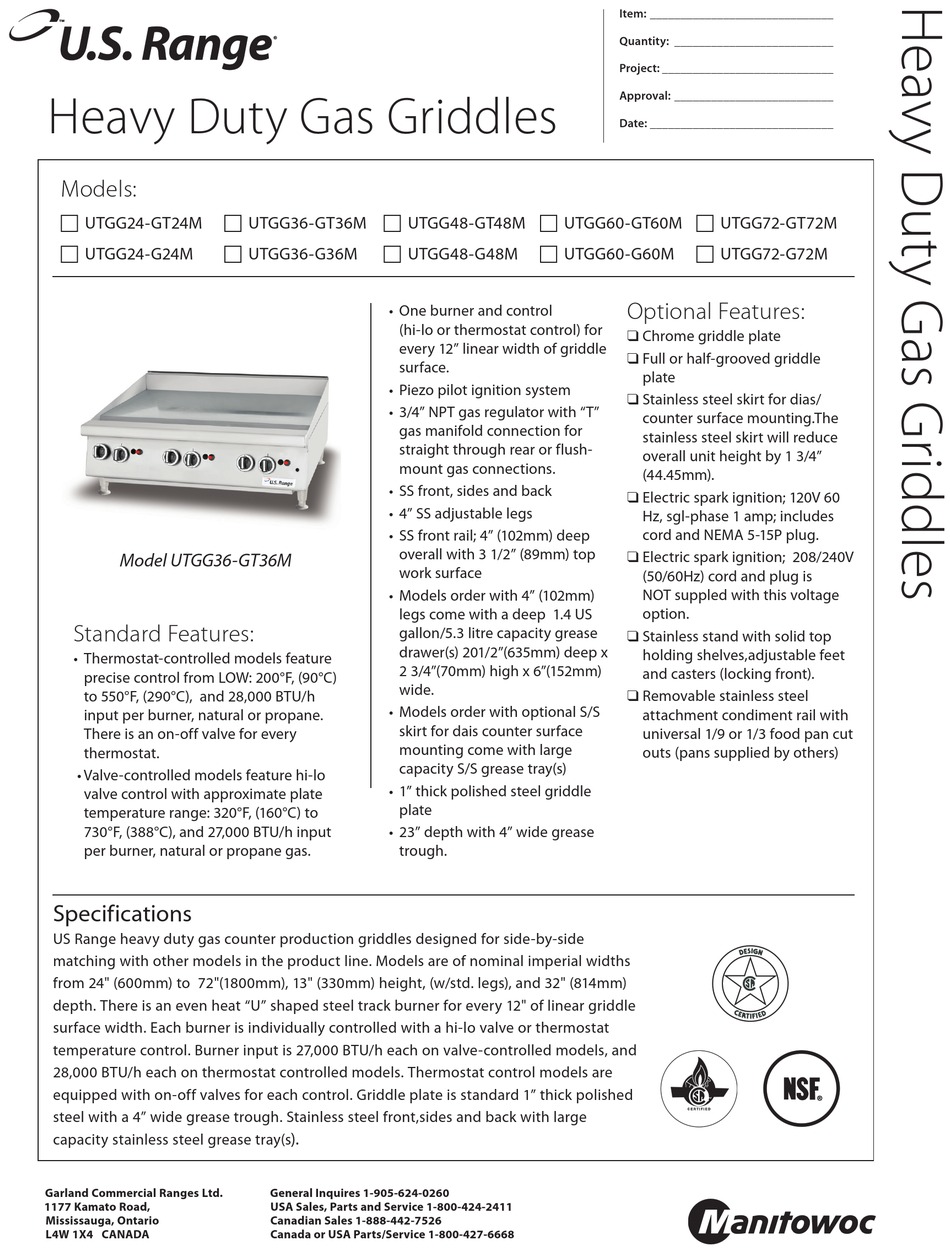

Heavy Duty Gas Griddles

Models:

 UTGG24-GT24M
 UTGG24-G24M

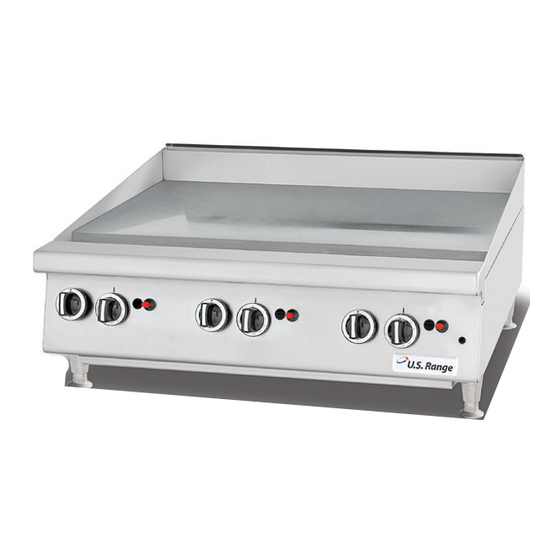

Model UTGG36-GT36M

Standard Features:

• Thermostat-controlled models feature
precise control from LOW: 200°F, (90°C)
to 550°F, (290°C), and 28,000 BTU/h
input per burner, natural or propane.
There is an on-off valve for every
thermostat.
• Valve-controlled models feature hi-lo
valve control with approximate plate
temperature range: 320°F, (160°C) to
730°F, (388°C), and 27,000 BTU/h input
per burner, natural or propane gas.

Specifications

US Range heavy duty gas counter production griddles designed for side-by-side
matching with other models in the product line. Models are of nominal imperial widths
from 24" (600mm) to 72"(1800mm), 13" (330mm) height, (w/std. legs), and 32" (814mm)
depth. There is an even heat "U" shaped steel track burner for every 12" of linear griddle
surface width. Each burner is individually controlled with a hi-lo valve or thermostat
temperature control. Burner input is 27,000 BTU/h each on valve-controlled models, and
28,000 BTU/h each on thermostat controlled models. Thermostat control models are
equipped with on-off valves for each control. Griddle plate is standard 1" thick polished
steel with a 4" wide grease trough. Stainless steel front,sides and back with large
capacity stainless steel grease tray(s
Garland Commercial Ranges Ltd.
1177 Kamato Road,
Mississauga, Ontario
L4W 1X4 CANADA
 UTGG36-GT36M  UTGG48-GT48M  UTGG60-GT60M  UTGG72-GT72M
 UTGG36-G36M
 UTGG48-G48M
• One burner and control
(hi-lo or thermostat control) for
every 12" linear width of griddle
surface.
• Piezo pilot ignition system
• 3/4" NPT gas regulator with "T"
gas manifold connection for
straight through rear or flush-
mount gas connections.
• SS front, sides and back
• 4" SS adjustable legs
• SS front rail; 4" (102mm) deep
overall with 3 1/2" (89mm) top
work surface
• Models order with 4" (102mm)
legs come with a deep 1.4 US
gallon/5.3 litre capacity grease
drawer(s) 201/2"(635mm) deep x
2 3/4"(70mm) high x 6"(152mm)
wide.
• Models order with optional S/S
skirt for dais counter surface
mounting come with large
capacity S/S grease tray(s)
• 1" thick polished steel griddle
plate
• 23" depth with 4" wide grease
trough.
).
General Inquires 1-905-624-0260
USA Sales, Parts and Service 1-800-424-2411
Canadian Sales 1-888-442-7526
Canada or USA Parts/Service 1-800-427-6668
Item: ______________________________
Quantity: __________________________
Project: ____________________________
Approval: __________________________
Date: ______________________________
 UTGG60-G60M
 UTGG72-G72M

Optional Features:

❑ Chrome griddle plate
❑ Full or half-grooved griddle
plate
❑ Stainless steel skirt for dias/
counter surface mounting.The
stainless steel skirt will reduce
overall unit height by 1 3/4"
(44.45mm).
❑ Electric spark ignition; 120V 60
Hz, sgl-phase 1 amp; includes
cord and NEMA 5-15P plug.
❑ Electric spark ignition; 208/240V
(50/60Hz) cord and plug is
NOT suppled with this voltage
option.
❑ Stainless stand with solid top
holding shelves,adjustable feet
and casters (locking front).
❑ Removable stainless steel
attachment condiment rail with
universal 1/9 or 1/3 food pan cut
outs (pans supplied by others)
