OVERVIEW

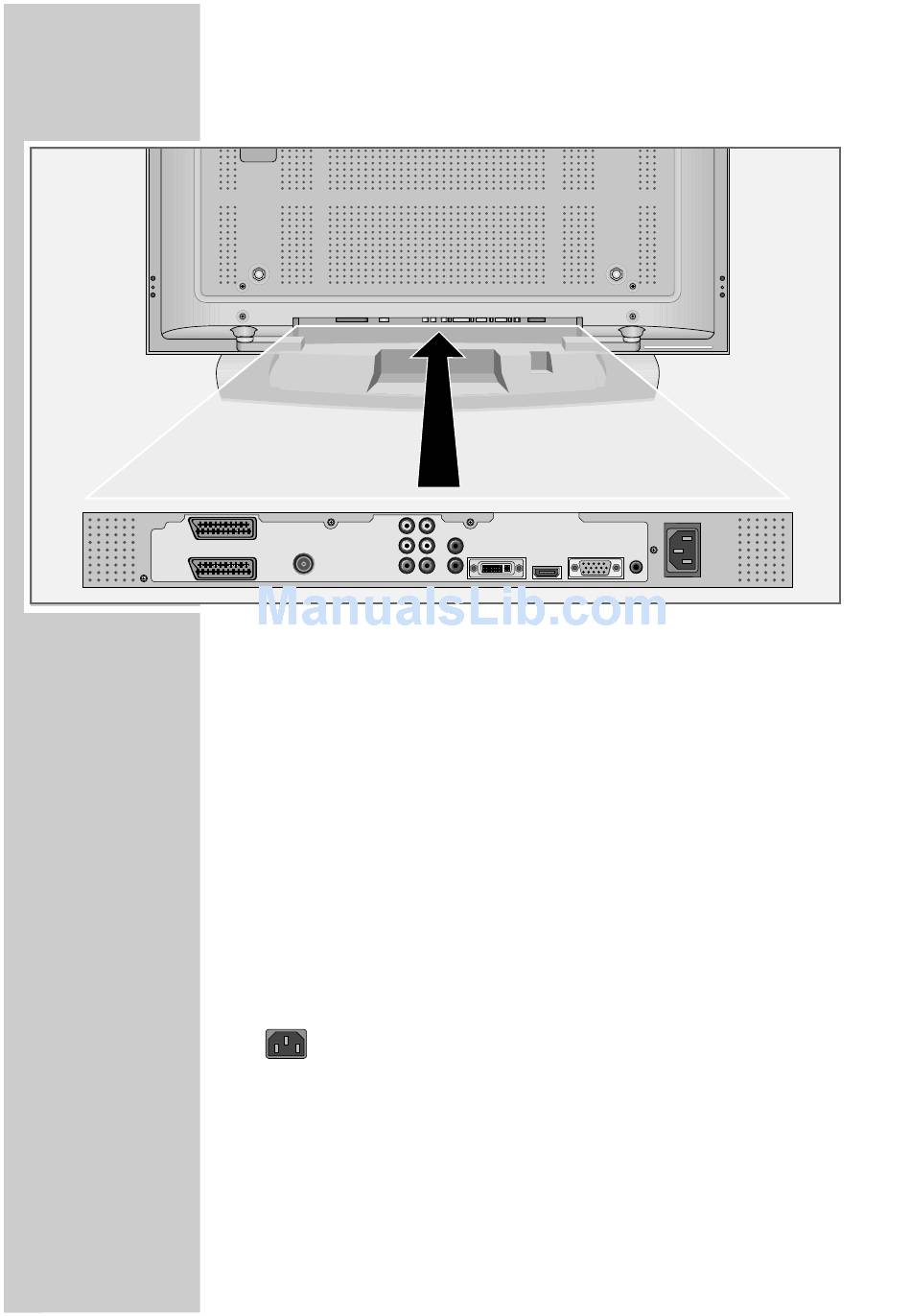

Connections on the television

AV–2
ANT– IN
AV–1
AV-2
AV-1
ANT-IN
AV-Out Video L R
Y Pb/Pr
Y Pb/Pr Audio In L R
DVI-D
HDMI
PC-IN
PC-DVI Audio In
____________________________________________
Y
YPbPr
Audio in
Video
Pb
L
DVI–D
L
Pr
HDMI
R
R
AV–Out YPbPr
Euro/AV socket (FBAS signal).
Euro/AV socket (FBAS signal, RGB signal).
Antenna socket.
Audio and video output.
Video signal input (YUV signal).
Audio signal input (YUV signal).
DVI-D socket, video signal input for PC (DVI).
HDMI socket, audio/video signal input
(HDMI).
VGA socket, video signal input for PC.
Audio signal input for PC.
Socket for the mains cable.
S-VIDEO R AUDIO L VIDEO
PC–DVI
PC–IN
Audio in
