HEARTLAND
®
A P P L I A N C E S
1050 Fountain St. N., Cambridge, Ontario, Canada N3H 4R7
Bus. (519) 650-5775 or Fax (519) 650-3773
Toll Free Phone 1-800-361-1517
Toll Free Fax 1-800-327-5609
Legend

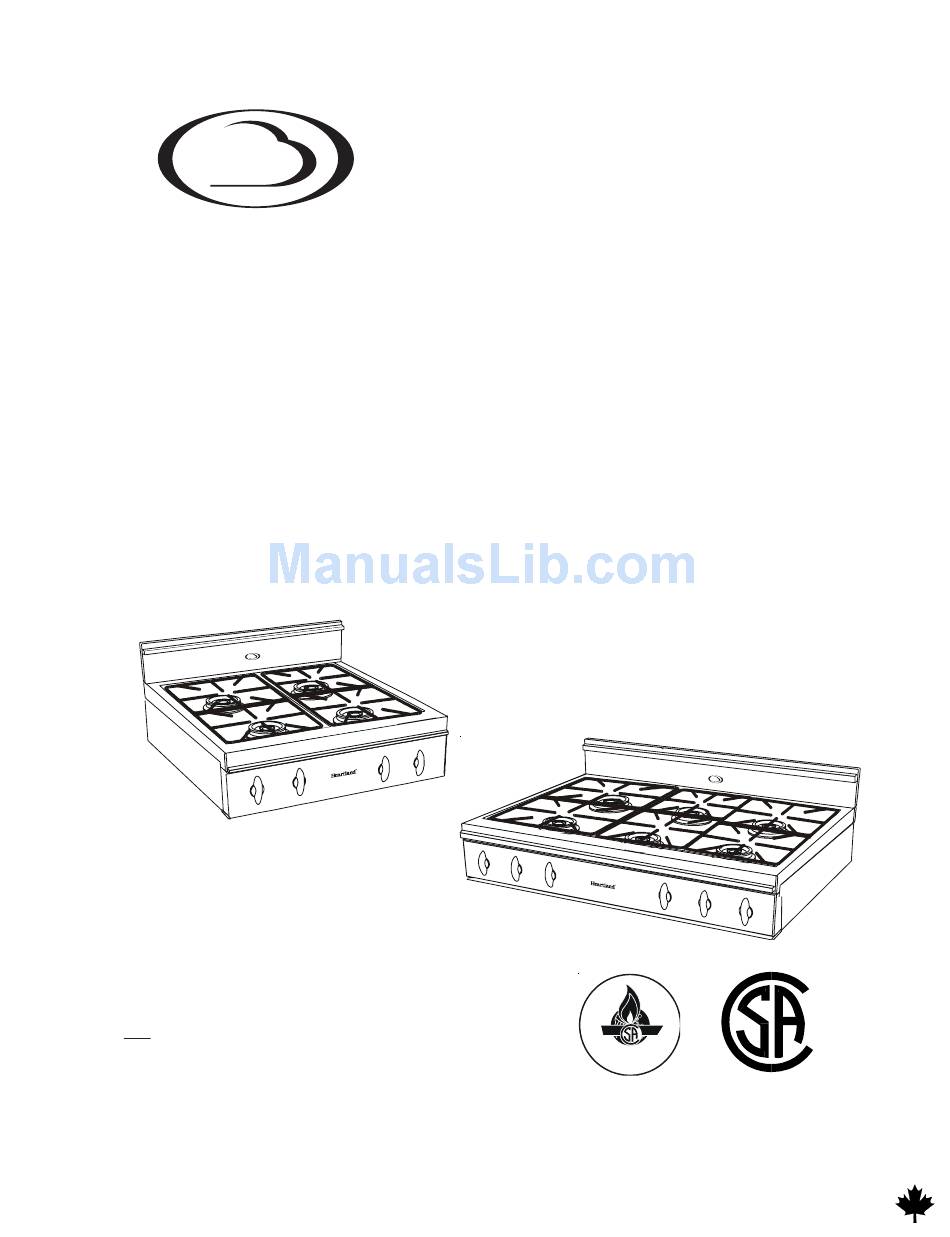

Model 3800-3820
Installation and Operation Guide
30" and 36" Gas Cooktop
36" cooktop
30" cooktop
Note: Please read these instructions
thoroughly before attempting to
install this unit. Failure to follow
installation instructions will result
in costly service calls.
®
Note: This appliance can only be installed in the state
of Massachusetts by a Massachusetts licensed plumber
CERTIFIED
or gasfitter.
C
US
Save these instructions for future use
© 2005 HEARTLAND APPLIANCES INC.
ATTENTION INSTALLER: Leave this manual with appliance
#39380.060408
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Heartland Appliances 300
Summary of Contents for Heartland Appliances 300
- Page 1 ® Note: This appliance can only be installed in the state of Massachusetts by a Massachusetts licensed plumber CERTIFIED or gasfitter. Save these instructions for future use © 2005 HEARTLAND APPLIANCES INC. ATTENTION INSTALLER: Leave this manual with appliance #39380.060408...
- Page 2 Person. 2. Warranty applies to product only in the country in which it was purchased. 3. Heartland is not liable for any claims or damages resulting from any failure of the Cooktop or from service delays beyond their reasonable control.
-
Page 3: Table Of Contents
Conversion Kits and Information ....23 Parts Drawing and Description ......24 Section 7: Safety Guidelines .....25 Important Safety Instructions ......25 Exhaust Hood Safety ........25 Selecting the Proper Cookware ......26 Safety Precautions ........27-28 HEARTLAND ® A P P L I A N C E S... -
Page 4: For Your Safety
WARNING The use of a gas cooking appliance results in the production of heat and moisture in the If the information in this manual is not followed room in which it is installed. Ensure that the exactly, a fire or explosion may result causing kitchen is well ventilated: keep natural ven- property damage, personal injury or death. -
Page 5: Legend Cooktop
Installation and Assembly Safety Instructions These diagrams will outline the required opening for your cooktop and clearances to cupboards, electrical outlets, and gas Please check for any damage that may have outlet locations are also illustrated. Site occurred during shipping. In the unlikely preparation can be made to have these utili- event that you find any shipping damage, ties ready prior to receipt of the cooktop. - Page 6 Installation Diagram- 30” Legend Cooktop Model 3800 Air intake slots on un- derside of control panel must not be obstructed or covered. Figure 1 30” Legend Cooktop 26 5/8” (68cm) 8 1/4” (21cm) 29 3/4” (76 cm) Standard profile:14 1/4”(36.2 cm) (as shown in diagram) low profile: 10 1/8”...
- Page 7 Clearance Diagram- 30” Legend Cooktop Model 3800 An appropriate exhaust hood with a minimum of 450 CFM is required on all 30” Legend cook- tops to ensure adequate and proper ventilation. For superior ventilation we recommend using a 36” hood, however a 30” hood is adequate. Note: Support deck must be able to support a total weight of 4 burner model: 175 lbs...
- Page 8 Installation Diagram- 36” Legend Cooktop Model 3820 Air intake slots on underside of control panel must not be obstructed or covered. Figure 1 36” Legend Cooktop 26 5/8” (68cm) 8 1/4” (21cm) 36” (92cm) Standard profile:14 1/4” (36.2cm) (as shown in diagram) low profile: 10 1/8”...
- Page 9 Clearance Diagram- 36” Legend Cooktop Model 3820 An appropriate exhaust hood with a minimum of 900 CFM is required on all 36” Legend cook- tops to ensure adequate and proper ventilation. For superior ventilation we recommend using a 42” hood, however a 36” hood is adequate. Note: Support deck must be able to support a total weight of Grill model : 200 lbs 6 burner model: 220 lbs...
-
Page 10: Exhaust Hood
Should you wish to install an exhaust hood of your own choice, ensure that the exhaust hood you purchase is the correct size and Gas requirements: 30” and 36” Heartland gas capacity for your Heartland cooktop. Please cooktop models can be operated with either follow the exhaust hood manufacturers instal- natural gas or liquid propane (LP). -
Page 11: Preparing The Cooktop For Installation
Preparing the Cooktop for Assemble the backguard. (See fig. 4) Locate the backguard at the back of the cook- Installation top. Remove screws and backguard. Do not throw these screws away. They are required Carefully remove banding with metal to reinstall the backguard. Line up holes in shears. -
Page 12: Section 2: Cooking Controls
Cooking Controls The cooking controls are located on the front of the cooktop. These controls offer an infinite number of heat settings for ease and accuracy in cooking. They have a range from 15,500 BTU (setting #5) to as low as 450 BTU (setting #1) Refer to page 14 (fig.6) or page 17 (fig.7) for details. -
Page 13: Control Panel Graphic
Control Panel Graphic (fig 6) These illustrations show the control panel layout of each model. 4 burner 6 burner... -
Page 14: Section 3: Burner & Grill Operation
Burner and Grill Operation Small Pot Ring / Trivet Lighting the Top Burners Pot ring support is used when cooking on top Cooktop is equipped with a spark ignition burners while using a small pot. The trivet system that is electrically operated. Pushing fits on any burner. -
Page 15: Section 4: Care & Cleaning
Care and Cleaning Porcelain – Legend Series Keeping it clean The porcelain is very serviceable and simple to clean, but because it is glass, it will not withstand rough handling or abuse. Never place a cold wet cloth on a hot porcelain sur- face. -
Page 16: Surface Burners
Surface Burners Nickel Plated Parts Top burners require little care other than to These may be cleaned with any non abrasive wipe off the head of each burner. If a boil chrome and metal polish or Windex and a soft over occurs, the burner part can be easily cloth. -
Page 17: Section 5: Trouble Shooting
Trouble Shooting Burner Set Up and Adjustment The cooktop was carefully set up and inspect- Check the quality of the flame. The ed at the factory but some final adjustments burners should have a steady, relatively quiet may be necessary once the unit is installed. flame with a ½”... -
Page 18: Power Failure Operation
Should you still require help, see cian. Should you still require help, see the “Reference” section on how to contact the “Reference” section on how to contact the “Reference” section on how to contact Heartland Appliances. Heartland Appliances. Heartland Appliances. - Page 19 Gas Trouble Shooting Chart Problem Cause Remedy Check electrical supply to spark No sparks when any control No power to spark module - module module with voltmeter - replace knob is turned to “light” switch faulty module Check high voltage wires care- No sparks when one or some Re-ignition electrode controlled by fully for loose connections or...
-
Page 20: Section 6: Reference
How to order conversion kits: Kits can be ordered from your dealer or di- rectly from Heartland Appliances. For more information please call our order desk: (fig 11) Legend Griddle Kit #3809 (519) 650-5775 or Fax (519) 650-3773. -
Page 21: Parts Drawing And Description
Parts Drawing & Description (fig 12) 3486 3483 3360 3362 3484 3699 3663 3364 3661 3457 3665 3680 3350 3350 Double cast grate 3364 Grill 3457 Small pot ring 3483 Chrome Control knob 3484 Commercial Knob - Black- W/Screening 3486 Commercial Knob Chrome Bezel 3660 Dual burner inner head D - black... -
Page 22: Section 7: Safety Guidelines
Safety Guidelines For a more comprehensive list of safety guidelines and precautions please refer to Appendix A: Safety Precautions. Important Safety Instructions Exhaust Hood Safety Proper Installation - Be sure your appli- Caution: Do not store items of interest to ance is properly installed and grounded children in cabinet above the cooktop or on by a qualified technician. -
Page 23: Selecting The Proper Cookware
Selecting the Proper Cookware Utensils will affect the overall safety and Use utensils with tight fitting lids to performance of cooktop cooking. It is impor- retain heat, odors, and steam. Lids also tant to select them carefully. An improperly enable food to be prepared with less selected utensil will not cook efficiently or water, thereby retaining the vitamin evenly. -
Page 24: Safety Precautions
Safety Precautions • Set the burner control so that the flame • Foods for frying should be as dry as pos- heats only the bottom of the pan and does sible. Frost on frozen food or moisture on not extend beyond the bottom of the pan. fresh foods can cause hot fat to bubble up and Excessive flame is hazardous. - Page 25 • Grease is flammable. Let hot grease cool before attempting to handle it. Avoid letting grease deposits collect in the container under the cooktop burners or the grill. Clean these areas after each use or boilover. • For proper lighting and performance of the burners keep the burner ports clean.
- Page 26 1900 (Oval)- Wood burning cookstove-old fashioned cooking available in two models 2600 (SweetHeart)- Wood burning cookstove-same as the Oval, in a smaller version! For more information please call your dealer, or call Heartland Appliances: Model 1902 Phone 1-800-361-1517 or Fax 1-800-327-5609...
